Stump Grinder - 25" Hydraulic Swing Model
Tackles large stumps with ease.

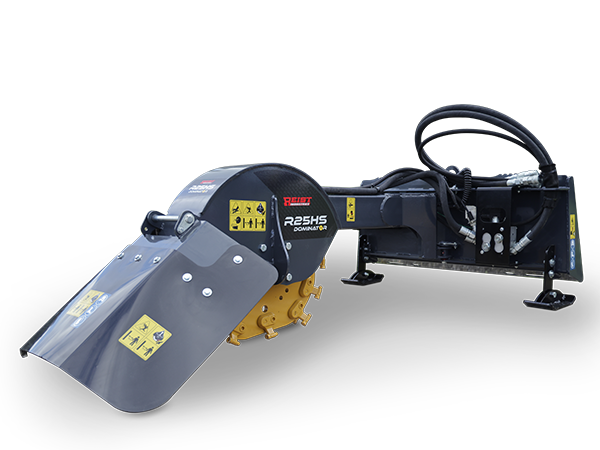

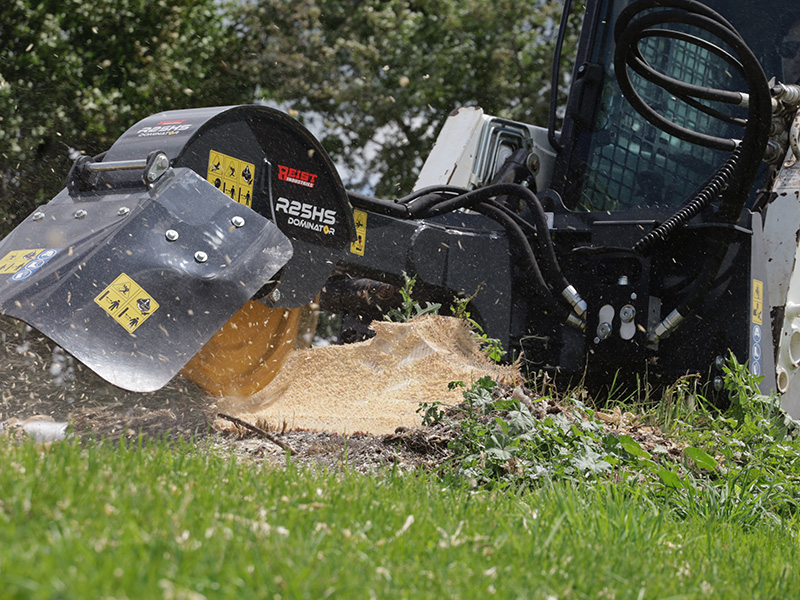

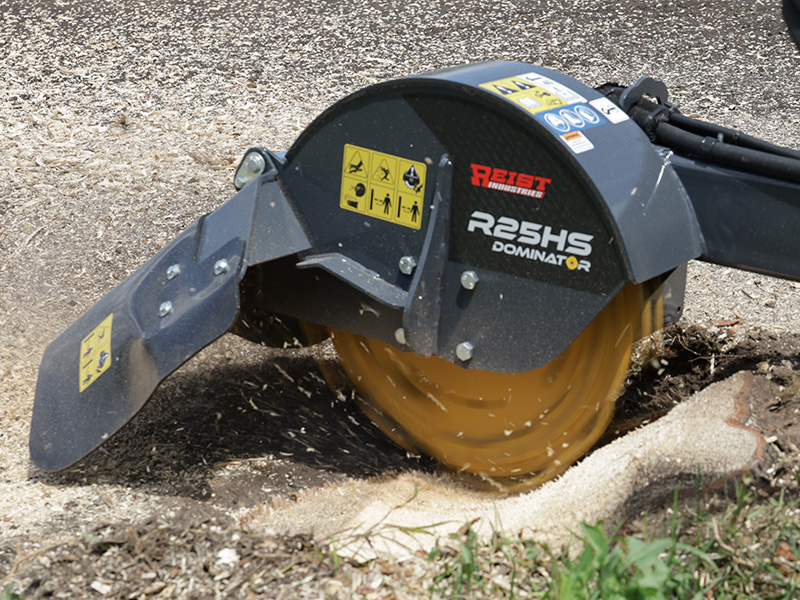

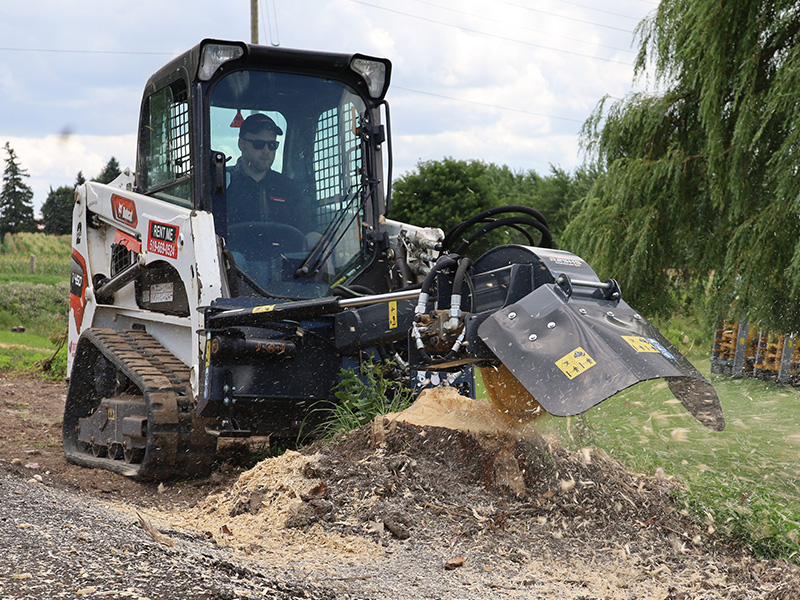

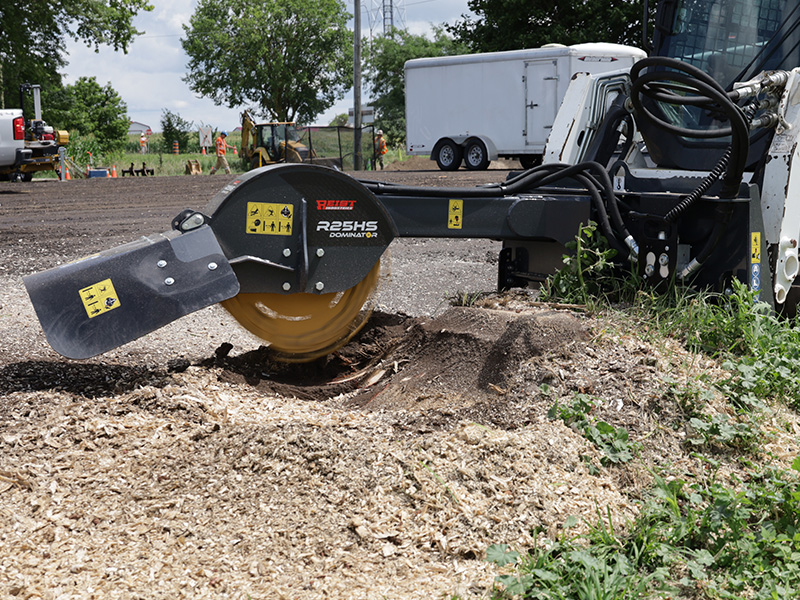

Get into the swing of things with the Dominator R25HS. This swing type grinder has 40.25" of travel. The adjustable stabilizing feet ensure that the unit is safely planted to providing predictable movement.
This hydraulic direct drive stump grinder features a 25" rotor measuring 3/4" thick. When equipped with the 90CC Bent Axis Piston Motor, the R25HD can handle 27-38 GPM to power through the toughest stumps.
Note: A wiring harness is required.
- 25" Rotor
- 3/4" Thick rotor
- 18 Teeth
- 55° Swing angle (40.25” of travel)
- Adjustable stabilizing feet
- Optional Hose protector shield available
| Model Specs. | R25HSSK1620G | R25HSSK2026G | R25HSSK2738P |
|---|---|---|---|
| Style | Swing | Swing | Swing |
| Swing Arc | 55° | 55° | 55° |
| Rotor Size | 25" | 25" | 25" |
| Tooth Construction | Carbide Bolt into Pocket (Indexable 3x) | ||
| Number of teeth | 18 | 18 | 18 |
| Bi-Directional Wheel | Optional | Optional | Optional |
| Cutting Wheel Speed | 1210-1510 RPM | 1200-1560 RPM | 1135-1590 RPM |
| Cutting Depth (below grade) | 7" | 7" | 7" |
| Cutting Depth Maximum (per pass) | 2.25" | 2.25" | 2.25" |
| Hitch Type | Universal Skid Steer | Universal Skid Steer | Universal Skid Steer |
| Hydraulic Remotes Required | 1 | 1 | 1 |
| Flow Controlled | Yes | Yes | No |
| Hydraulic Motor | 50CC Gear Motor | 63CC Gear Motor | 90CC Bent Axis Piston Motor |
| Case Drain Req. | Yes | Yes | Yes |
| GPM | 16-20 GPM | 20-26 GPM | 27-38 GPM |
| Weight | 670 lbs. | 670 lbs. | 670 lbs. |
| Length | 83" | 83" | 83" |
| Width | 47" | 47" | 47" |
Features

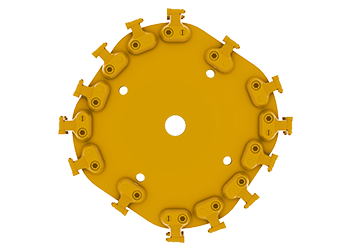

Rotor
The uniquely shaped rotor is flange mounted to the drive line. This allows for easy removal of the rotor should it be required for maintenance.
Carbide Teeth
Dominator stump grinders use Wearsharp® teeth. The round design of the tooth and a triangular base allows it to be indexed 3 times for extended life.

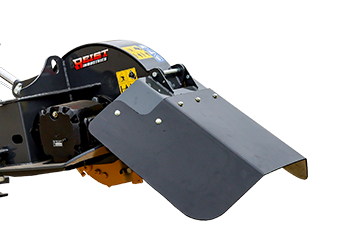

HDPE Deflector
Made with high density polyethylene, the deflector stands up to abuse regardless of the air temperature all while containing debris from the stump.
Options
Shield
- Hose protector shield
- Optional shield increases protection to hose and motor assembly.
Debris Screen
- 10' wide by 5' tall
- Includes 4 posts with integrated ground spikes
- Used in areas where debris from the stump grinder needs to be contained
