MultiGroomer Pony

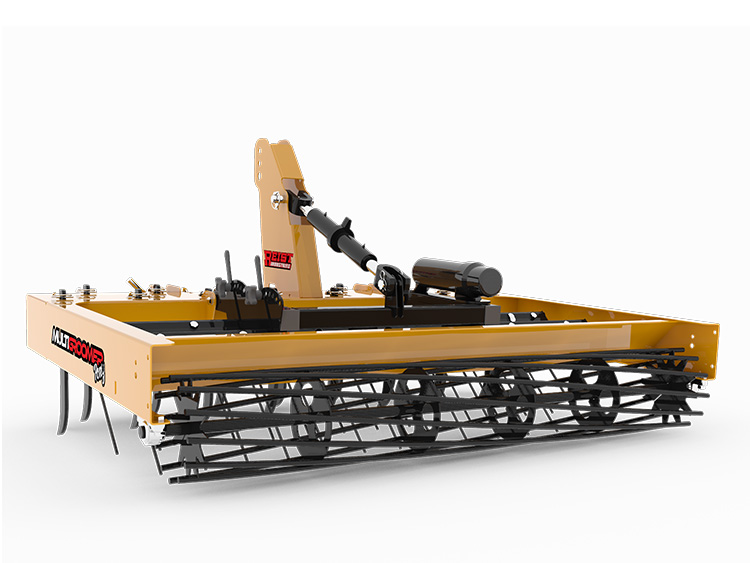

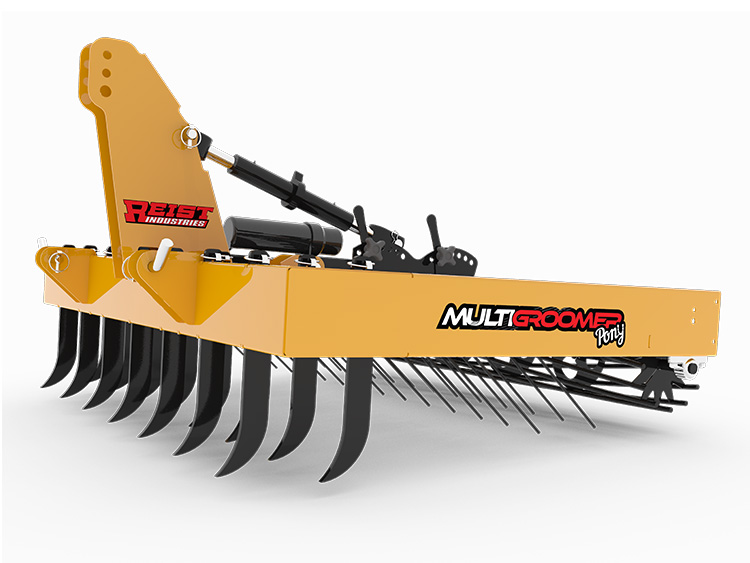

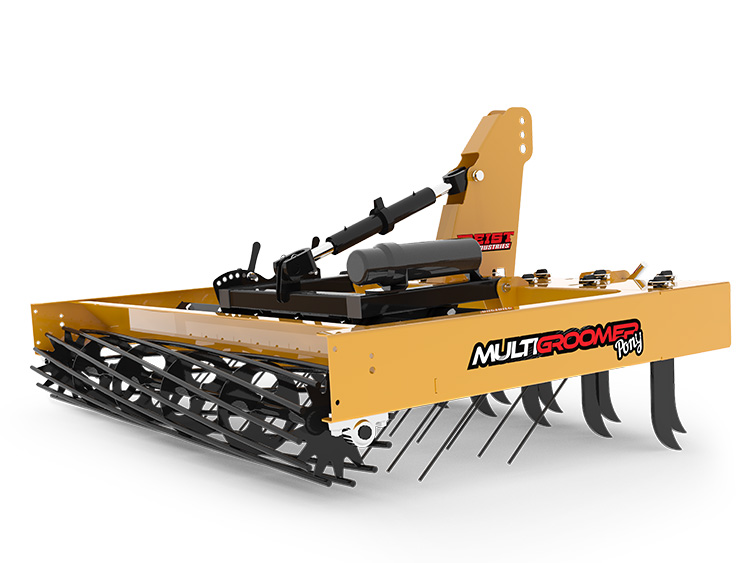

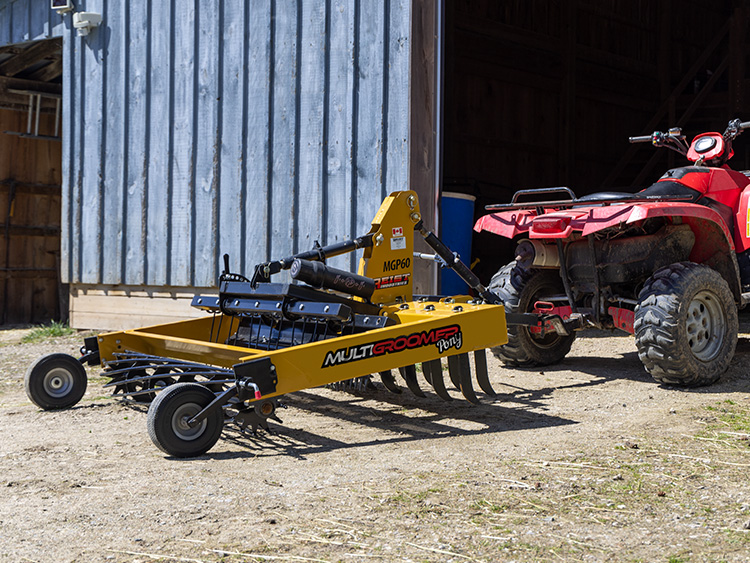

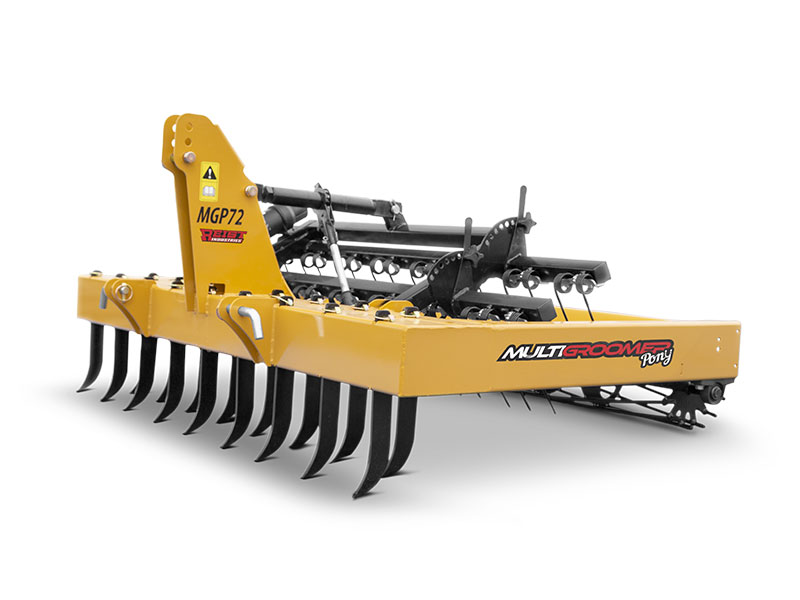

The Multi-Groomer Pony is designed to tow behind UTV’s or mount to 3PH on small utility tractors. It renovates and conditions conventional and synthetic footings on horse-riding arenas. The unique design features side rub rails and an aggressive double row of ripper teeth offset with 4" spacing. The rear two rows of spring tines are offset and the pitch and height can be adjusted with a manual ratchet jack or an optional hydraulic cylinder. The spring tines give an ultimate mixing effect of the surface. The rear bar roller pulverizes and packs to the desired density, leaving an attractive patterned finish.
- Heavy duty side rub rails
- Double row of ripper teeth are offset and have a spacing of 4” as well as a working depth of up to 4”
- The rear two rows of spring tines are offset and the pitch and height can be adjusted with a manual ratchet rack or the optional hydraulic cylinder
- The rear bar roller pulverizes and packs to the desired density
Multi-Groomer PONY | MGP48 | MGP60 | MGP72 | MGP84 |
---|---|---|---|---|
Dimensions (WLH) | 46 x 51 x 34” | 58 x 51 x 34” | 73 x 51 x 34” | 85 x 51 x 34” |
Working Width | 48” | 60” | 72” | 84” |
Working Depth | 4” | 4” | 4” | 4” |
Hitch | CAT I | CAT I | CAT I | CAT I |
Weight (Ibs) | 330 | 385 | 475 | 550 |
Tires | 16.5 x 6.5-8 | 16.5 x 6.5-8 | 20.5 x 8.0-10 | 20.5 x 8.0-10 |
# of Ripper Teeth | 11 | 15 | 17 | 19 |
Rear Bar Roller (Dia.) | 8.75” | 8.75” | 8.75” | 8.75” |
HP Required | 25 MAX | 25 MAX | 35 MAX | 35 MAX |
Options

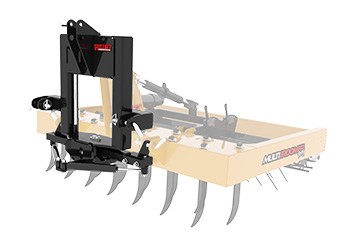

Swivel Hitch CAT I
- Turns 22 degrees each way
- Unique self-straightening feature when 3PH is raised
- Lock pin for hard and tough footings

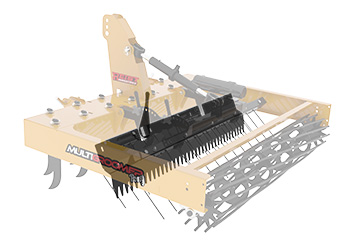

Leveling Blade
- Levels sand footing

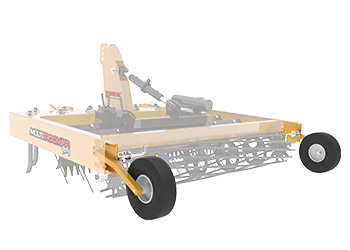

Rear Wheel Kit
- Drop and lock wheels down manually to transport

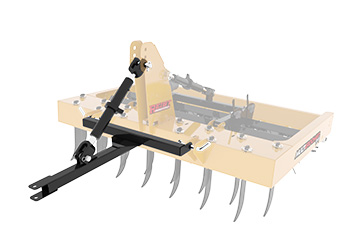

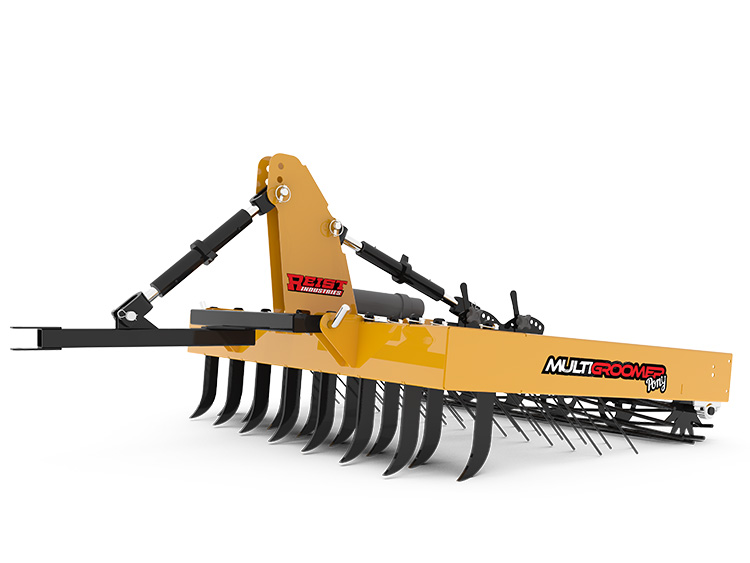

Tow Hitch
- Add tow hitch to tow behind tractor or appropriate vehicle
