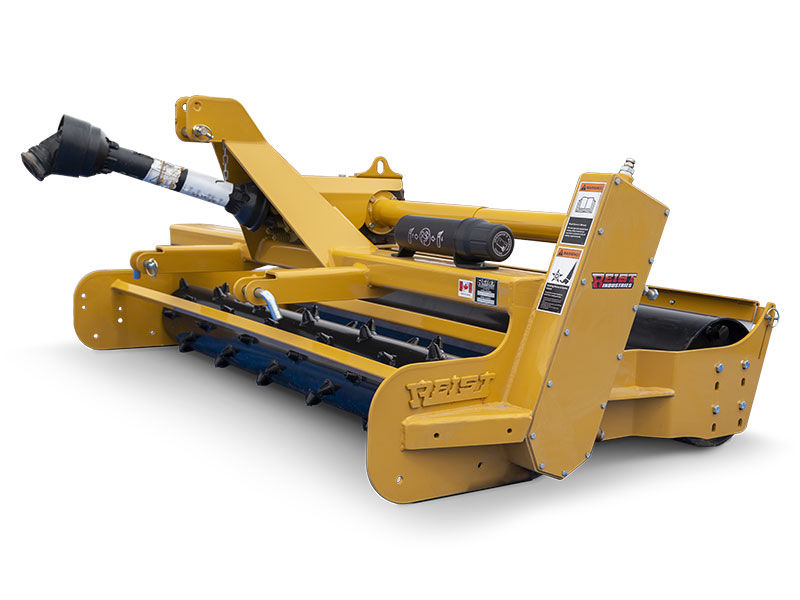

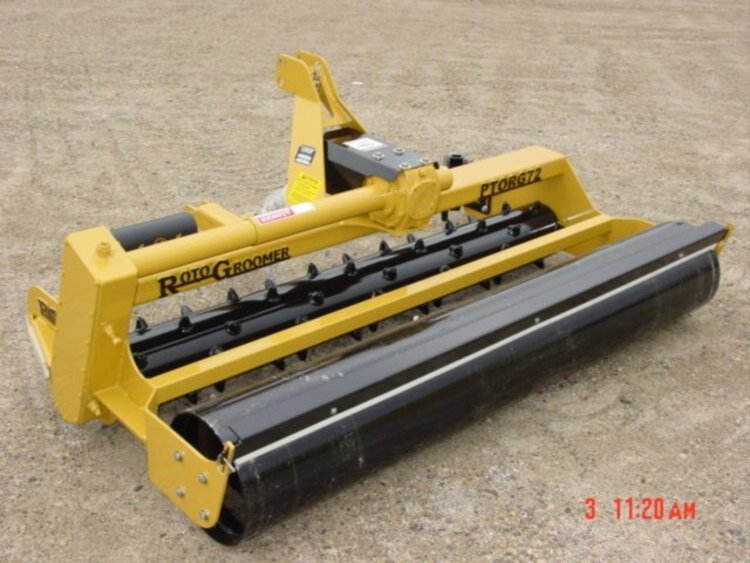

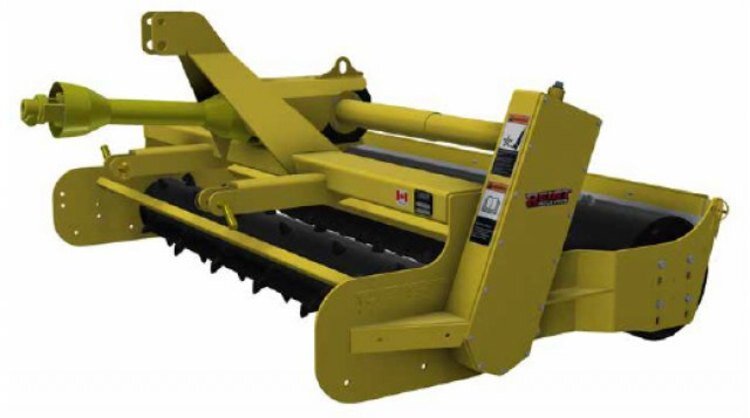

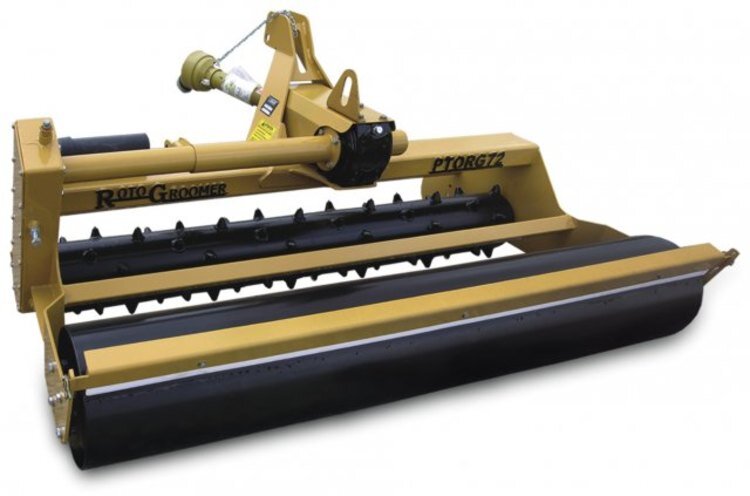

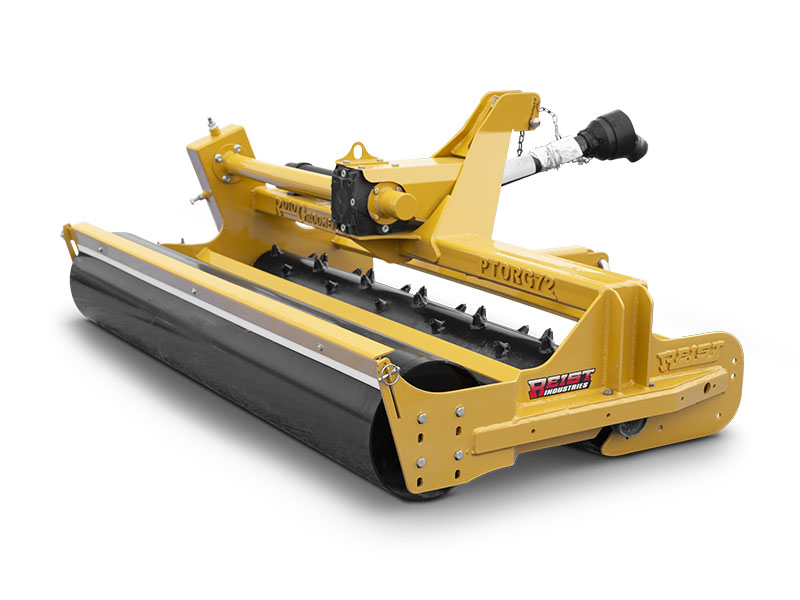

RotoGroomer

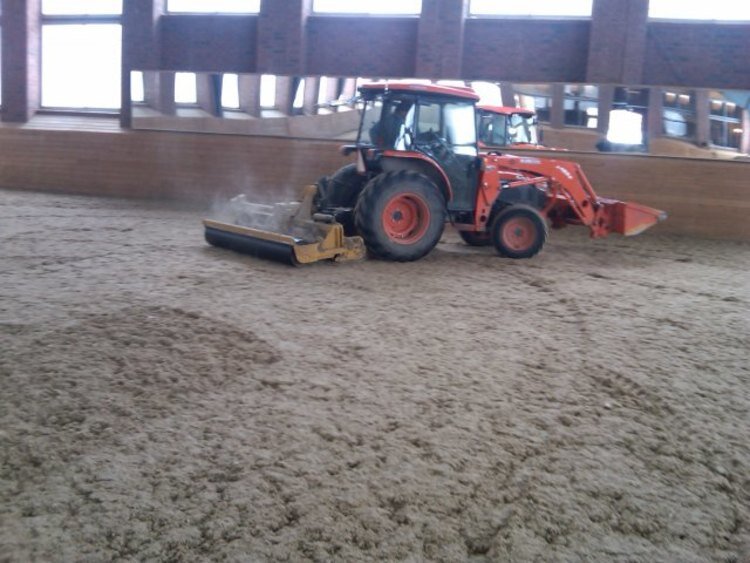

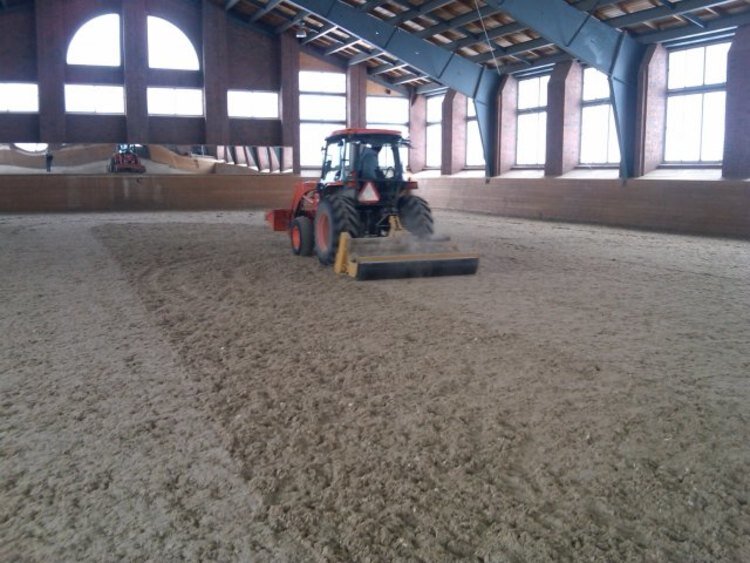

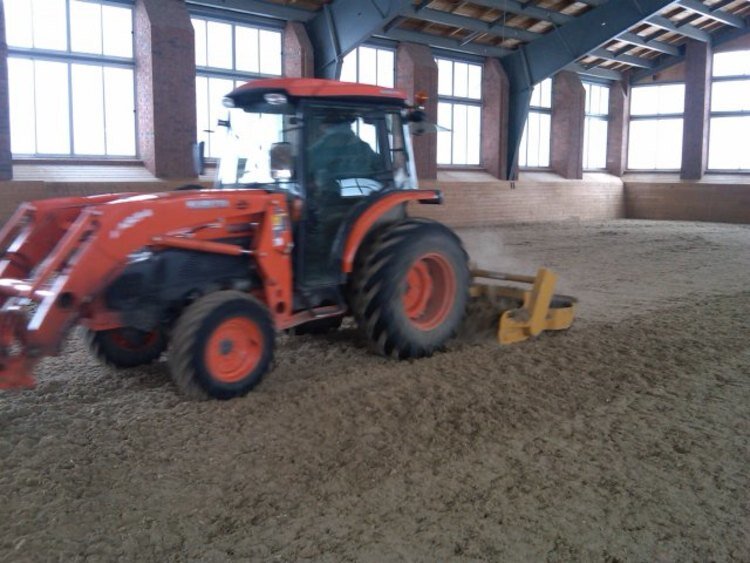

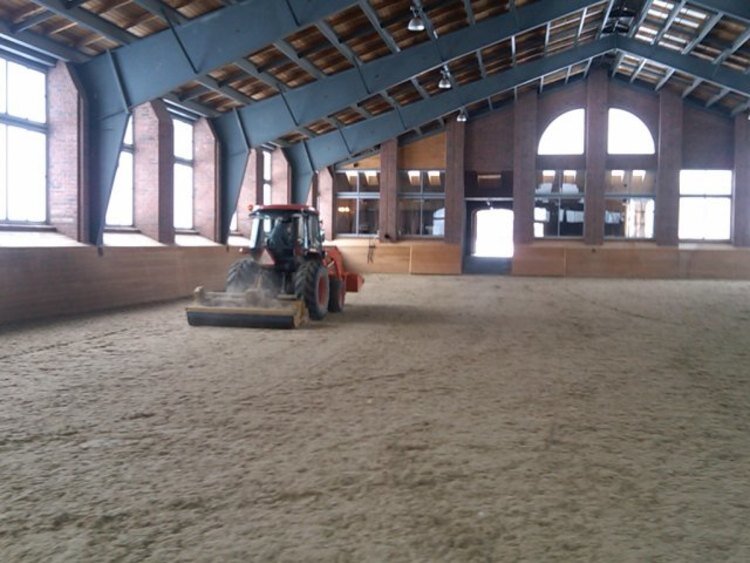

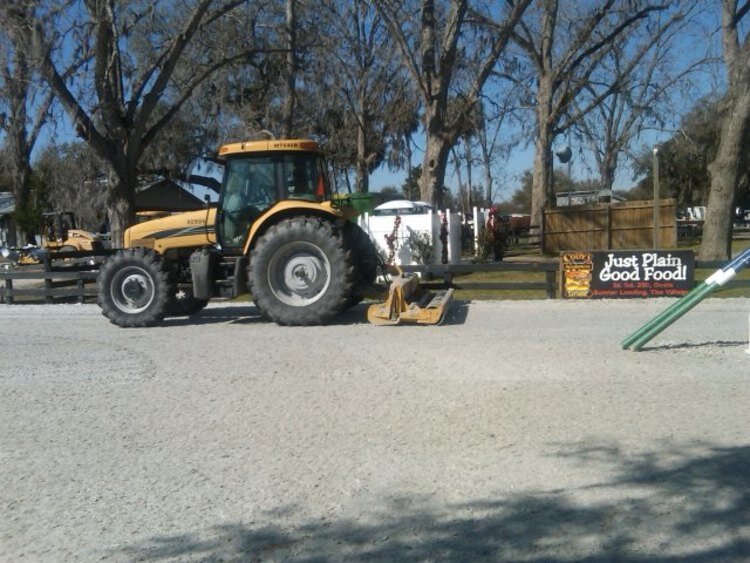

The PTO-driven RotoGroomer renovates and conditions conventional and synthetic footings with high wax and fiber materials in horse-riding arenas. It is the only solution on those footings when a conventional drag will bunch or plug up.

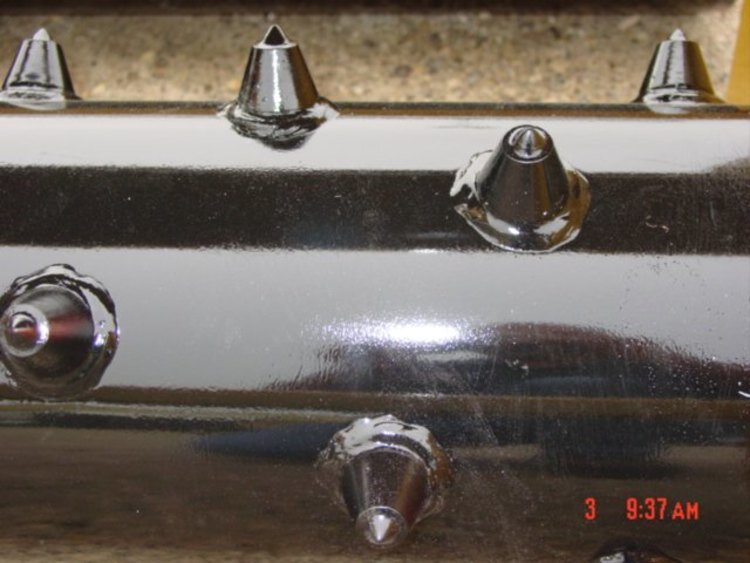

  • Carbide toothed single direction drive rotor
  • P.T.O. Driven 540 RPM with slip clutch protection

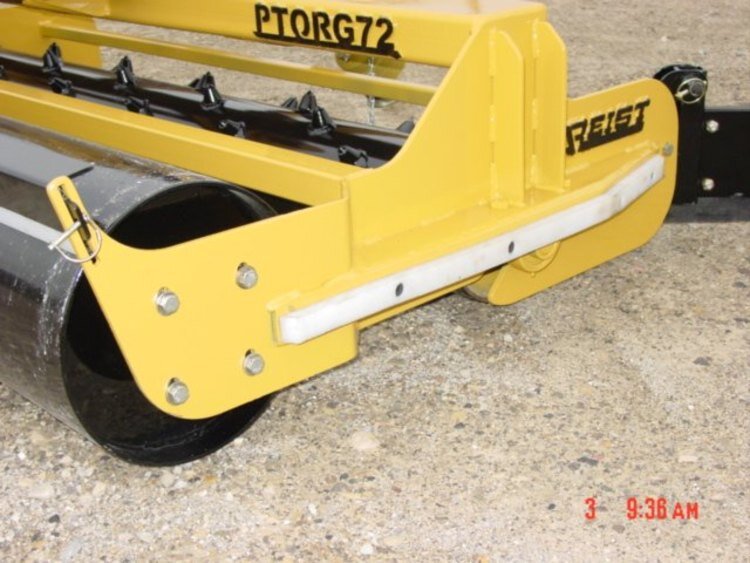

  • 12" rear smooth packing roll with self-adjusting scraper
  • Water can be added to rear packer roll for extra weight

RotoGroomer PTORG72 PTORG96
HP Required 20-80 40-80
Working Width 72" 96"
Height 30” 30”
Weight (lbs) 800 1,000
Hitch CAT I CAT II
Drum Speed (RPM) 200 200

Options

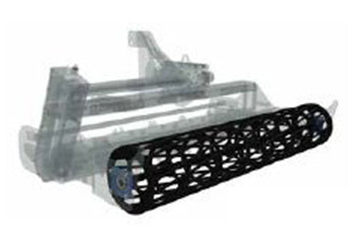

Pulverizer Roller

  • Replaces smooth packer roller for a patterned finish

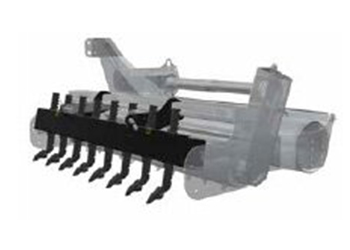

Ripper Bar

  • Ripper bar add on for the RotoGroomer to rip up ground and mix footing material
  • Ripper height adjusts in 1" increments
  • Teeth can be spaced at 8, 12 & 16"

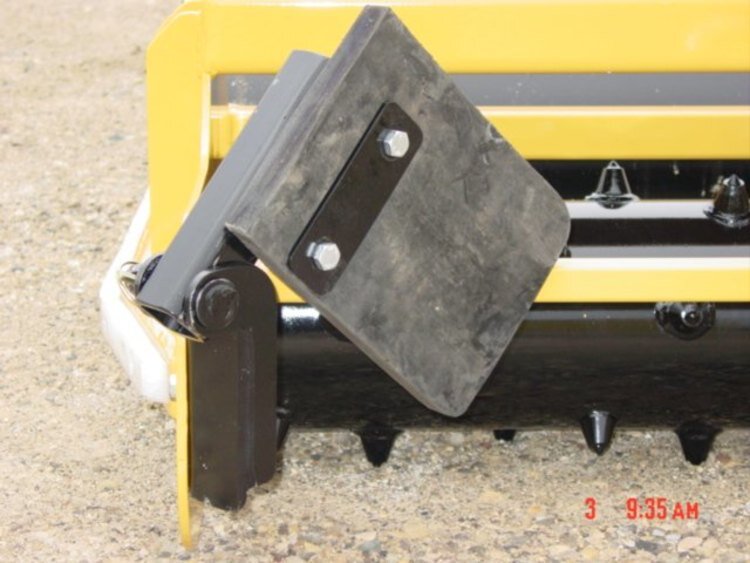

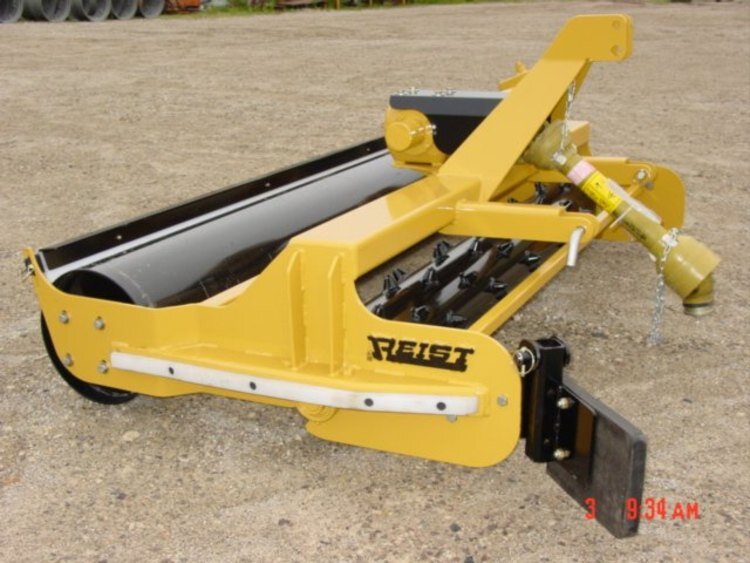

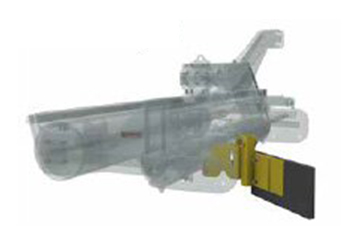

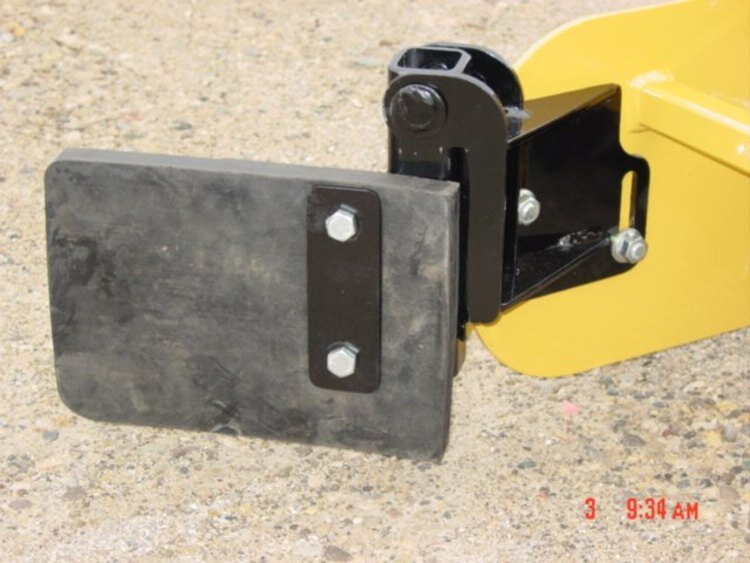

Board Scraper

  • Get a nice finish from your machine even close to boards of arenas with the board scraper attachment
  • Thick rubber to not damage boards

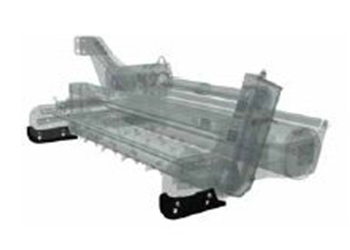

Floating Spill Shield Kit

  • Stop overflow spillage with this shield kit

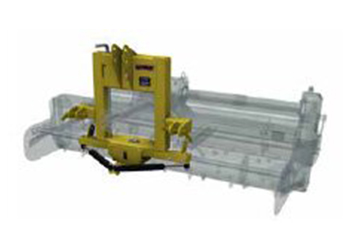

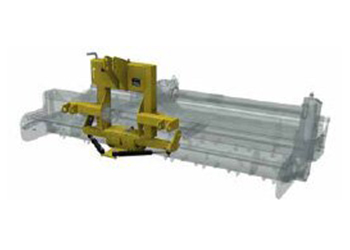

CAT I Swivel Htich

  • Turns 22 degrees each way
  • Unique self-straightening feature when 3PH is raised
  • Lock pin for hard and tough footings

CAT II Swivel Hitch

  • Turns 22 degrees each way
  • Unique self-straightening feature when 3PH is raised
  • Lock pin for hard and tough footings
