Augers and Accessories

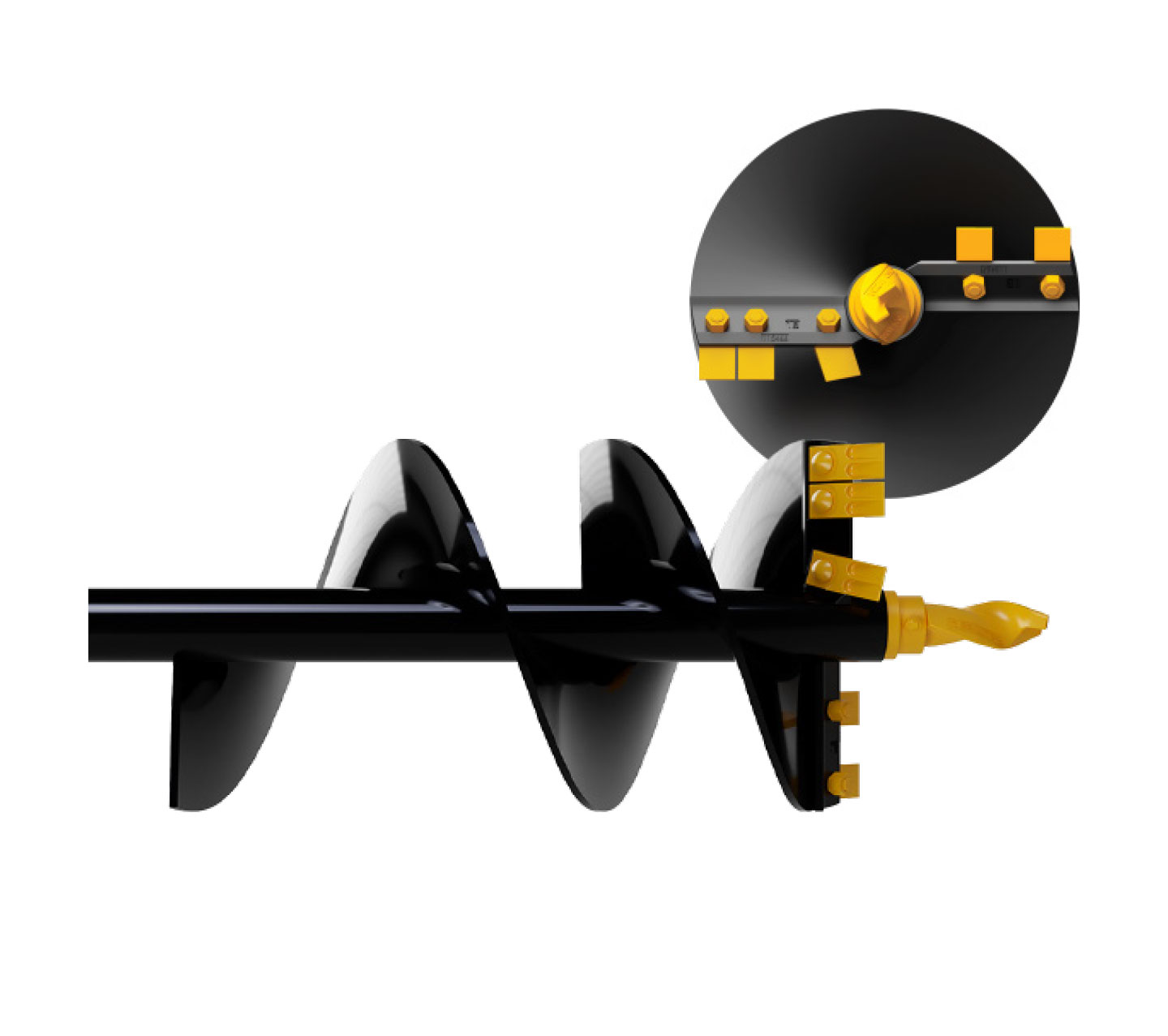

Dirt Augers

  • Suited for drilling in displaceable soils such as sand, silt, or clay.
  • Features a hardened cast boring
  • Bolt-on tooth design
  • 48" length
  • Semi-Double flight design
  • 5/16" Flighting
  • 3.5" Diameter Pilot

Model Shaft Diameter Length
DA06200H 2" Hex 6 48"
DA09200H 2" Hex 9 48"
DA12200H 2" Hex 12 48"
D156200H 2" Hex 15 48"
DA18200H 2" Hex 18 48"
DA24200H 2" Hex 24 48"
DA30200H 2" Hex 30 48"
DA36200H 2" Hex 36 48"

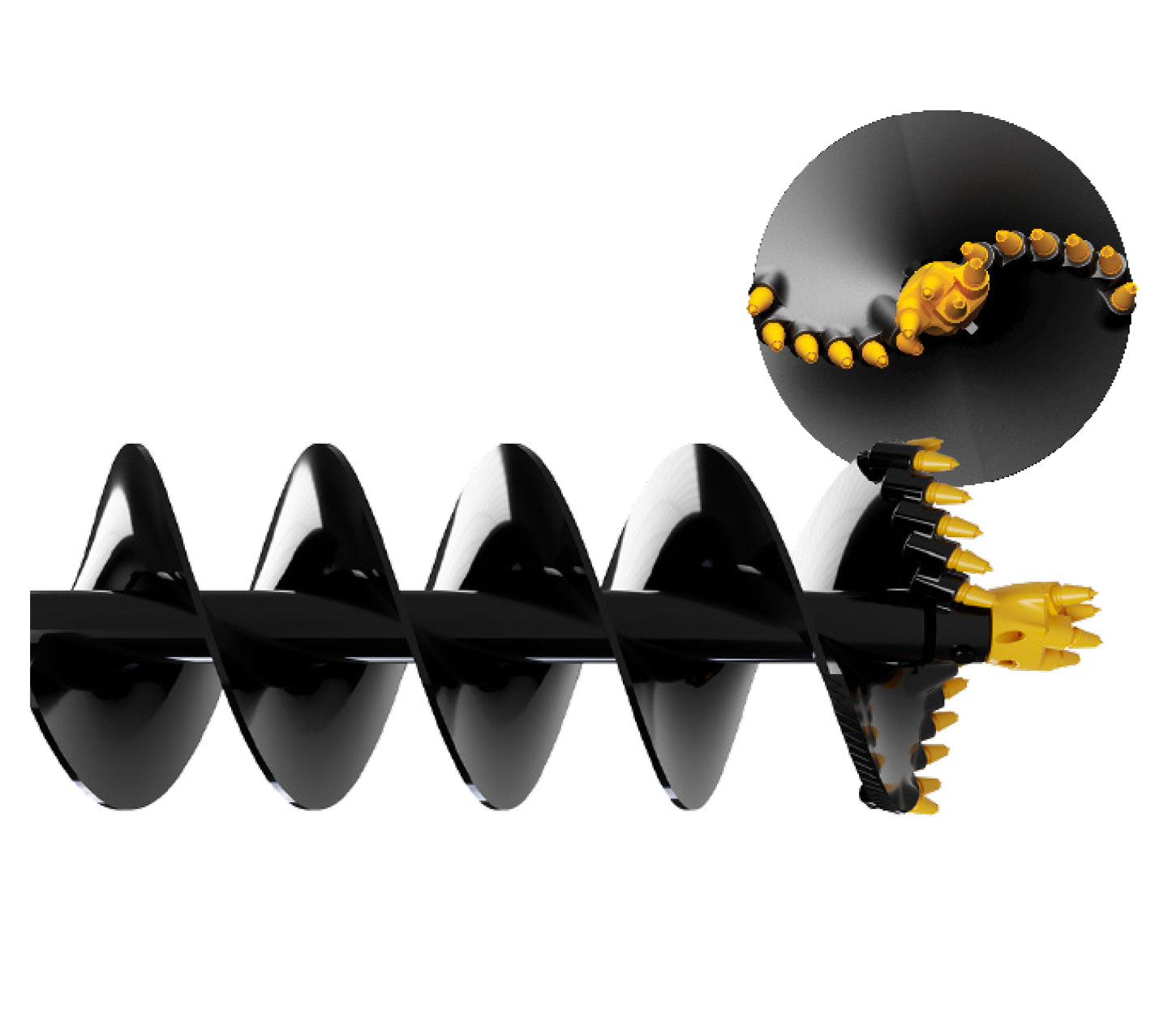

Rock Augers

  • Suited for cutting through tough cobble, boulders, fractured, or solid rock
  • Bullet teeth arranged at optimal cutting angles
  • Bolt-on tooth design
  • 48" length
  • Semi-Double flight design
  • 5/16" Flighting
  • 3.5" Diameter Pilot

Model Shaft Diameter Length
RA06200H 2" Hex 6 48"
RA09200H 2" Hex 9 48"
RA12200H 2" Hex 12 48"
R156200H 2" Hex 15 48"
RA18200H 2" Hex 18 48"
RA24200H 2" Hex 24 48"

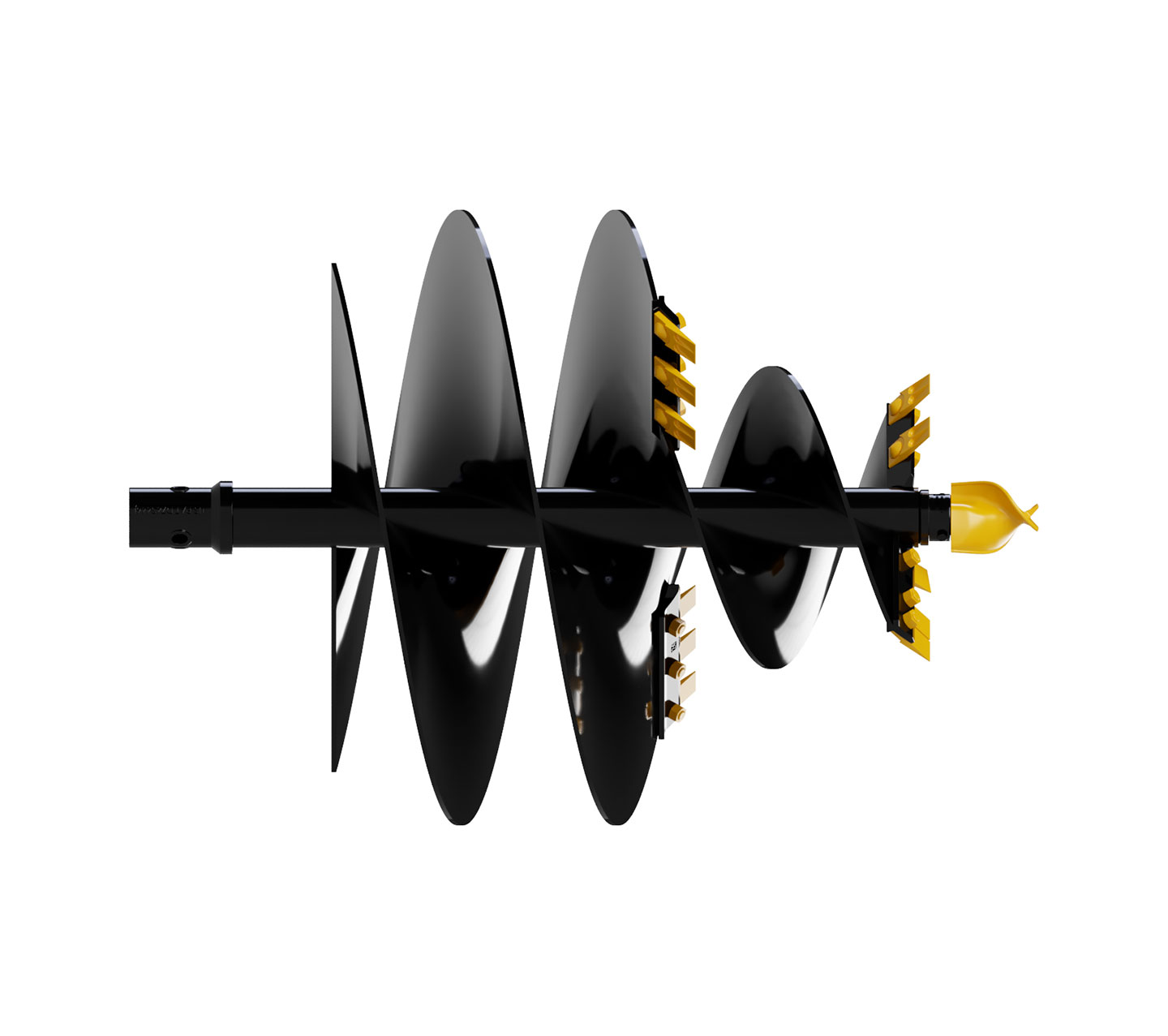

Tree Shrub Augers

  • Suited for drilling in displaceable soils such as sand, silt, or clay.
  • Features a hardened cast boring
  • Bolt-on tooth design
  • 48" length
  • 5/16" Flighting
  • 3.5" Diameter Pilot

Model Shaft Diameter Length
TA18200H 2" Hex 18 48"
TA24200H 2" Hex 24 48"
TA30200H 2" Hex 30 48"
TA36200H 2" Hex 36 48"

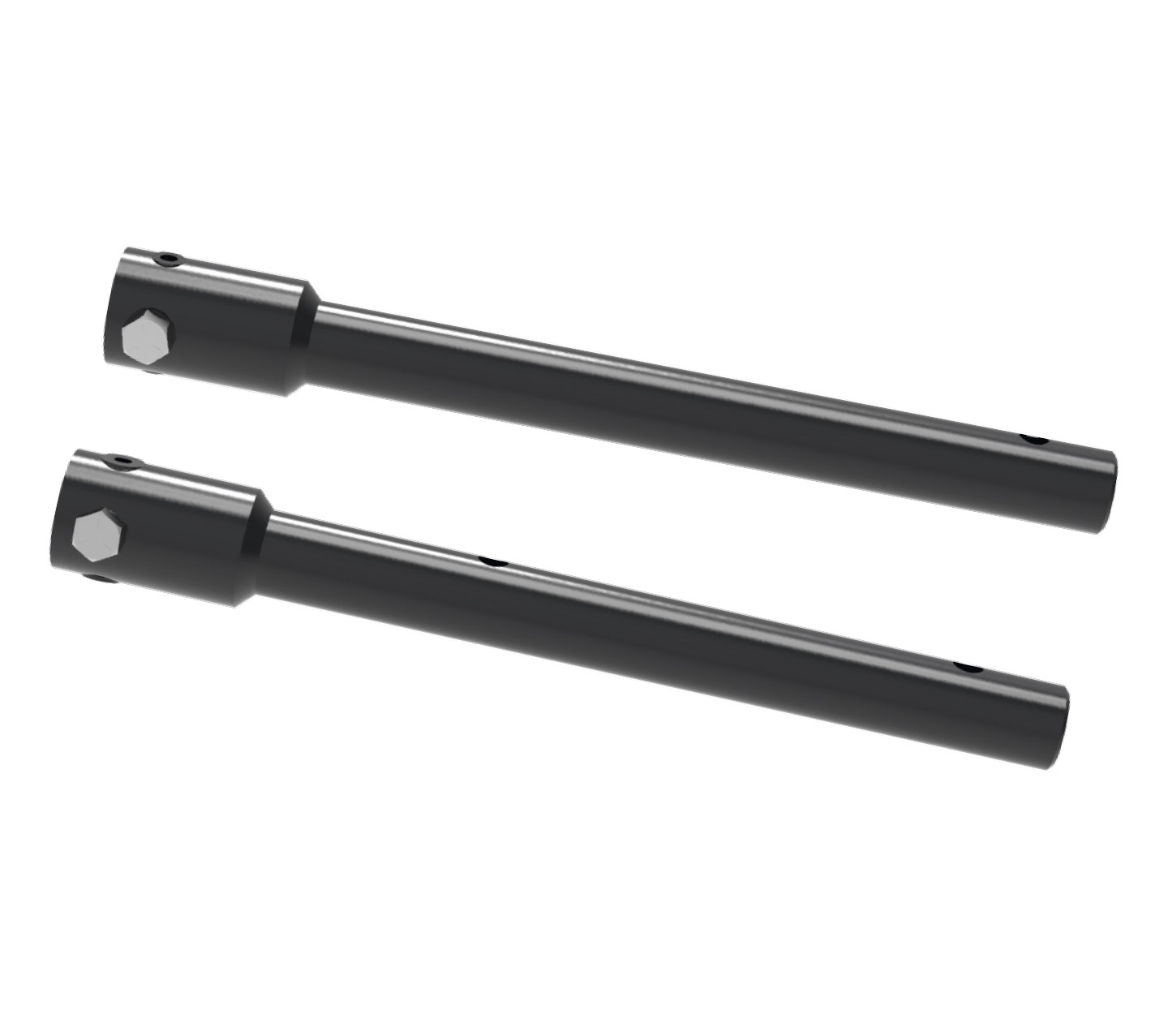

Extensions

Extensions Description
EHF2-24 Hex 2" x 2 Foot extension (fixed)
EHF2-36 Hex 2" x 3 Foot extension (fixed)
EHF2-48 Hex 2" x 4 Foot extension (fixed)
EHF2-60 Hex 2" x 5 Foot extension (fixed)
EHF2-72 Hex 2" x 6 Foot extension (fixed)
EH2-24 Hex 2" x 2 Foot extension (adjustable*)
EH2-36 Hex 2" x 3 Foot extension (adjustable*)
EH2-48 Hex 2" x 4 Foot extension (adjustable*)
EH2-60 Hex 2" x 5 Foot extension (adjustable*)
EH2-72 Hex 2" x 6 Foot extension (adjustable*)

* Adjustable in 12" increments with pin locations every 12" across the length of the shaft.

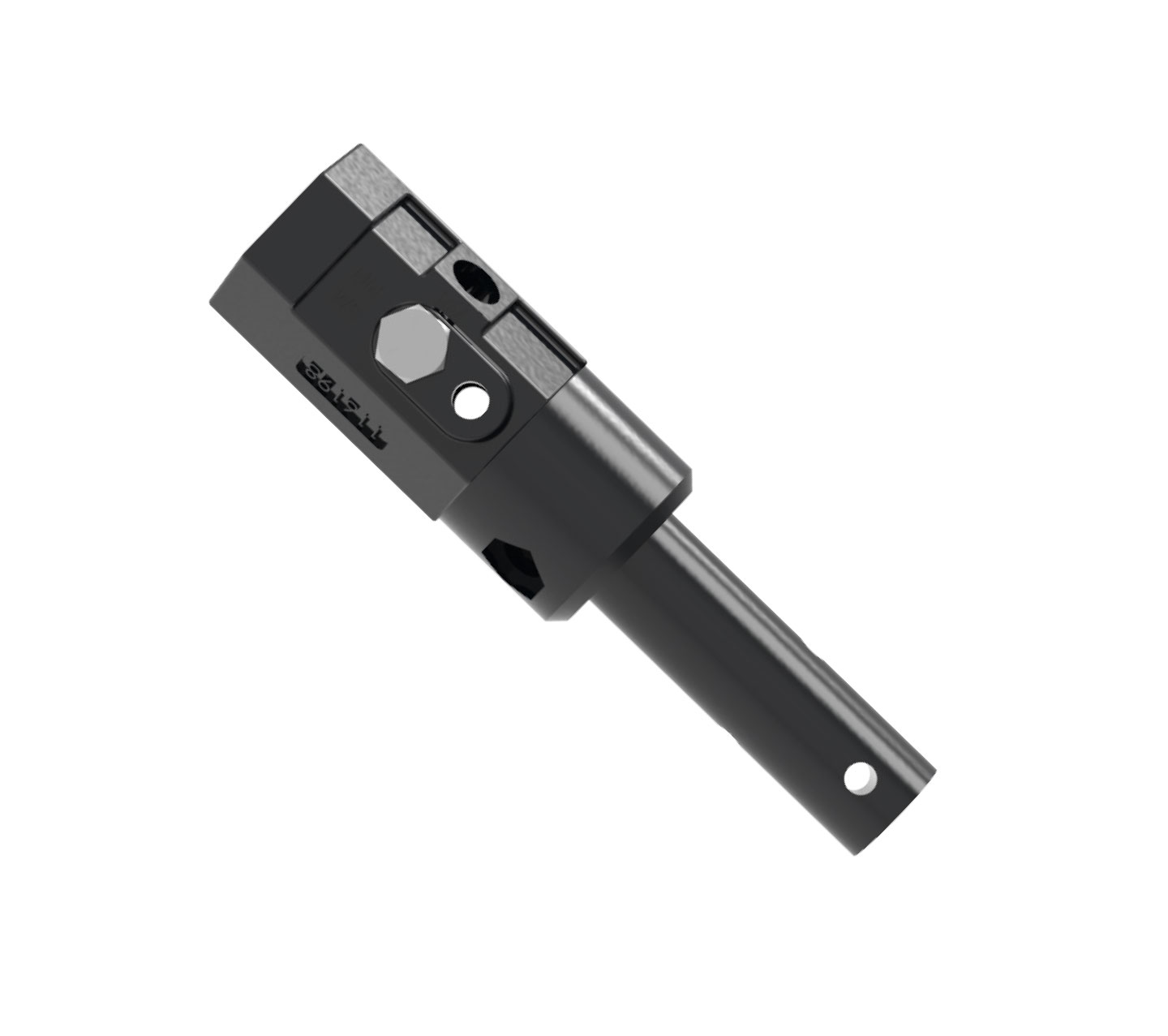

Adapters

Adapters Description
HR200-20 Adapter 2" Hex - 2" Round
HS200-20 Adapter 2" Hex - 2" Square
HH25-20 Adapter 2.5" Hex - 2" Hex
RR200-25 Adapter 2" Round - 2.5" Round
RH200-20 Adapter 2" Round - 2" Hex
HR200-25 Adapter 2" Hex - 2.5" Round
HH25-20WC Adapter 2.5" Hex - 2" Hex
RR2916-20 Adapter 2 9/16" - 2" Round
RH2916-20 Adapter 2 9/16" - 2" Hex
HH258-20WC Adapter 2 5/8" Hex - 2" Hex
