Earth Boar AH Series

The Earth Boar is a robust compact planetary auger drive. It's available for skid steer loaders, and tractor front end loads with flow ranges between 10-35 GPM. The AS series are ideal for farm, ranch, construction, and rental applications, while the AH model has higher torque output and has a field serviceable output shaft.


  • Robust compact planetary auger drive
  • Mounts available for skid steer loaders, and tractor front end loaders
  • Flow ranges between 10-35 GPM
  • The AH model has higher torque output and has a field serviceable output shaft.

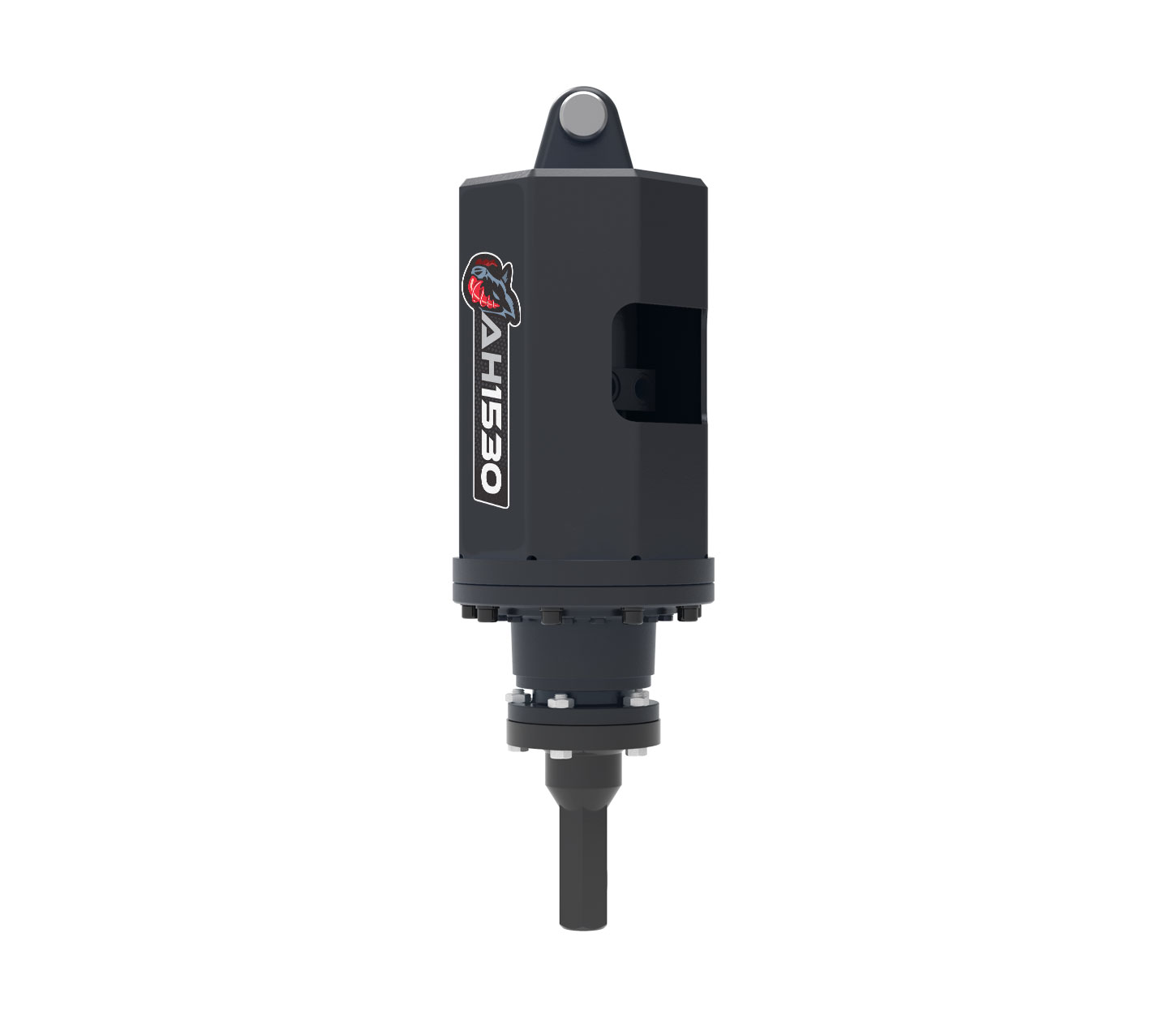

Specifications AH-1530
Dimensions (Drive only) 11" x 11" x 35"
Weight Drive 185 lbs.
Output Shaft Size 2" Hex
Max. Dia. Dirt 36"
Max. Dia. Rock 36"
Gear Train Type Planetary
Min./Max. Flow 15-30 GPM
Max. Continuous PSI 3000 PSI
Max Intermittent PSI 3500 PSI
Field Serviceable Yes
Limited Warranty 5 Years

Mount Parts Description
USH100 Skid Steer Quick Attach Frame
UWH100 Universal Weld-On Mount
123912 Swivel Casting
H-KIT-96F Two 1/2" hoses 96" long , flat face couplers
H-KIT-96 Two 1/2" hoses 96" long, 10MB
