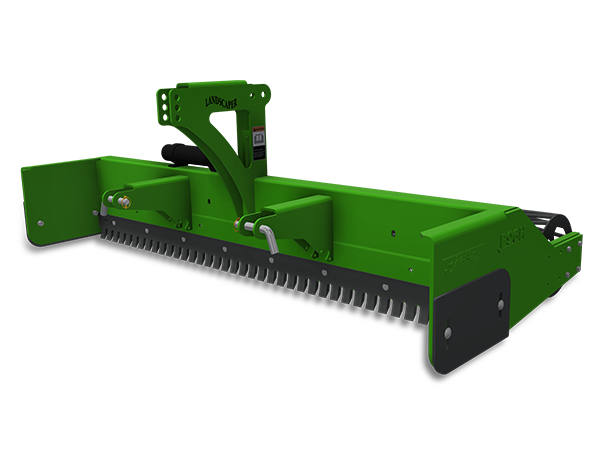

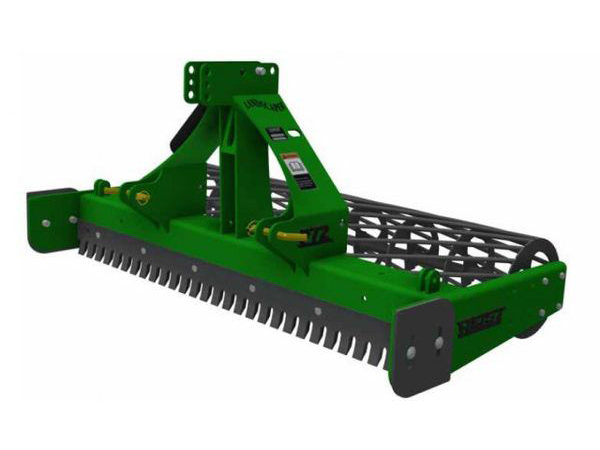

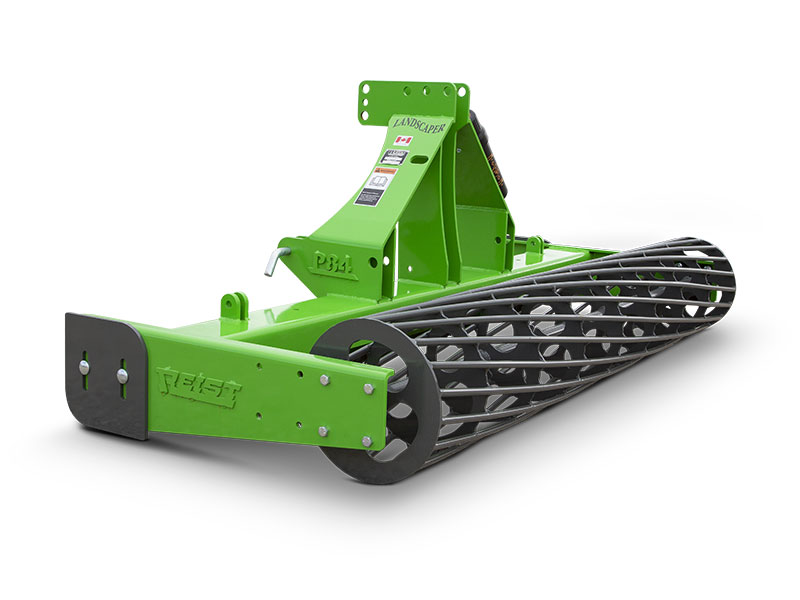

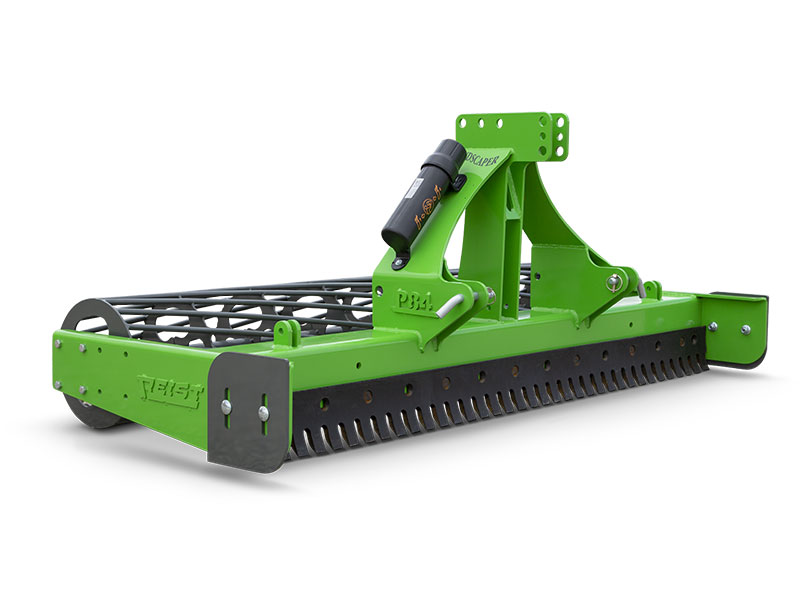

Landscaper (CAT I)
Save Time and Money

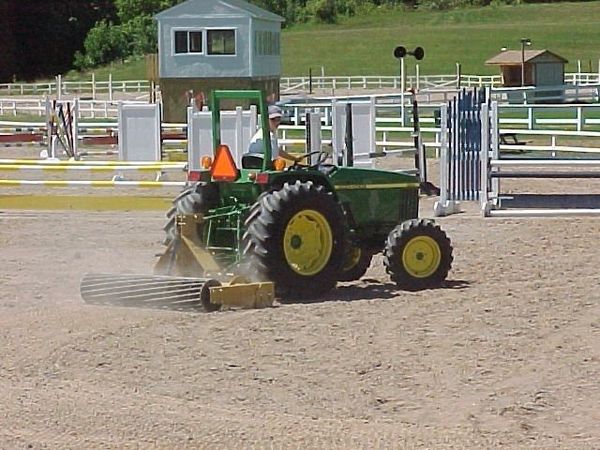

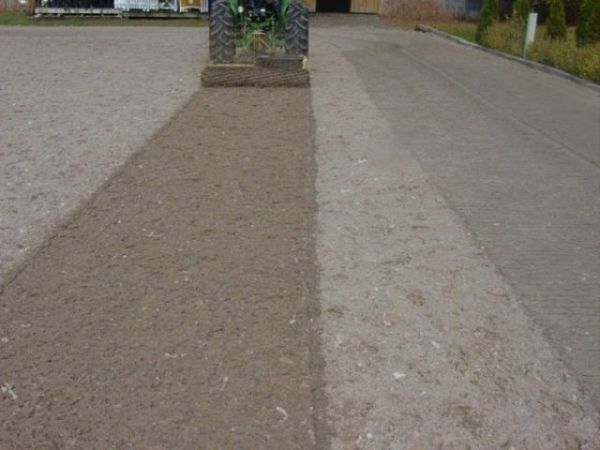

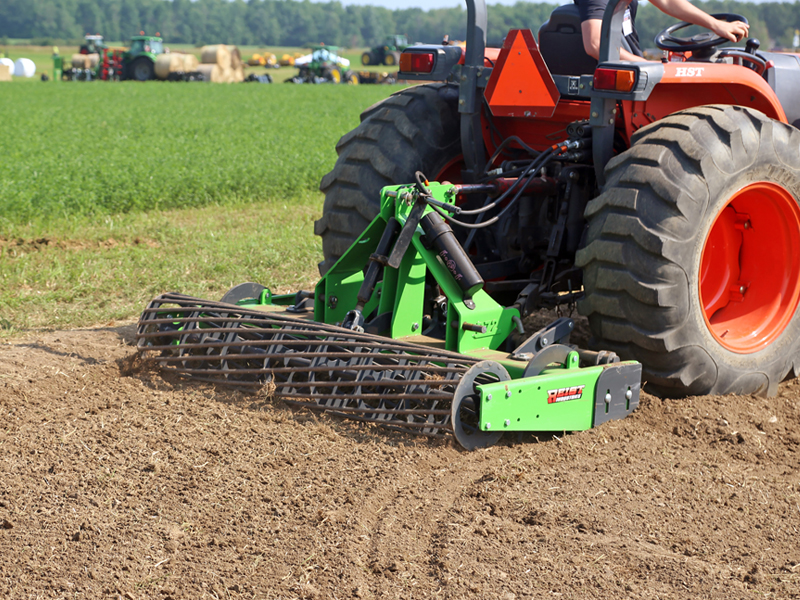

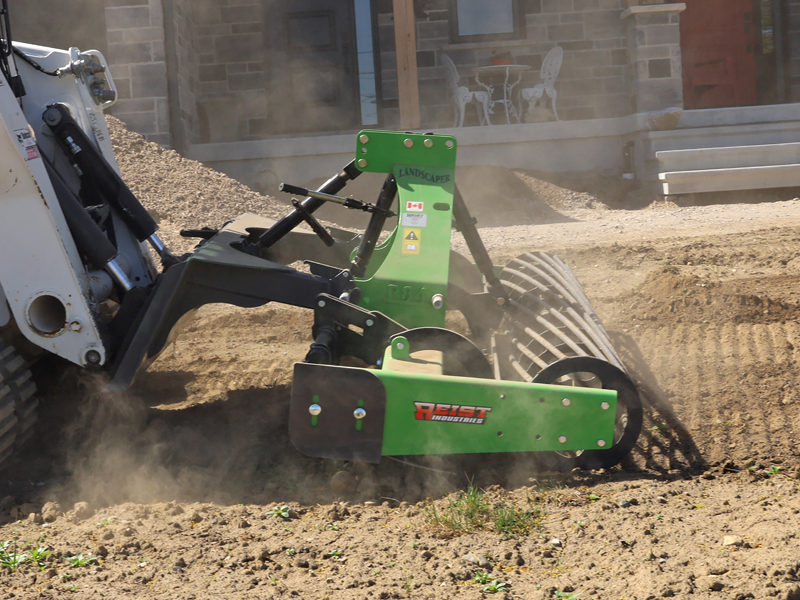

The Reist Landscaper does the work of a clodbreaker/ pulverizer, harrow, box grader, ripper and grass seeder. The Landscaper is perfect for golf course builders, commercial landscapers, public works departments, earthscaping, construction sites, or any project requiring grading and reconditioning of a soil or gravel surface. The Landscaper can be used to "finish" an entire site.
Landscaper CAT I |
P48 |
P60 |
P72 |
P84 |
P96 |
Dimensions (WLH) |
49 x 38 x 33” |
61 x 38 x 33” |
73 x 38 x 33” |
85 x 38 x 33” |
97 x 38 x 33” |
Working Width |
48” |
60” |
72” |
84” |
96” |
HP Req. |
20-30 |
25-40 |
30-50 |
30-60 |
30-75 |
Hitch |
CAT I |
CAT I |
CAT I |
CAT I |
CAT I |
Weight (lbs) |
350 |
570 |
701 |
745 |
833 |
Weight w/ Harrow (lbs) |
400 |
631 |
784 |
835 |
937 |
Weight w/ Harrow & Ripper (lbs) |
525 |
774 |
954 |
1,005 |
1,170 |
Weight w/ Seeder Attach. (lbs) |
460 |
690 |
750 |
945 |
1,500 |
Options

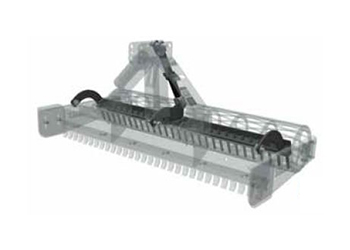

Harrow
- Hardened 5/8” square teeth spaced at 2 1/2”
- Removes trash on surface
- Mixes grass seed into soil
- with seeder attachment
- Makes a nice seed bed
- Manual adjustment from 0-4” deep
- Manual ratchet jack to raise

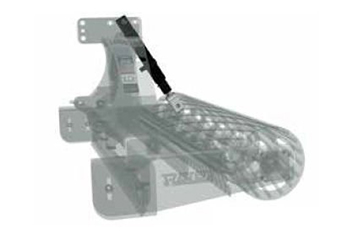

Harrow Cylinder
- Replaces manual ratchet jack to control ripper
- Tooth depth hydraulically

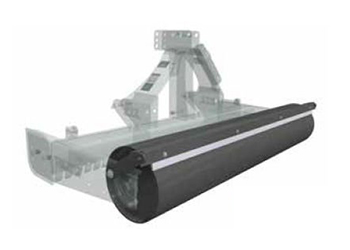

Smooth Roller
- Smooth flat finish on soil, sand or synthetic
- Equestrian footings
- Self-adjusting scraper bar
- Water can be added to roll

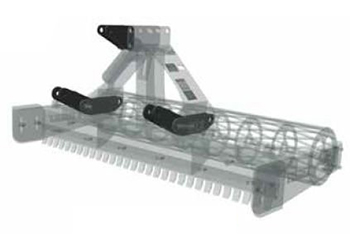

6" Hitch Extensions
- Extension for more clearance

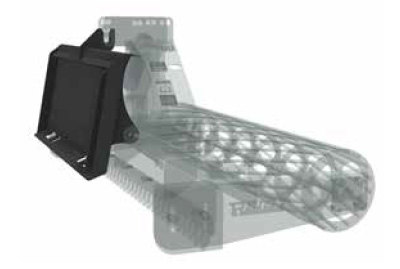

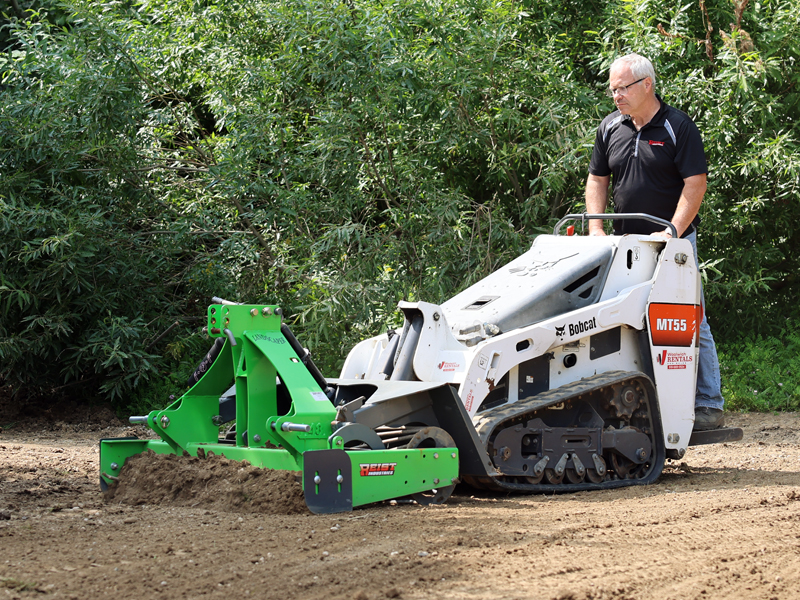

Hitch Adapter, Skid Steer (Pull Only)
- Hitch adapter to attach to skid steer
- Pull only

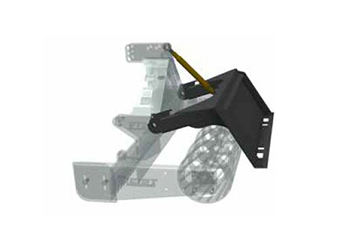

Hitch Adapter, Skid Steer (Push and Pull)
- Hitch adapter to attach to skidsteer
- Ability to push and pull

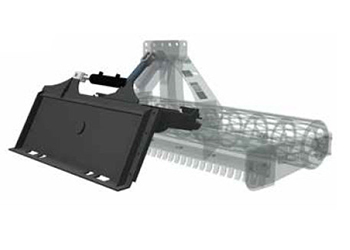

Hitch Adapter, Hydraulic Tilting Skid Steer (Push and Pull)
- Hitch adapter to attach to skidsteer, with hydraulic controls for tilting
- Ability to push and pull

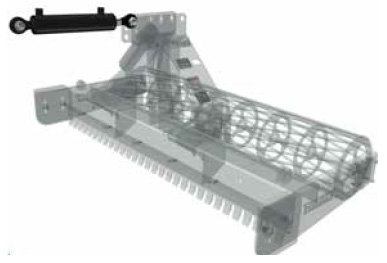

Top Link Cylinder
- Top link grading control
- 8” stroke CAT I
- 10” or 14” stroke CAT II
- Ball ends

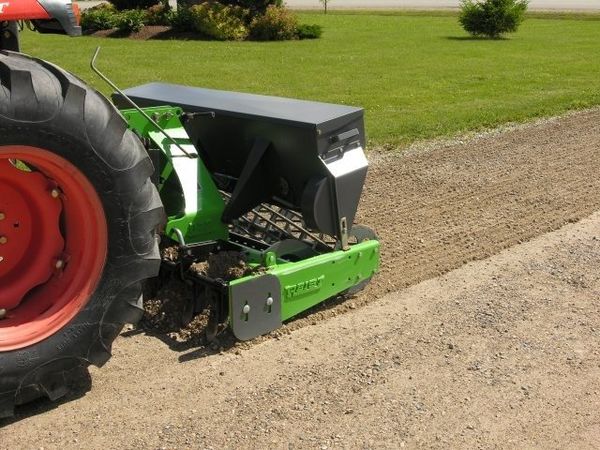

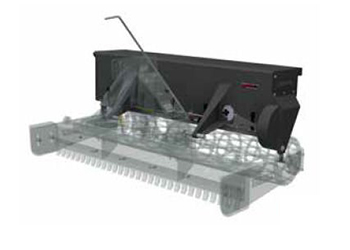

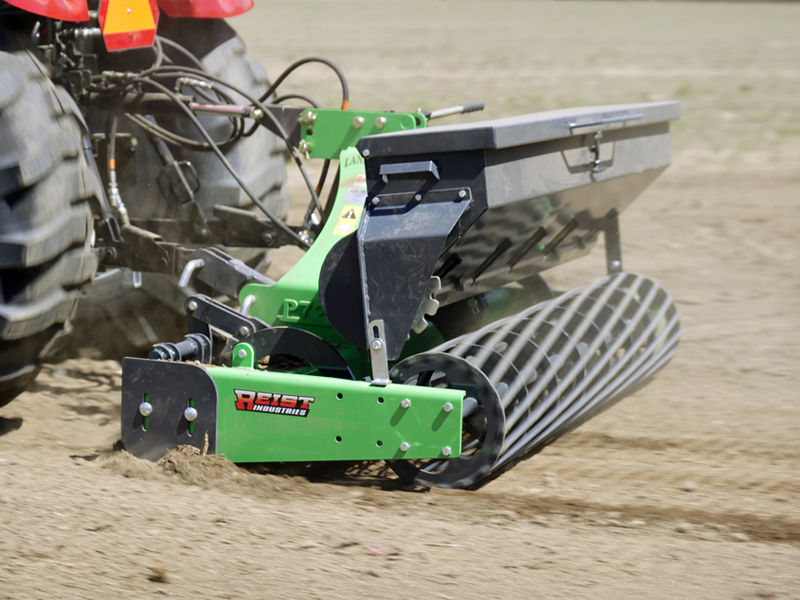

Grass Seeder
- Quick attach two-pin mounting system
- Seed rate adjustment with indicator
- Hydraulic-controlled seed opener or optional Manual
- Available widths and capacity: 48” (2.7 bushels), 60” (3.4 bushels), 72” (4.1 bushels), 84” (4.9 bushels), and 96” (5.6 bushels)

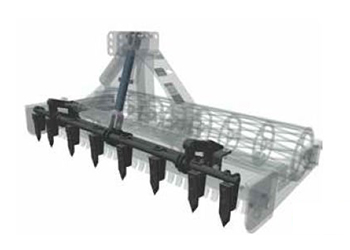

Ripper
- 1/2” thick x 2” wide bolt-on ripper teeth
- High-strength, stress-proof ripper bar
- Manual adjustment from 0 to 5” ripping depth
- Available widths: 48”, 60”, 72”, 84”, and 96”
- Manual ratchet jack to raise

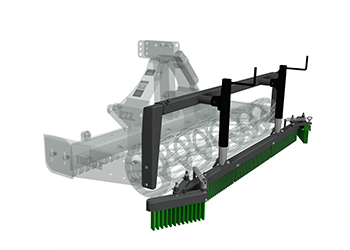

Rear Brush
- Brushed finish on walking trails
- Break-away wings to smooth out side ridges
- Adjustable brush depth with two top wind jacks
- Available widths: 48”, 60”, 72”, 84”, and 96”

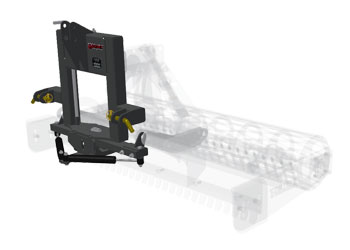

Swivel Hitch
- Turns 22 degrees each way
- Unique self-straightening feature when 3PH is raised
- Lock pin for hard surfaces
- Hitch extensions required

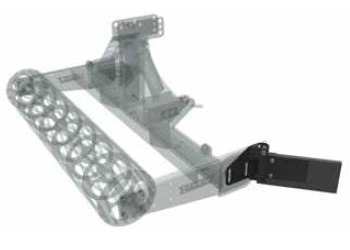

Board Scraper
- Get a nice finish from your machine even close to boards of arenas with the board scraper attachment
- Thick rubber to not damage boards

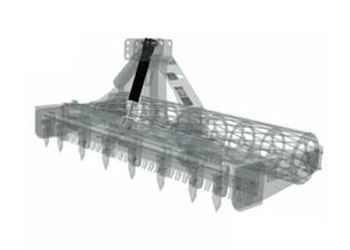

Ripper Cylinder
- Replaces manual ratchet jack to control ripper tooth depth hydraulically
- 2"x 8" Cylinder

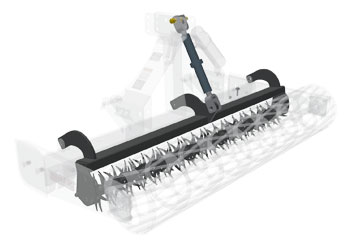

Spiked Rolling Harrow
- Ideal for prepping seed beds
- For CAT I & II
- Manual ratched jack adjustment
- To break up clumps
