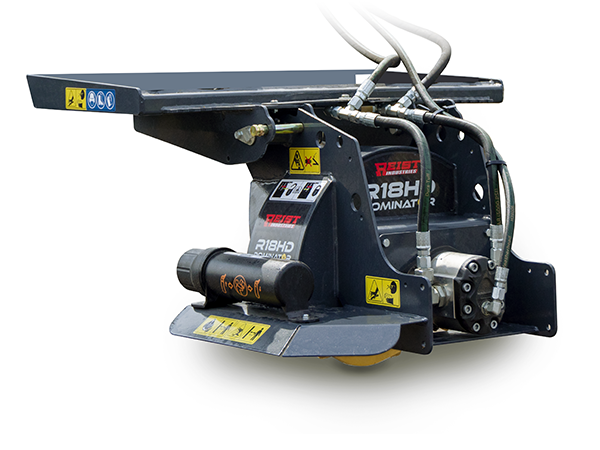

Stump Grinder - 18" Direct Hydraulic Drive
Perfectly pairs with compact skid loaders.
Ideal for landscapers and rental houses the Dominator R18HD brings high performance stump grinding to compact machines with an 18" grinding rotor measuring 1/2" thick. Available with 3 motor options to match your hydraulic requirements the R18HD can be packaged with one of 3 available mounts making it ideal for todays compact loader segment.
- 18" Rotor
- 1/2" Thick rotor
- 10 Teeth
- Optional Hose protector shield available
| Model Specs. | R18HDMB1015G | R18HDMS1015G | R18HDMK1520G |
|---|---|---|---|
| Rotor Size | 18" | 18" | 18" |
| Tooth Construction | Carbide Bolt into Pocket (Indexable 3x) | ||
| Number of teeth | 10 | 10 | 10 |
| Cutting Wheel Speed | 1450-2180 RPM | 1450-2180 RPM | 1450-1900 RPM |
| Cutting Depth (below grade) | 4.5" | 4.5" | 4.5" |
| Cutting Depth Maximium(per pass) | 2.25" | 2.25" | 2.25" |
| Hitch Type | Mini Bobcat | Mini Skid Steer | Universal Skid Steer |
| Hydraulic Remotes Required | 1 | 1 | 1 | `
| Flow Controlled | No | No | Yes |
| Hydraulic Motor | 26CC Gear Motor | 26CC Gear Motor | 39CC Gear Motor |
| Case Drain Req. | Yes | Yes | Yes |
| GPM Required | 10-15 GPM | 10-15 GPM | 15-20 GPM |
| Weight | 240 lbs. | 275 lbs. | 335 lbs. |
| Length | 37" | 30" | 37" |
| Width | 36" | 28" | 47" |
Features

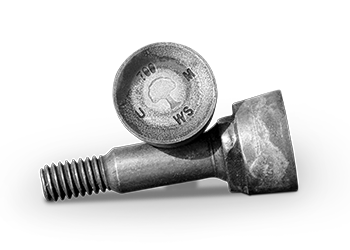

Carbide Teeth
Dominator stump grinders use Wearsharp® teeth. The round design of the tooth and a triangular base allows it to be indexed 3 times for extended life.
Options

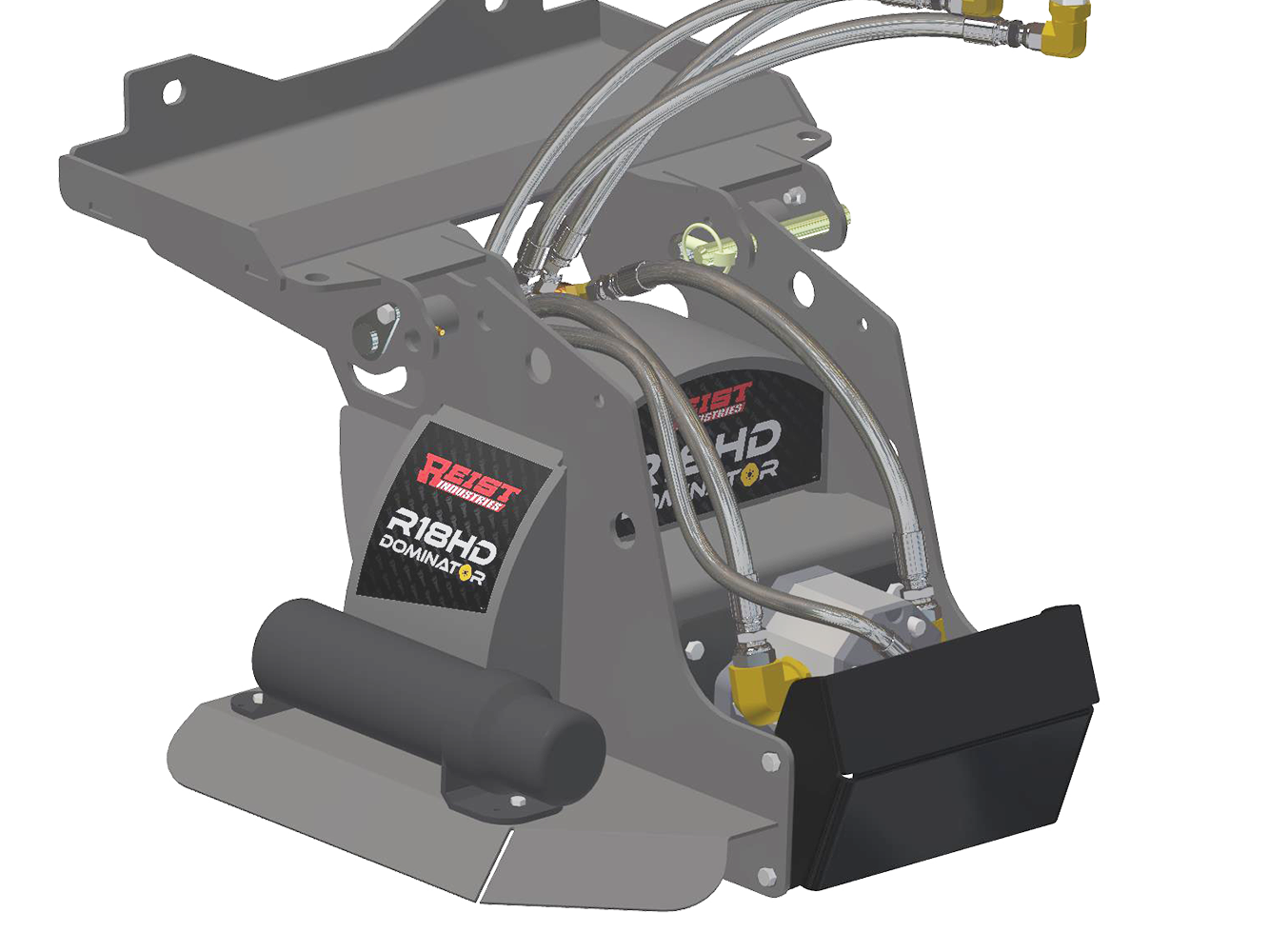

Shield
- Hose protector shield
- Optional shield increases protection to hose and motor assembly.

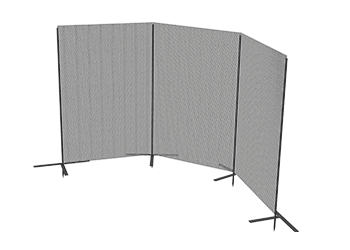

Debris Screen
- 10' wide by 5' tall
- Includes 4 posts with integrated ground spikes
- Used in areas where debris from the stump grinder needs to be contained
