Stump Grinder - 25" Direct Drive Hydraulic
Ideal for high flow skid steers.

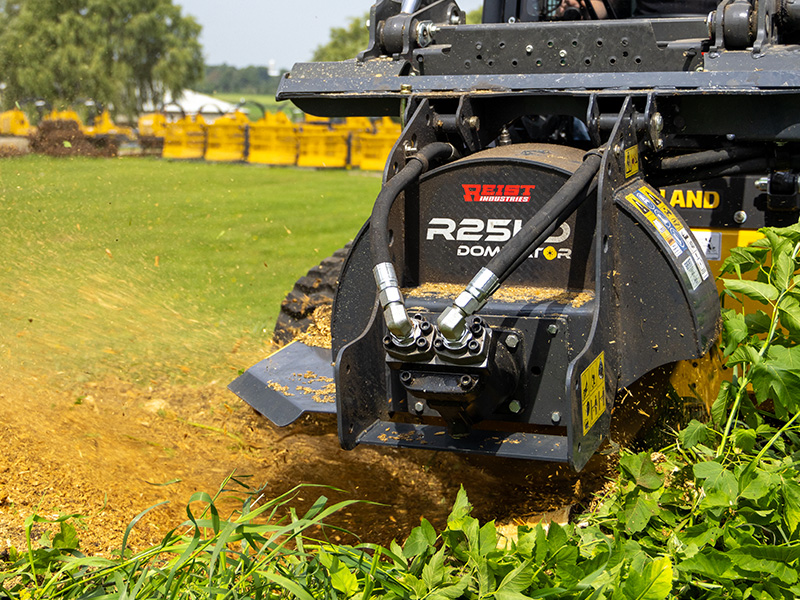

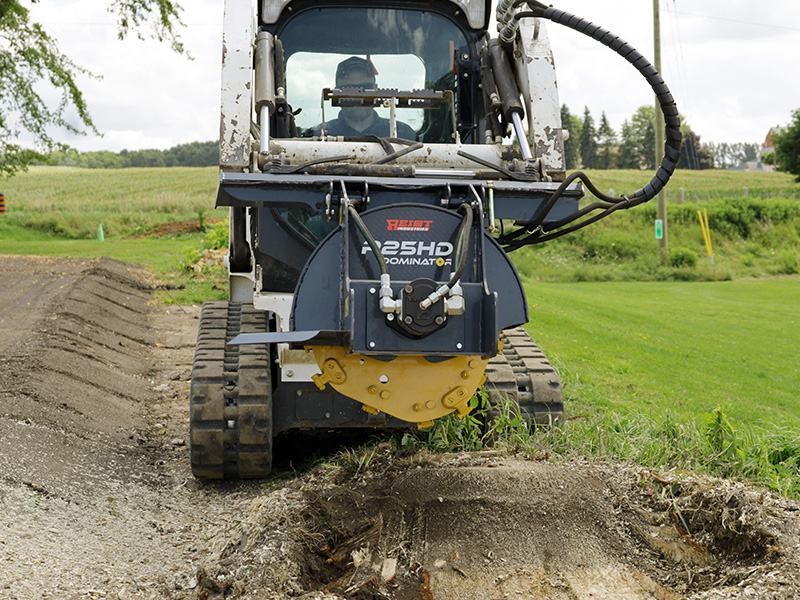

Increase your capability of your skidsteer with the Dominator R25HD. This hydraulic direct drive stump grinder features a 25" rotor measuring 3/4" thick.
When equipped with the 90CC Bent Axis Piston Motor, the R25HD can handle 27-38 GPM helping it to power through the toughest stumps.
- 25" Rotor
- 3/4" Thick rotor
- 18 Teeth
- Optional Hose protector shield available
| Model Specs. | R25HDSK1620G | R25HDSK2026G | R25HDSK2738P |
|---|---|---|---|
| Rotor Size | 25" | 25" | 25" |
| Tooth Construction | Carbide Bolt into Pocket (Indexable 3x) | ||
| Number of teeth | 18 | 18 | 18 |
| Cutting Wheel Speed | 1210-1510 RPM | 1200-1560 RPM | 1135-1590 RPM |
| Cutting Depth (below grade) | 7" | 7" | 7" |
| Cutting Depth Maximum (per pass) | 2.25" | 2.25" | 2.25" |
| Hitch Type | Universal Skid Steer | Universal Skid Steer | Universal Skid Steer |
| Hydraulic Remotes Required | 1 | 1 | 1 |
| Flow Controlled | Yes | Yes | No |
| Hydraulic Motor | 50CC Gear Motor | 63CC Gear Motor | 90CC Bent Axis Piston Motor |
| Case Drain Req. | Yes | Yes | Yes |
| GPM Required | 16-20 GPM | 20-26 GPM | 27-38 GPM |
| Weight | 480 lbs. | 480 lbs. | 500 lbs. |
| Length | 41" | 41" | 41" |
| Width | 47" | 47" | 47" |
Features
Rotor
A uniquely designed rotor sheds unnecessary weight increasing rotor acceleration helping to maximize available PTO horsepower.
Carbide Teeth
Dominator stump grinders use Wearsharp® teeth. The round design of the tooth and a triangular base allows it to be indexed 3 times for extended life.
Options

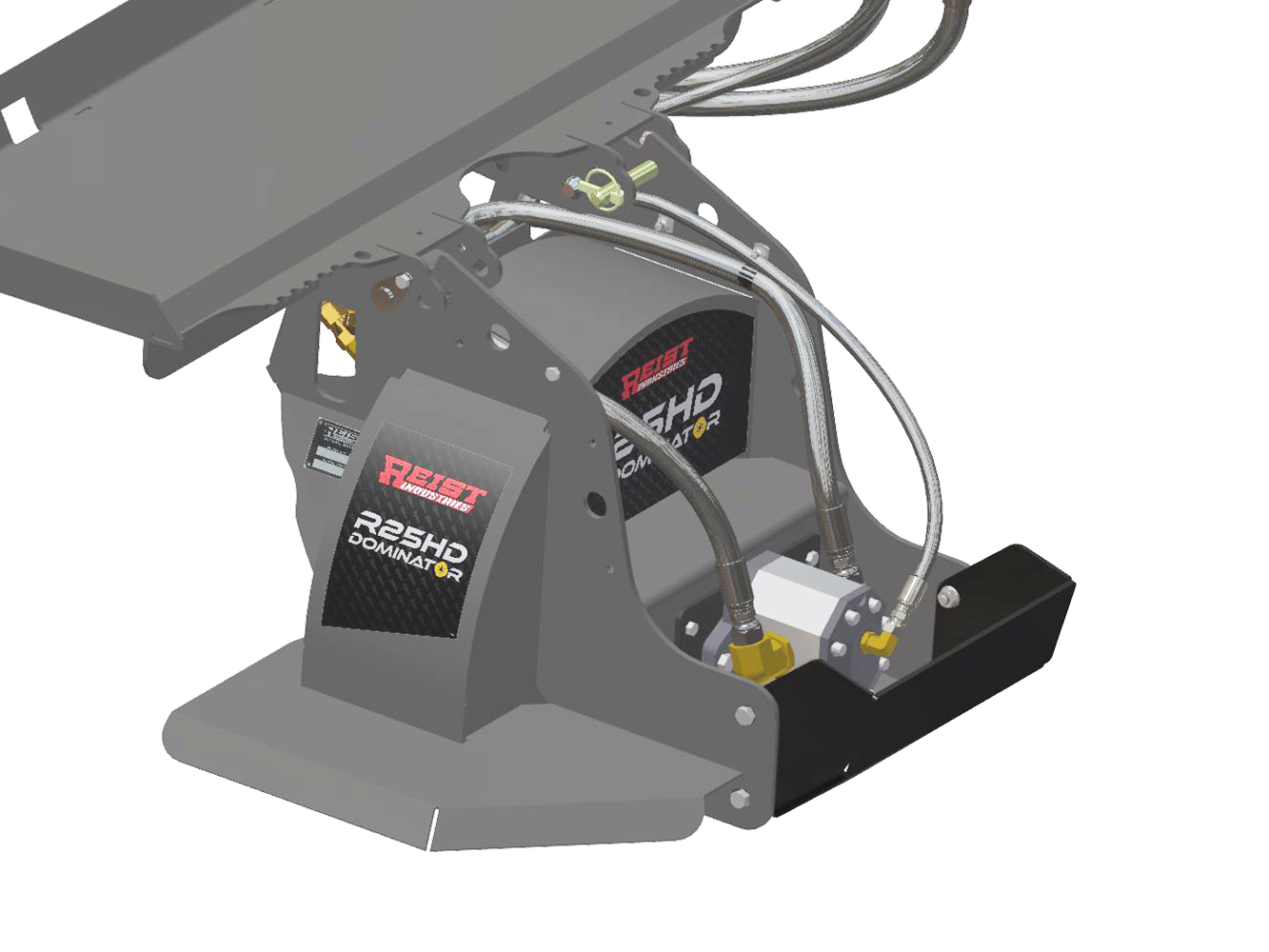

Shield
- Hose protector shield
- Optional shield increases protection to hose and motor assembly.

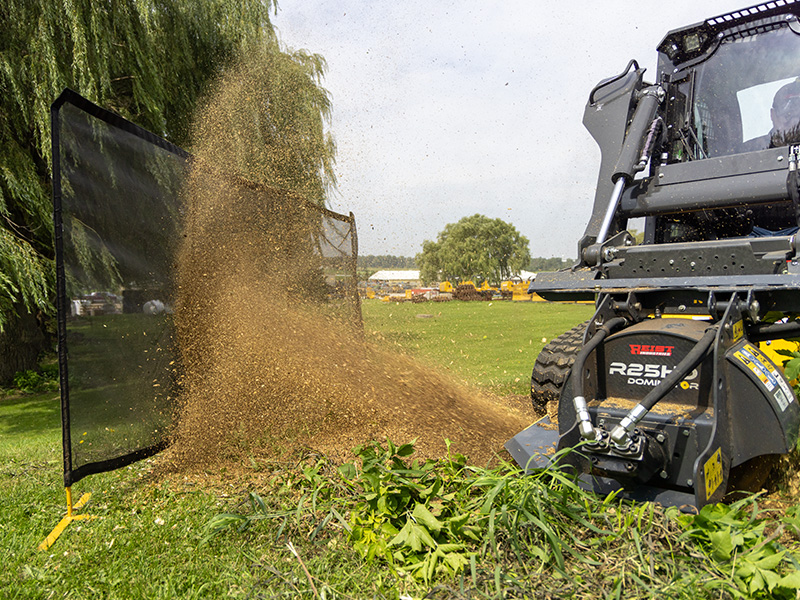

Debris Screen
- 10' wide by 5' tall
- Includes 4 posts with integrated ground spikes
- Used in areas where debris from the stump grinder needs to be contained
