MultiGroomer

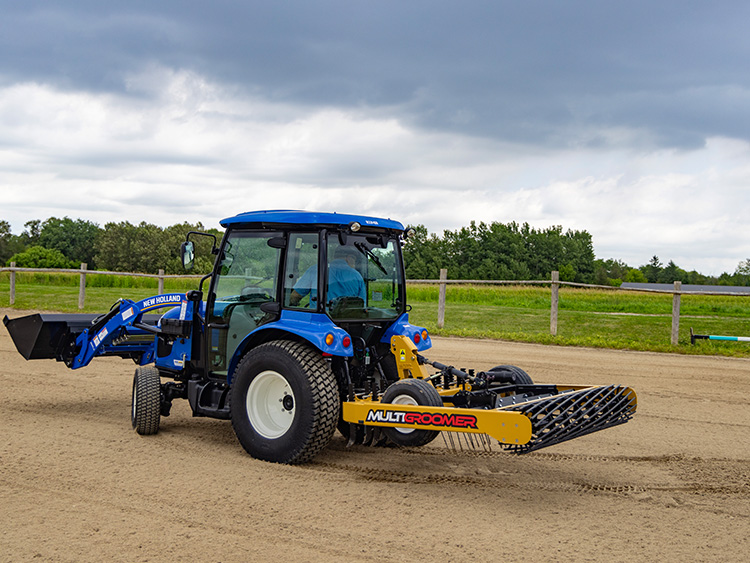

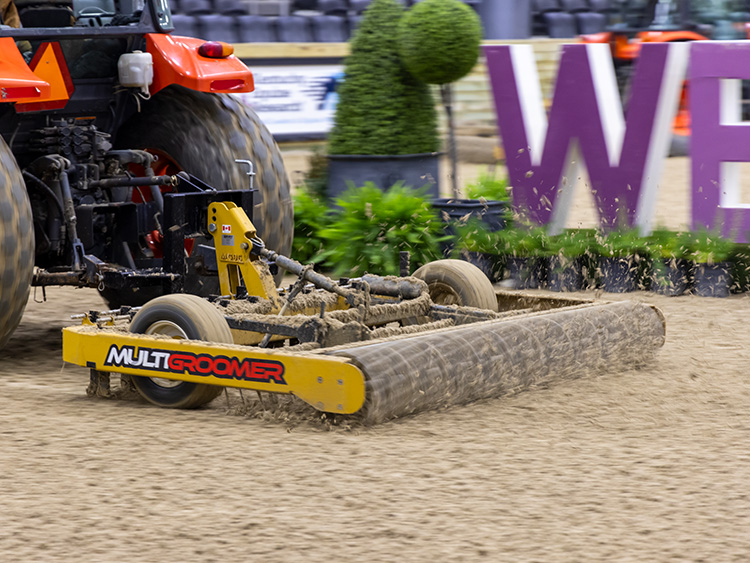

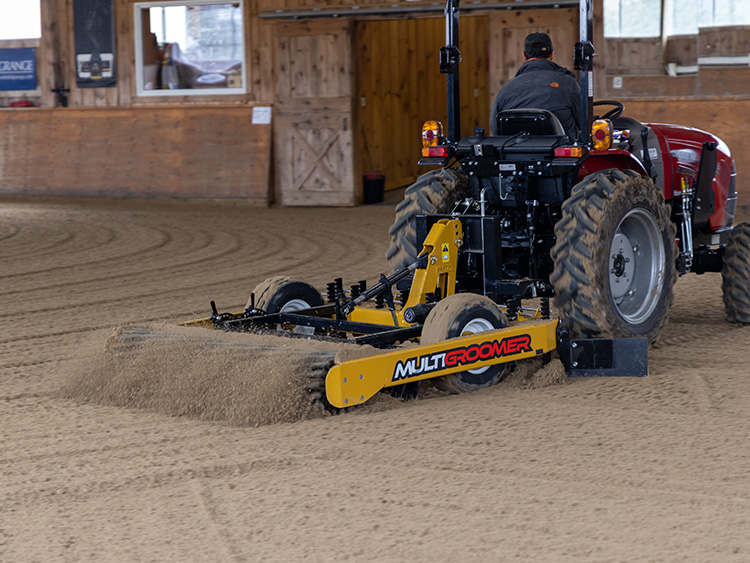

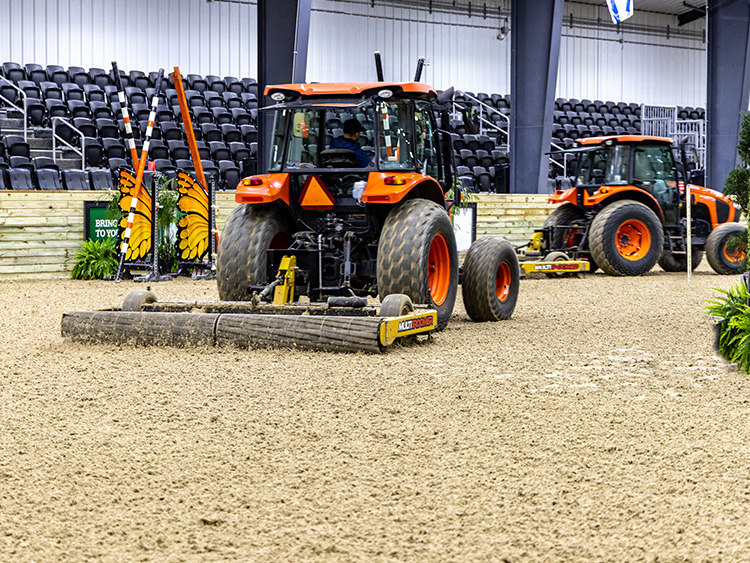

The Multi-Groomer renovates and conditions conventional and synthetic footings on horse-riding arenas and tracks. The unique design features heavy duty side rub rails. An aggressive double row of adjustable ripper teeth are offset and have a spacing of 4" as well as a working depth of up to 4". The rear 2 rows of spring tines are offset and the pitch and height can be adjusted with a manual ratchet rack or an optional hydraulic cylinder. The spring tines give an ultimate mixing effect of the surface. The rear bar roller pulverizes and packs to the desired density, and leaves an attractive patterned finish.

  • Heavy duty side rub rails
  • Double row of adjustable ripper teeth are offset and have a spacing of 4" (and can also be spaced 6" & 8" apart) as well as a working depth of up to 4"
  • The rear two rows of spring tines are offset and the pitch and height can be adjusted with a manual ratchet rack or an optional hydraulic cylinder the desired density
Multi-Groomer MG48 MG60 MG72 MG80 MG96 MG120
Dimensions (WLH) 49 x 68 x 34" 61 x 68 x 34" 73 x 72 x 34" 81 x 72 x 34" 97 x 72 x 34" 121 x 72 x 34"
Working Width 48" 60" 72" 80" 96" 120"
Working Depth 4" 4" 4" 4" 4" 4"
Hitch CAT I CAT I CAT I CAT I CAT II CAT II
Weight (Ibs) 580 690 750 875 945 1,500
Tires 16.5 x 6.5-8 16.5 x 6.5-8 20.5 x 8.0-10 20.5 x 8.0-10 20.5 x 8.0-10 20.5 x 8.0-10
# of Ripper Teeth 11 15 19 19 23 31
Rear Bar Roller (dia.) 12.75" 12.75" 12.75" 12.75" 12.75" 12.75"
HP Required 15 -40 20 -40 25-70 30-100 30-100 50-120
Base Unit 5,100 5,400 6,020 6,620 7,580 10,115

Options

Tow Hitch

  • Add tow hitch to tow behind tractor or appropriate vehicle

Smooth Roll Water Tank

  • Add this attachment to get the smoothest finish
  • Add water for more compaction

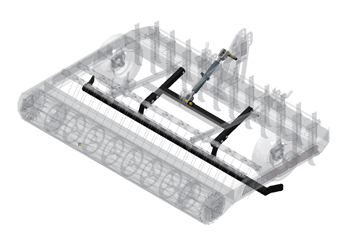

Saw Toothed Leveling Blade

  • Levels sand footing

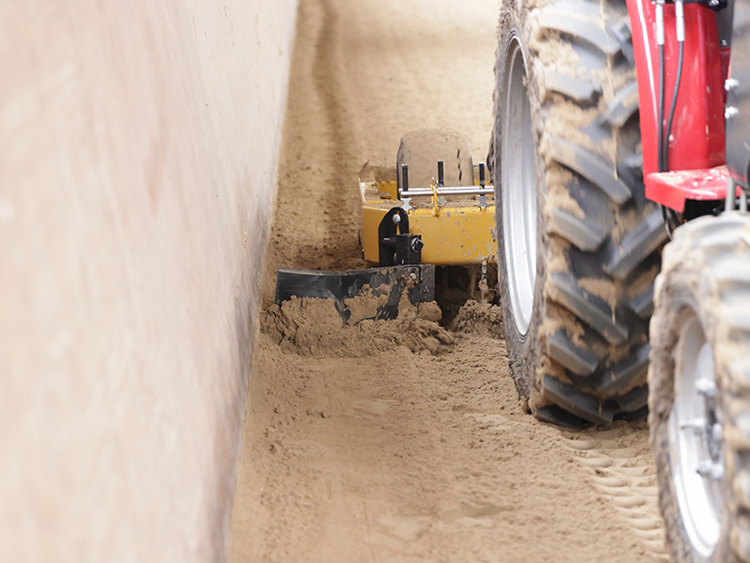

Board Scraper

  • Get a nice finish from your machine even close to boards of arenas with the board scraper attachment
  • Thick rubber to not damage boards

Hydraulic Ripper Bar

  • Aggressive ripper
  • Depth up to 8" deep
  • Hydraulically lift ripper out of the way
  • Connects to 3PH of MultiGroomer

Ripper Tooth

  • Resistant to wear
  • Replaceable tooth

Ripper Shank

  • Resistant to wear

Replaceable Shank Tip

  • Resistant to wear

Drag Packer/Sealer

  • Pack and seal up synthetic footings
  • Hydraulic lift

CAT I Hitch

  • Swivel Hitch (CAT I)
  • Turns 22 degrees each way
  • Unique self-straightening feature when 3PH is raised
  • Lock pin for hard and tough footings

CAT II Hitch

  • CAT II Hitch for CAT II tractors

Multi-Groomer with Hydraulic Lift Axle

  • Hydraulically control depth of ripper teeth with axle adjustment
