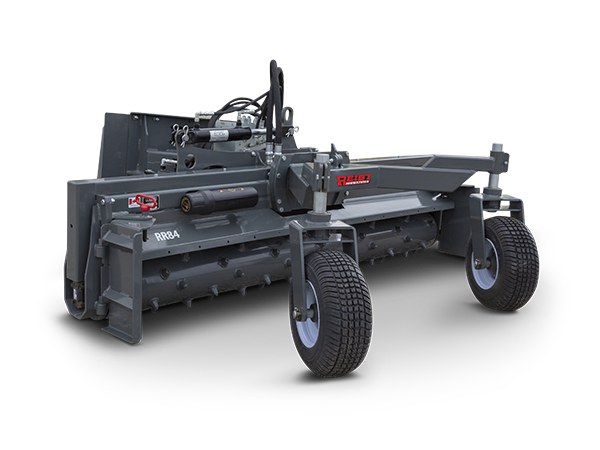

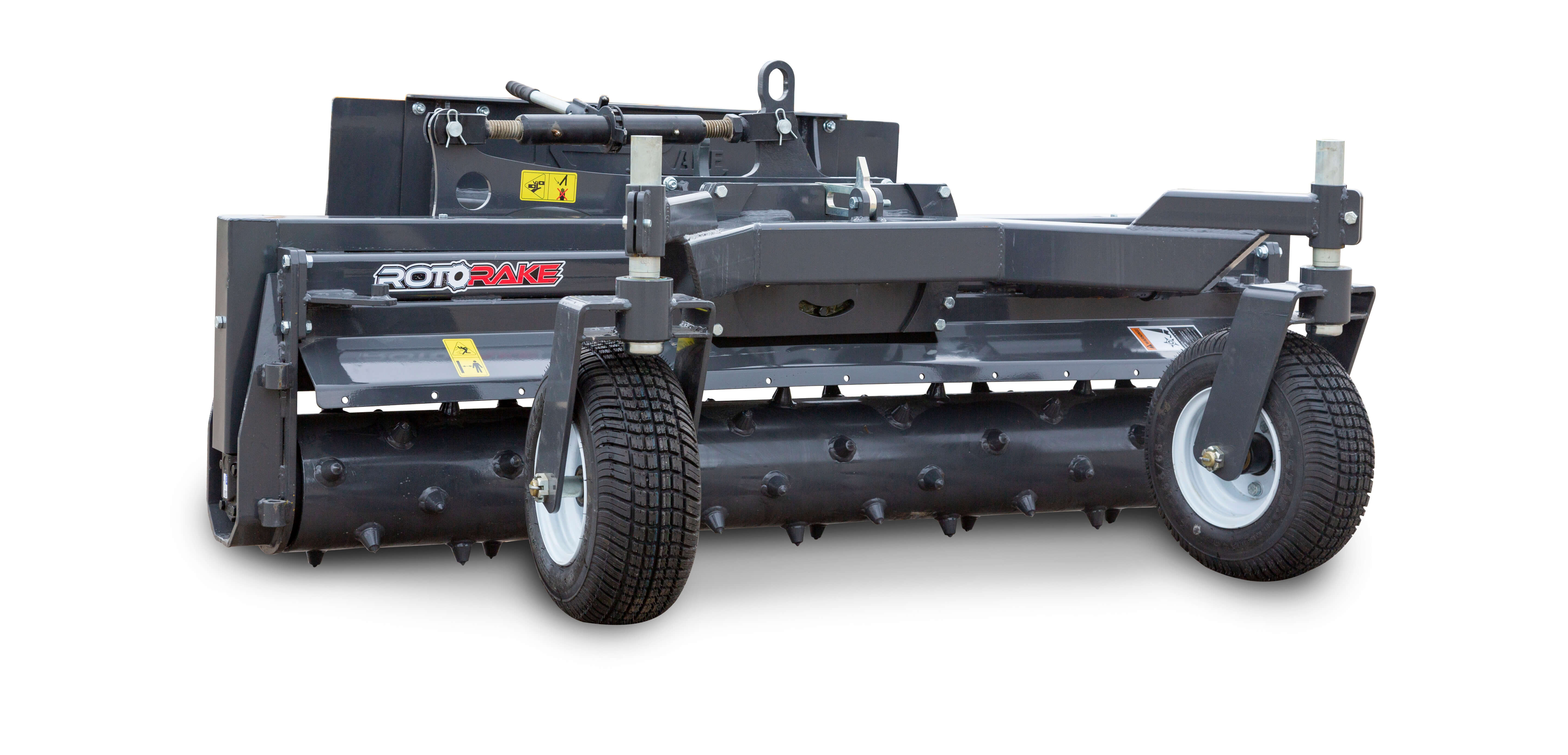

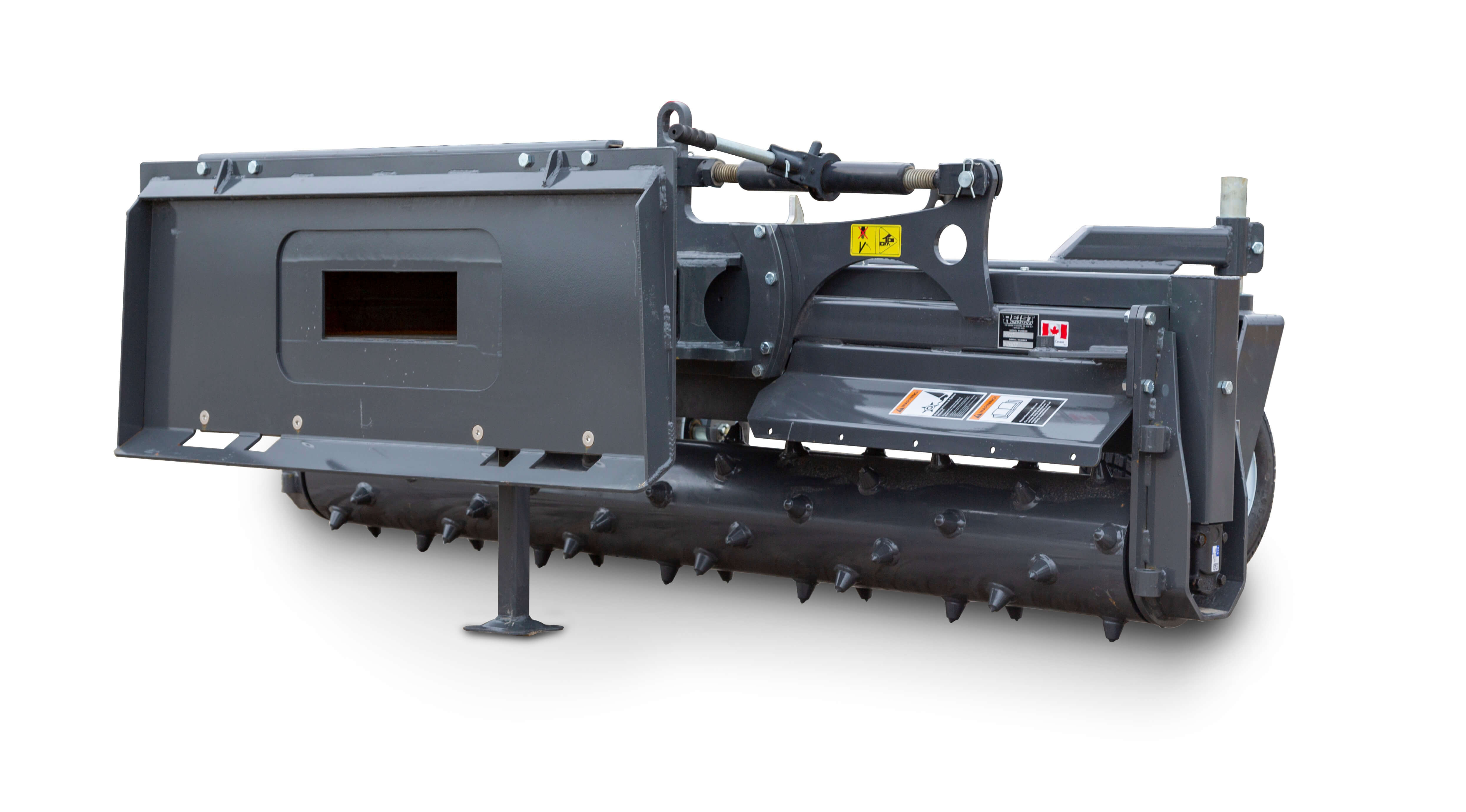

RotoRake 60-96"

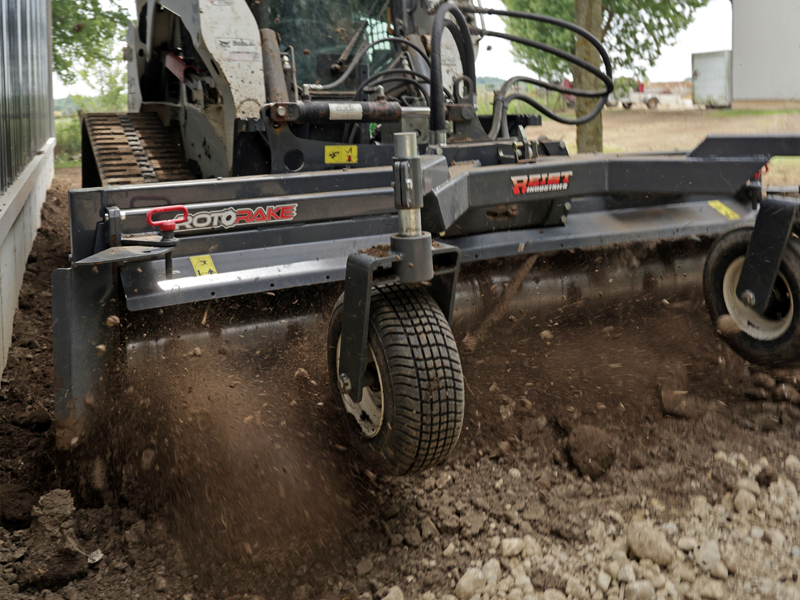

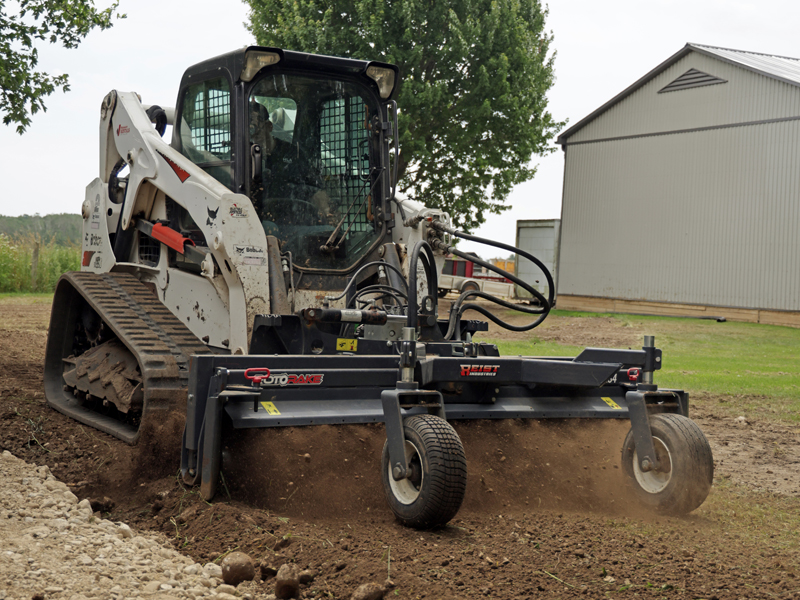

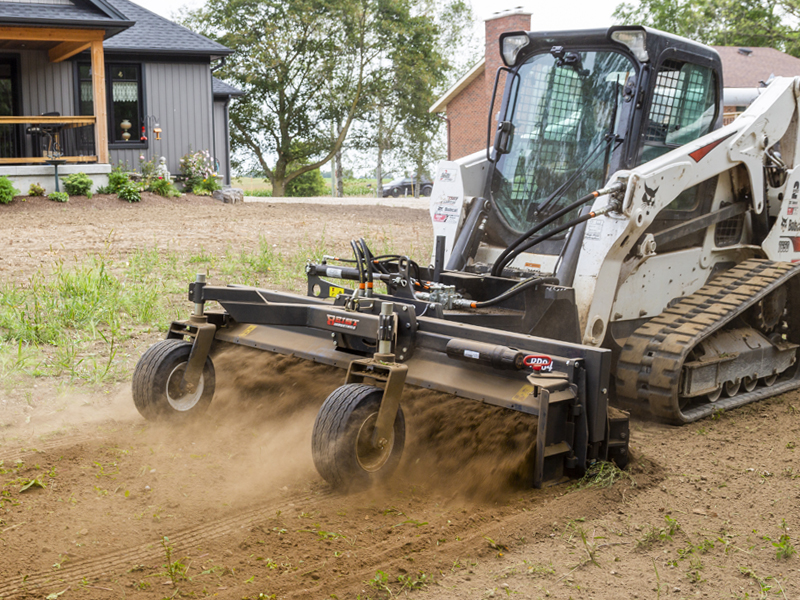

The RotoRake's (Hyd) bi-directional rotor allows for operation in both directions. Features a 25 degree angle and 28 degree tilt for easy swaling and ditching. Oscillating gauge wheels can be locked in level position. Dual-motor design delivers 40% more torque and eliminates outside bearings and chains.

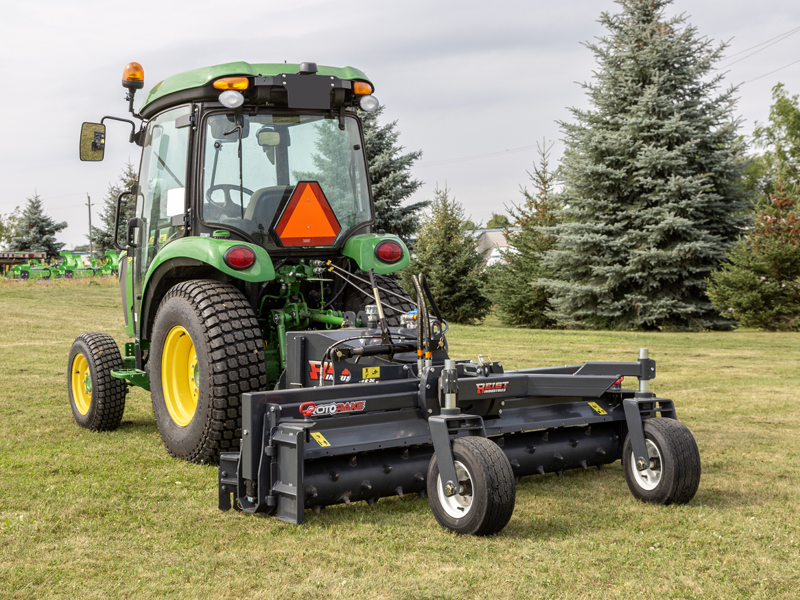

The RotoRake also features a floating rotor design with road-grade mini carbide teeth, ditch cutters and side shields. The RotoRake can be used on a three point hitch or skid steer hitch systems.

  • Features a 25 degree angle and 28 degree tilt for
  • easy swaling and ditching
  • Oscillating gauge wheels lock in level position for the

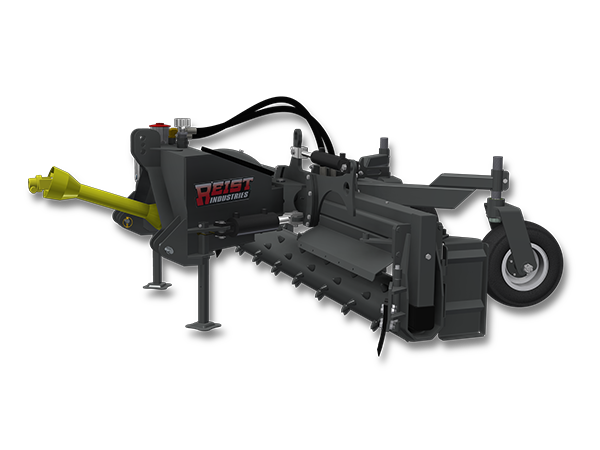

  • (PTO) three point hitch use
  • Dual-motor design delivers 40% more torque than a single motor, and eliminates outside bearings and chains

RotoRake RR60 RR72 RR84 RR96
Dimensions (WLH) 69 x 63 x 34” 81 x 63 x 34” 93 x 63 x 34” 105 x 63 x 34”
Working Width 60” 72” 84” 96”
Working Width (Angled 25°) 55” 65” 76” 87”
Weight (lbs) 1,150 1,220 1,280 1,380
Cont. PSI 3,000 MAX 3,000 MAX 3,000 MAX 3,000 MAX
PTO Required N/A N/A N/A N/A
Roto Speed 230-450 RPM 230-450 RPM 230-450 RPM 230-450 RPM
Hyd. GPM Range 18-30 18-30 18-30 18-30
Rotor Torque @ 2500 PSI 550 ft-lbs 550 ft-lbs 550 ft-lbs 640 ft-lbs
Mount Type Std. Skid. Std. Skid. Std. Skid. Std. Skid.
Gauge Wheels Included 2 2 2 2
Tilt Manual Manual Manual Manual
Angle Manual Manual Manual Manual

Options

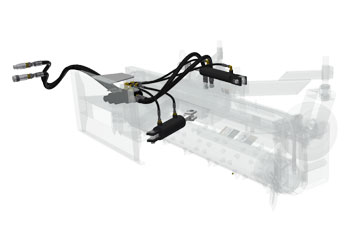

Remote-Controlled Hydraulic Kit

  • Hydraulic option for the RotoRake
  • 12 volt Hydraulic valve option to tilt and angle
  • You can choose one or both of these options
  • The optional On The Fly Valve keeps the rotor spinning while tilting the rotor

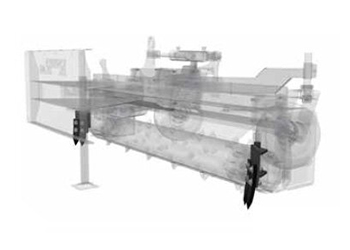

Side Cutters

  • Pin on front or rear depending on desired direction of travel
  • When ditching, the side cutters help to dig in further

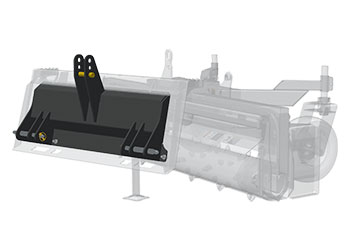

CAT I & II Hitch

  • CAT I & II hitch for your RotoRake

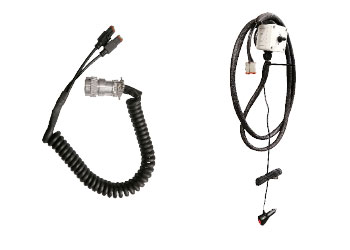

Wiring Harness

  • Contact Reist Industries or your local dealer for available wiring kits
