Earth Boar AS Series

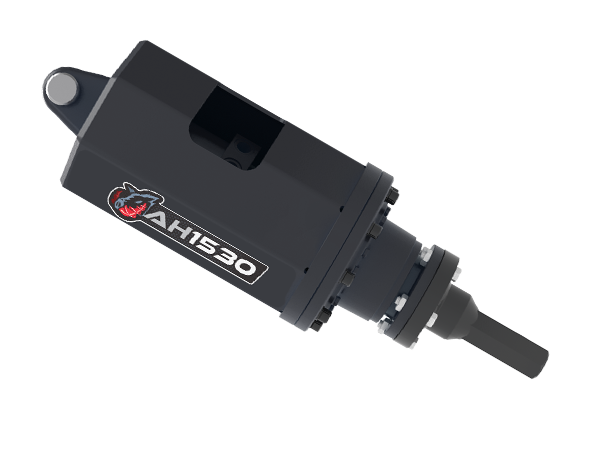

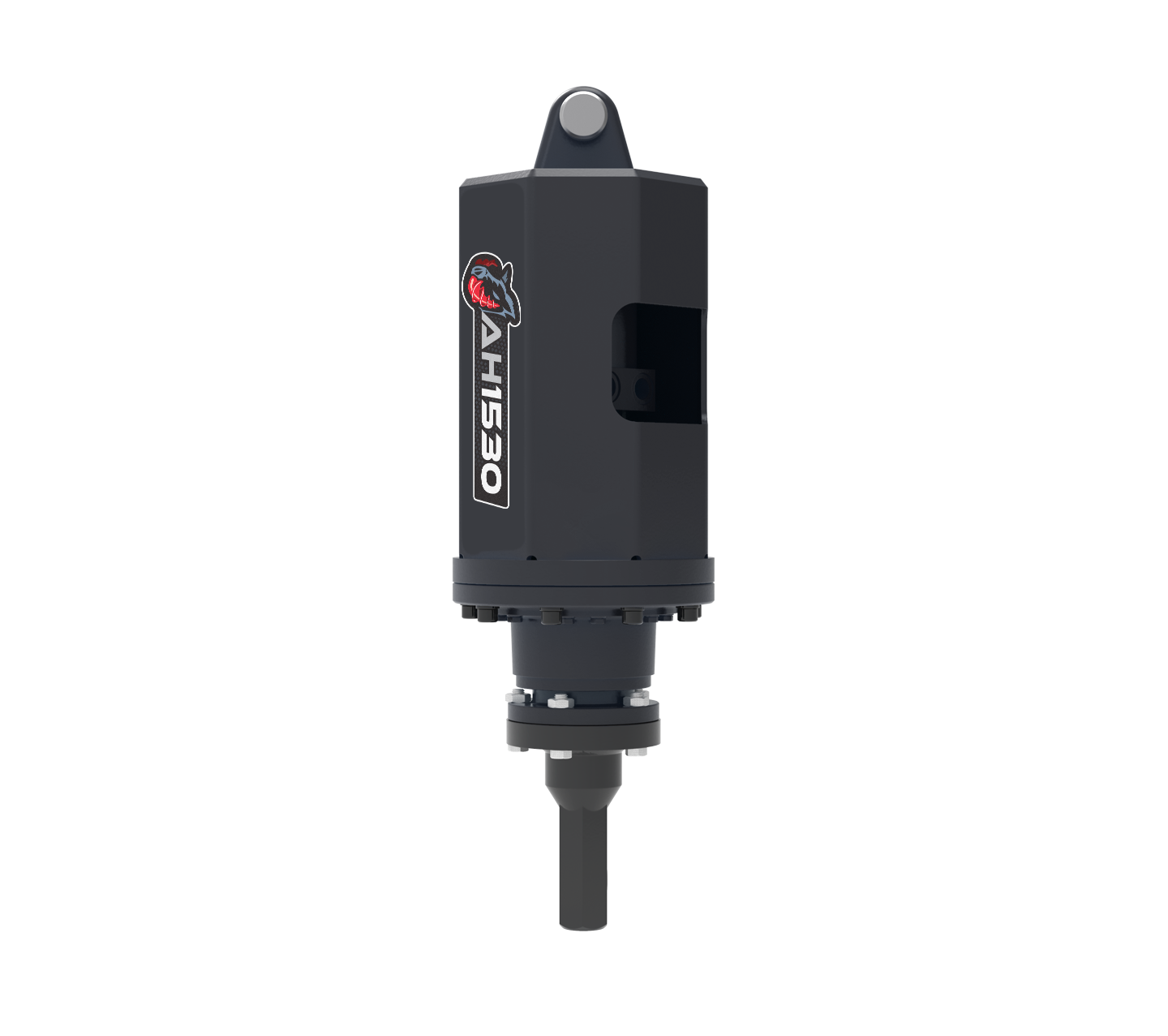

The Earth Boar is a robust compact planetary auger drive. It's available for skid steer loaders, and tractor front end loads with flow ranges between 10-35 GPM. The AS series are ideal for farm, ranch, construction, and rental applications, while the AH model has higher torque output and has a field serviceable output shaft.
- Robust compact planetary auger drive
- Mounts available for skid steer loaders, and tractor front end loaders
- Flow ranges between 10-35 GPM
- The AS series are ideal for farm, ranch, construction, and rental applications

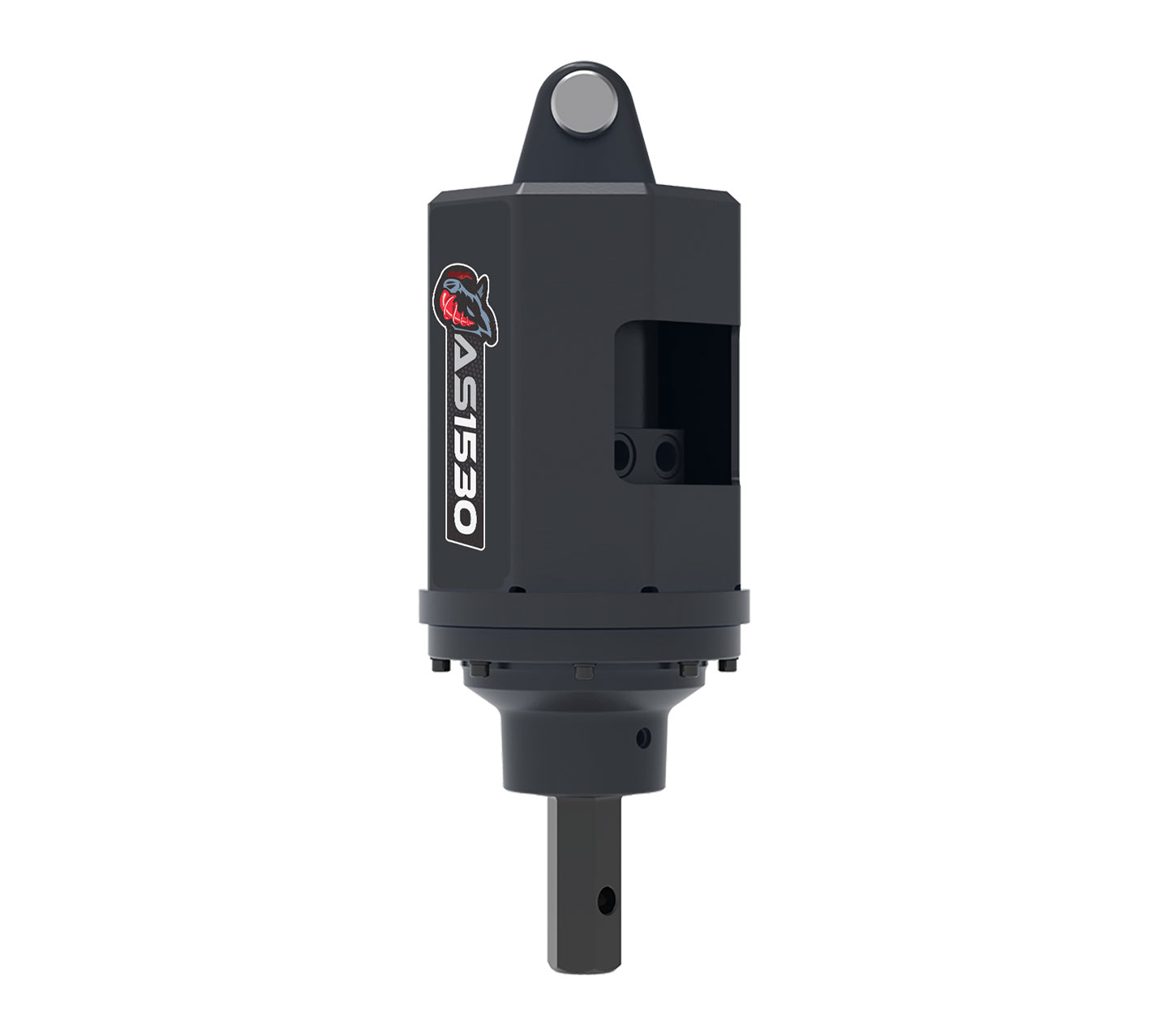

| Specifications | AS-0615 | AS-1020 | AS-1530 | AS-2035 |
|---|---|---|---|---|
| Dimensions (Drive only) | 10" x 10" x 28" | 10" x 10" x 28" | 10" x 10" x 28" | 10" x 10" x 28" |
| Weight Drive | 150 lbs. | 150 lbs. | 150 lbs. | 151 lbs. |
| Output Shaft Size | 2" Hex | 2" Hex | 2" Hex | 2" Hex |
| Max. Dia. Dirt | 18" | 30" | 36" | 36" |
| Max. Dia. Rock | 18" | 24" | 36" | 36" |
| Gear Train Type | Planetary | Planetary | Planetary | Planetary |
| Min./Max. Flow | 6-15 GPM | 10-20 GPM | 15-30 GPM | 20-35 GPM |
| Max. Continuous PSI | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI |
| Max Intermittent PSI | 3500 PSI | 3500 PSI | 3500 PSI | 3500 PSI |
| Field Serviceable | No | No | No | No |
| Limited Warranty | 4 Years | 4 Years | 4 years | 4 Years |
| Mount Parts | Description |
|---|---|

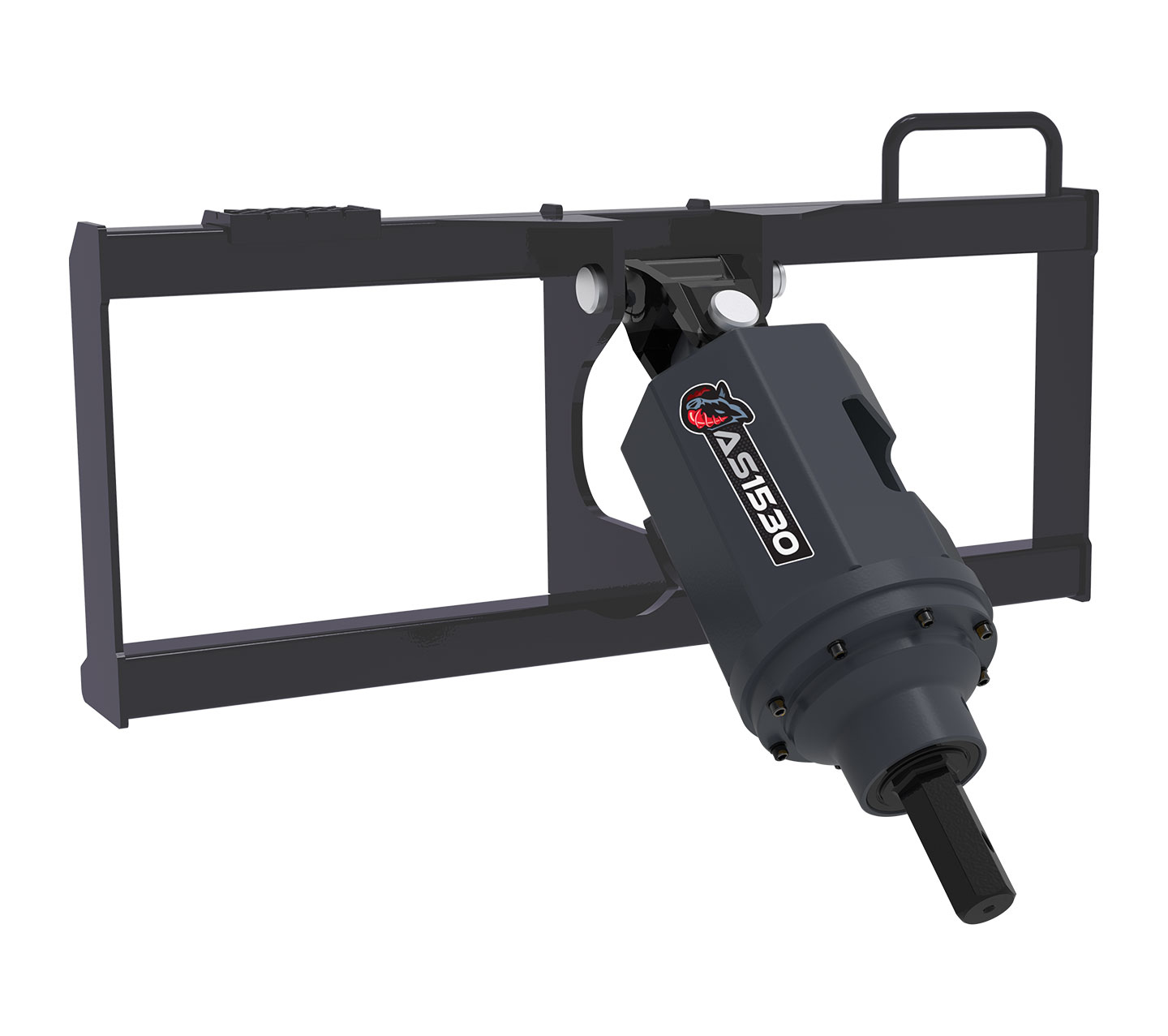

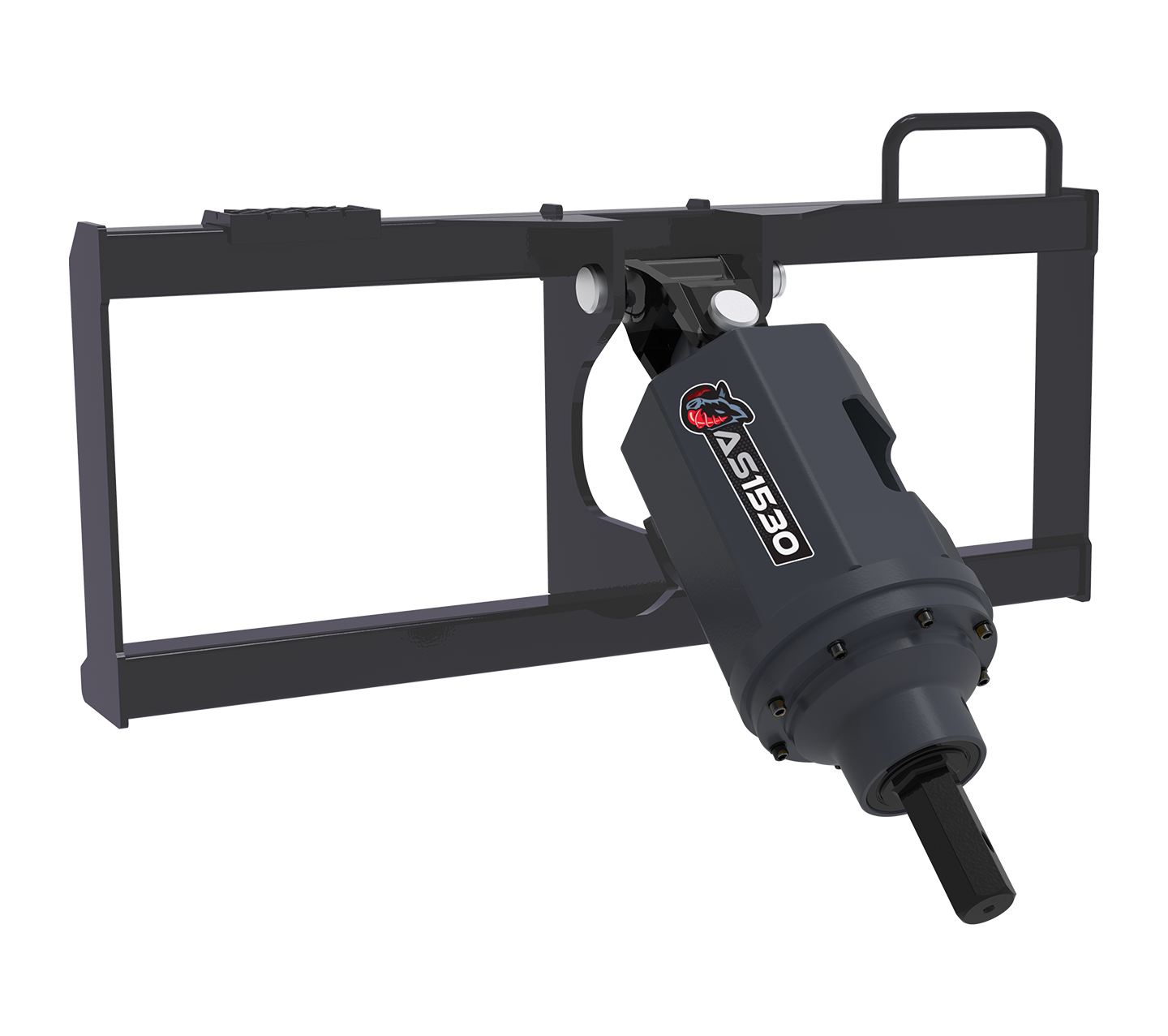

| USH100 | Skid Steer Quick Attach Frame |
| UWH100 | Universal Weld-On Mount |
| 123912 | Swivel Casting |
| H-KIT-96F | Two 1/2" hoses 96" long , flat face couplers |
| H-KIT-96 | Two 1/2" hoses 96" long, 10MB |
