RotoRake PTO

The RotoRake's (Hyd) rotor features up to 25 degrees of angle and 28 degrees of tilt for easy swaling and ditching. Oscillating gauge wheels can be locked in level position. Dual-motor design delivers 40% more torque and eliminates outside bearings and chains.

The RotoRake also features a floating rotor design with road-grade mini carbide teeth, ditch cutters and side shields.

  • Power take-off for your RotoRake unit
  • Drives a pump which drives the rotor motors
  • No chains or sprockets
  • No shear pins or seized slip clutches

RotoRake RR60PTO18G RR72PTO18G RR84PTO18G
Dimensions (WLH) 69 x 63 x 34” 81 x 63 x 34” 93 x 63 x 34”
Working Width 60” 72” 84”
Weight (lbs) 1,350 1,420 1,500
Cont. PSI 3,000 MAX 3,000 MAX 3,000 MAX
PTO Required 540RPM 540RPM 540RPM
Roto Speed 230-450 RPM 230-450 RPM 230-450 RPM
Hyd. GPM Range 18-30 18-30 18-30
Rotor Torque @ 2500 PSI 550 ft-lbs 550 ft-lbs 550 ft-lbs
Mount Type 3PH Cat 1 & 2 3PH Cat 1 & 2 3PH Cat 1 & 2
Gauge Wheels Included 2 2 2

Features

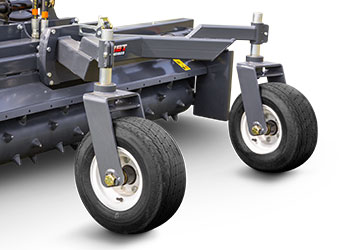

Oscillating Gauge Wheels

Oscillating gauge wheels lock in level position for the (PTO) three point hitch use.

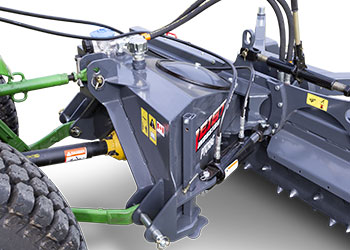

PTO Driven Rotor

Power take-off for your RotoRake unit drives a pump which drives the rotor motors.

Options

Side Cutters

Pin on front or rear depending on desired direction of travel.

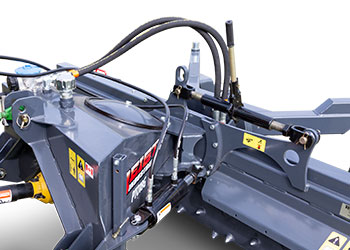

Tilt Cylinder & Hose Kit

  • Used on tractor remotes
  • Requires a second set of remotes

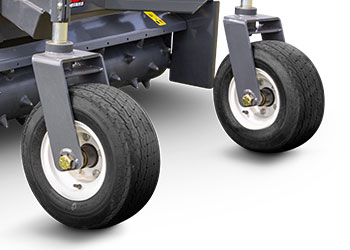

Foam Filled Tires

  • Uses the same tire as air filled
  • Weighs 39 lbs. (24 lbs. heavier than air filled)
  • Tires are sold individually, order correct quantity for your unit
