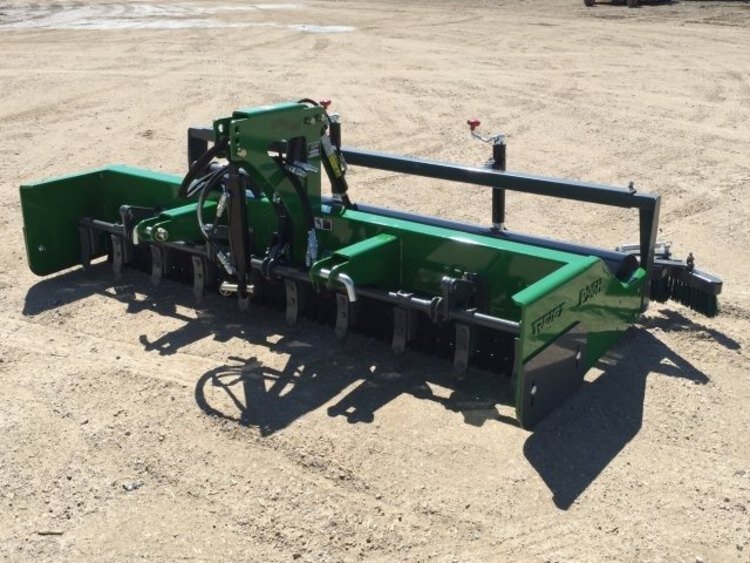

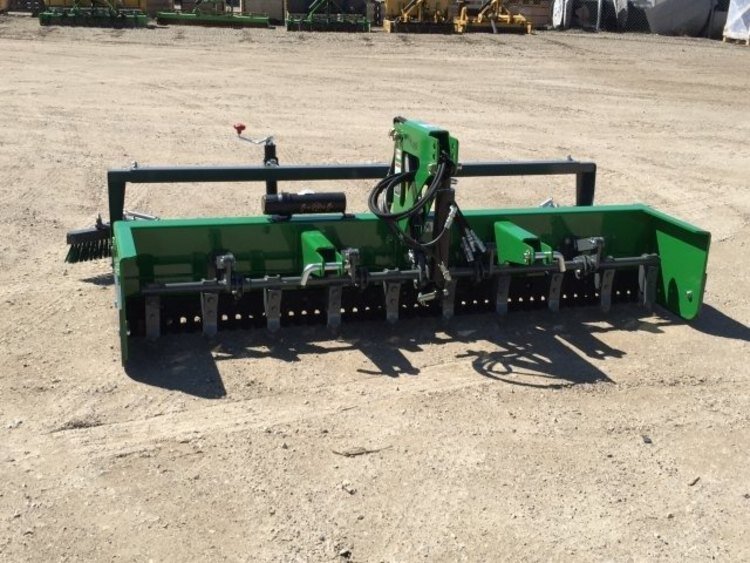

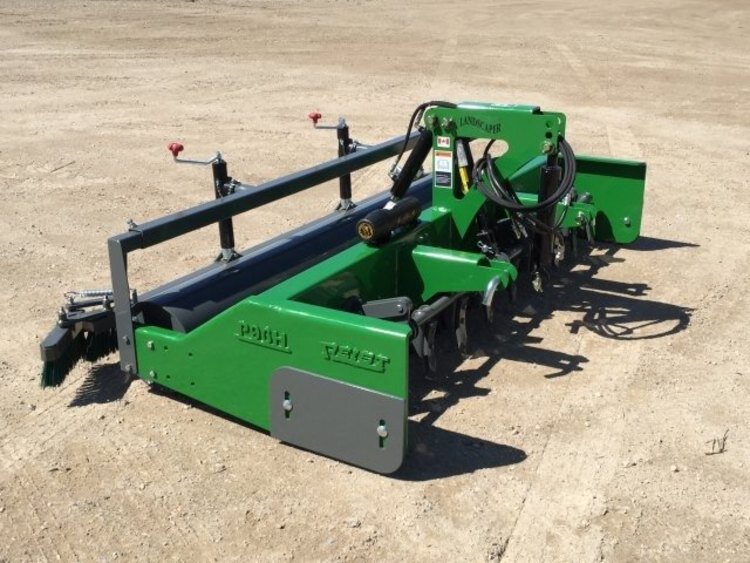

Landscaper (CAT II)
Save Time and Money
The Reist Landscaper does the work of a clodbreaker/ pulverizer, harrow, box grader, ripper and grass seeder. The Landscaper is perfect for golf course builders, commercial landscapers, public works departments, earthscaping, construction sites, or any project requiring grading and reconditioning of a soil or gravel surface. The Landscaper can be used to "finish" an entire site.
- CAT II Hitch
 - 70-120 horsepower

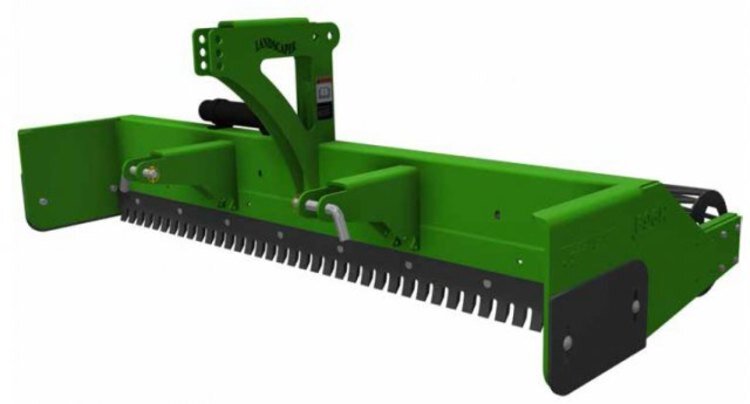

 - Serrated heat-treated grader blade
 - Rear pulverizing roller
 - Adjustable side wear plates
 - 18” high by 17” deep box
 - 1/2” Side plates

| Landscaper CAT II | P96H |
|---|---|
| Dimensions (WLH) | 99 x 46 x 34” |
| Working Width | 96” |
| HP Req. | 70-120 |
| Hitch | CAT II |
| Weight (lbs) | 945 |
| Weight w/ Harrow (lbs) | 1,060 |
| Weight w/ Harrow & Ripper (lbs) | 1,260 |
Options

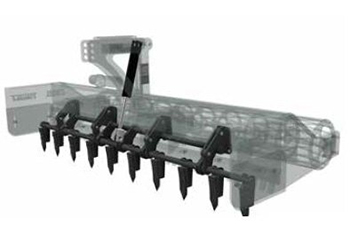

							Ripper
- 1/2” thick x 2” wide bolt-on ripper teeth
 - High-strength, stress-proof ripper bar
 - Manual adjustment from 0 to 5” ripping depth
 - Available widths: 48”, 60”, 72”, 84” and 96”
 - Manual ratchet jack to raise

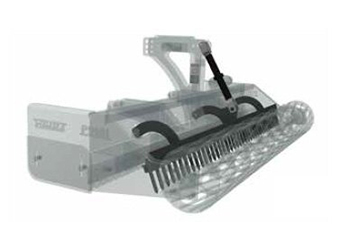

							Harrow
- Hardened 5/8” square teeth spaced at 2 1/2”
 - Removes trash on surface
 - Mixes grass seed into soil with seeder attachment
 - Makes a nice seed bed
 - Manual adjustment from 0-4” deep
 - Manual ratchet jack to raise

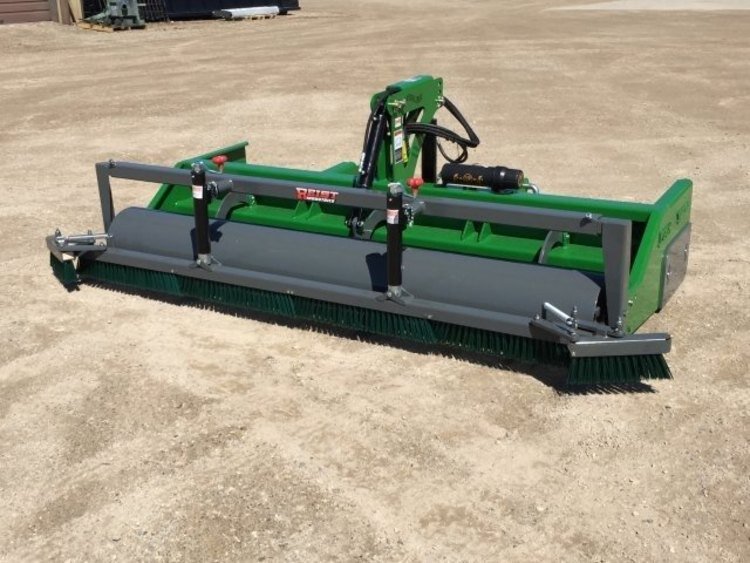

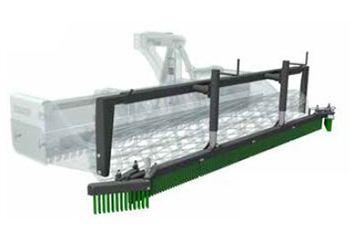

							Rear Brush

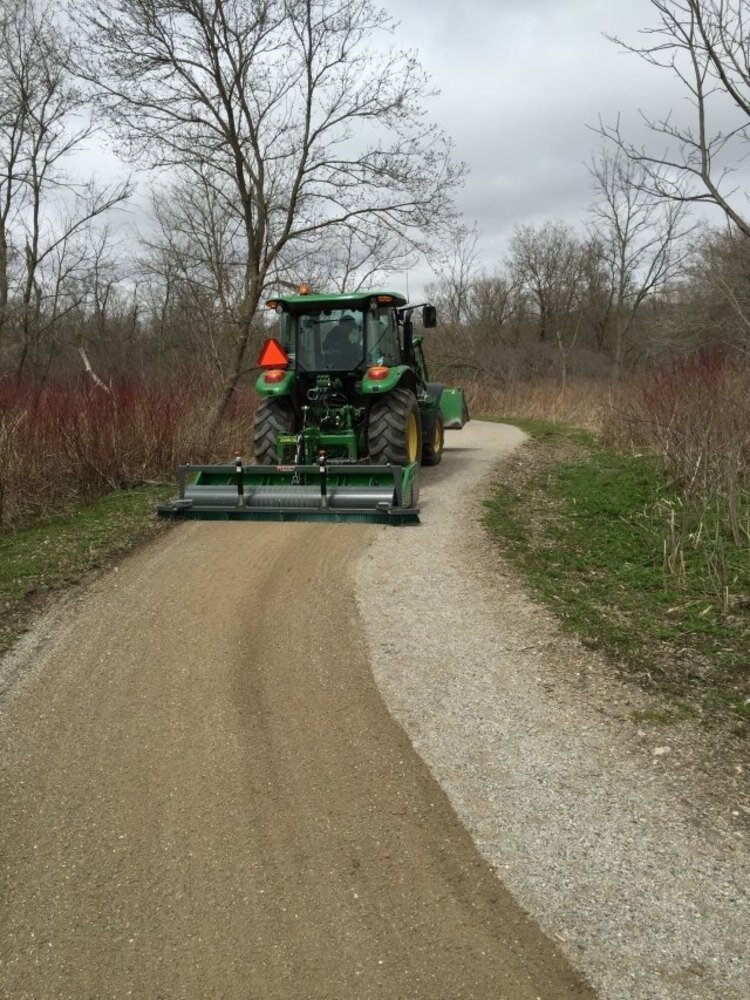

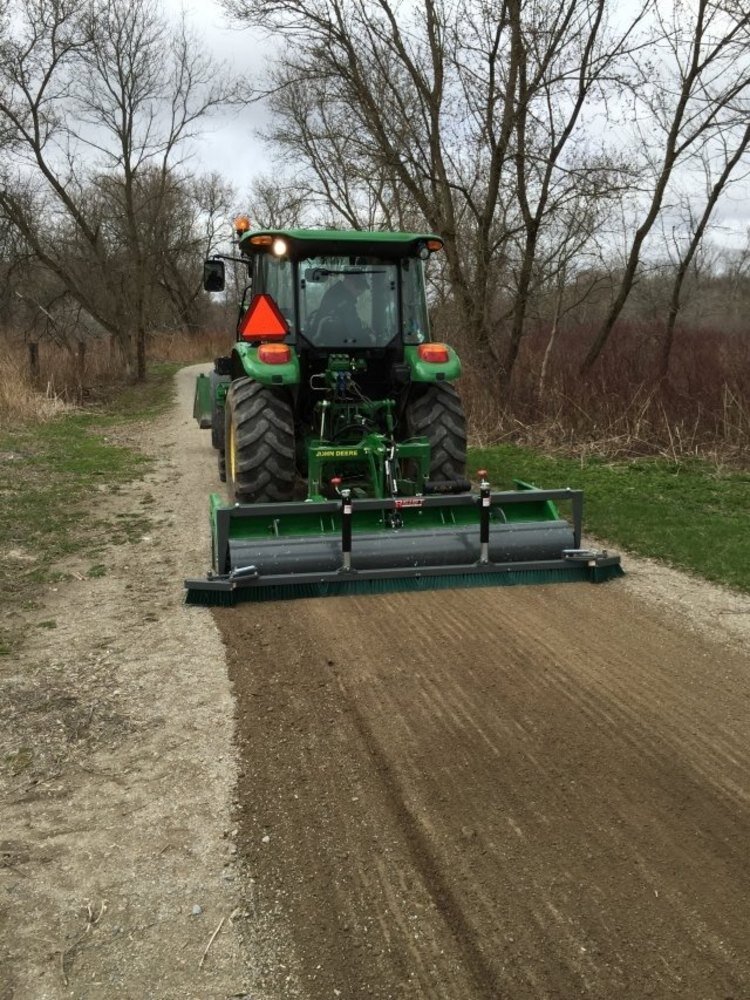

- Brushed finish on walking trails
 - Break-away wings to smooth out side ridges
 - Adjustable brush depth with two top wind jacks
 - Available widths: 48”, 60”, 72”, 84” and 96”
