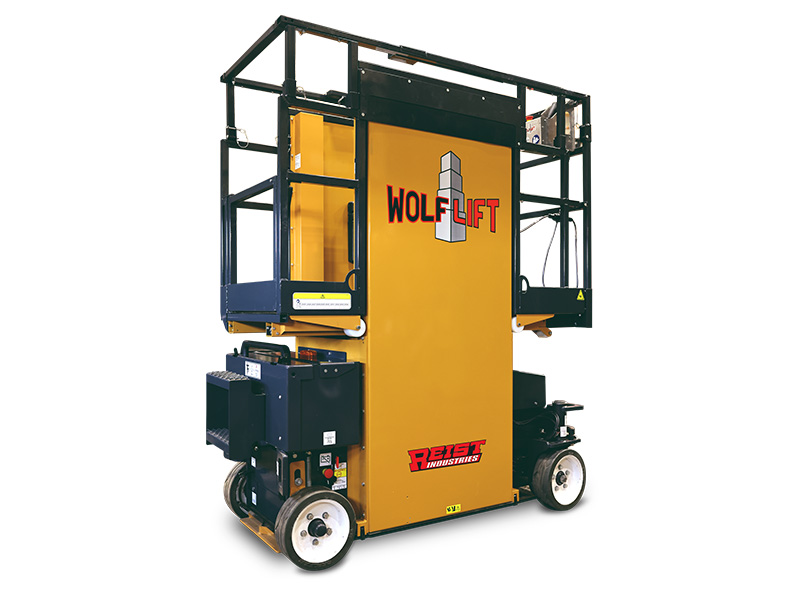

WolfLifT
The WolfLifT is an all-electric aerial work platform that utilizes a 24V electrical system to power both it’s drive and lift functions. Equipped with an onboard charger that takes 110V power, it’s easy to charge the unit on the job site or in the rental house. Designed for indoor applications where oil spills would be disastrous, the WolfLifT eliminates heavy hydraulic systems and chain drives.

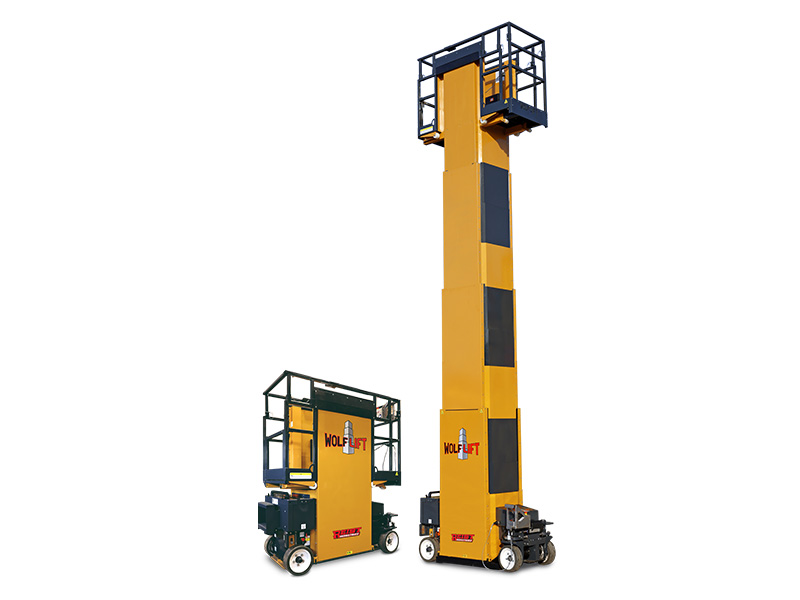

To provide powerful, smooth lift, the WolfLifT uses a rack-and pinion lifting system. Arranged in the corners of each stage, the racks provide a firm base for each lift group as the platform is raised. The patented rack and pinion design in combination with a large cross section and thin walled lift stages gives the WolfLifT work platform unparalleled stability with minimum machine weight. Creating an easy to transport unit that provides increased comfort and security for those working at elevated heights.
- Zero turn radius front-wheel drive
- 3 drive speeds

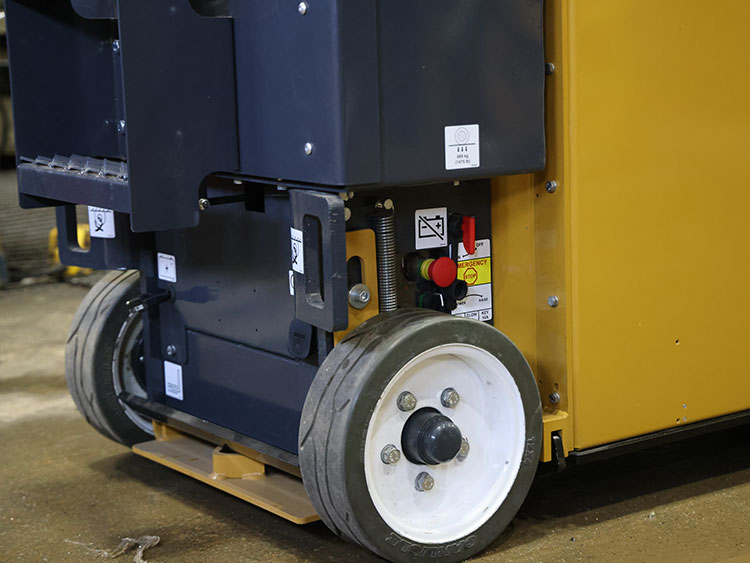

- Slide out acccess battery box
- Brushless DC motors
- 2 Person 650 lbs. capacity
- Folding railings

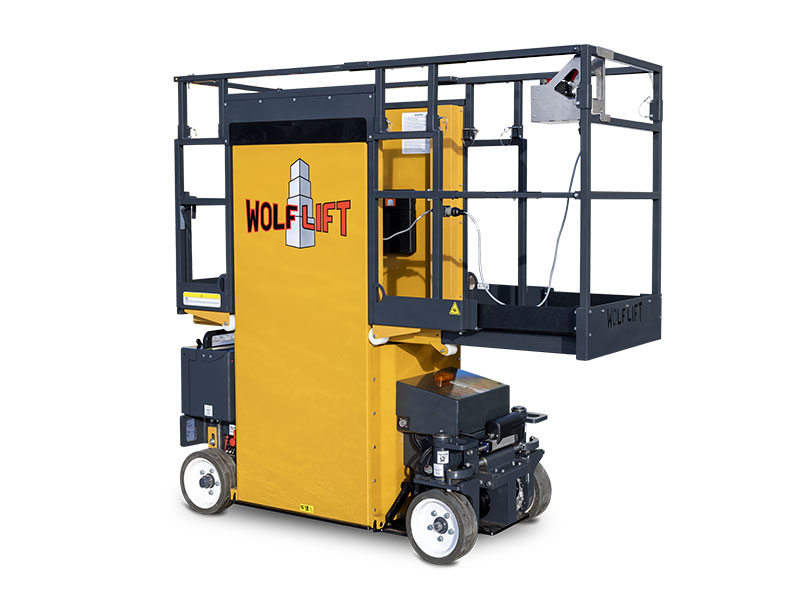

- 20" Aluminum Pull Out Platform Extension
| WolfLifT (WL3020) | Imperial | Metric |
|---|---|---|
| Elevated Platform Height | 19 ft. 7 in. | 5.97 m |
| Stowed Length (without steps) | 67 in. | 1.7 m |
| Overall Width | 30 in. | 0.76 m |
| Overall Stowed Height | 82 in. | 2.08 m |
| Stowed Platform Entry Height | 39 in. | 0.99 m |
| Ground Clearance (with platform down) | 2.75 in. | 69.85 mm |
| Platform Length (with ext. deck retracted) | 67 in. | 1.7 m |
| Extension Deck Length | 20 in. | 0.50 m |
| Tire Size | 12x4x8 | |
| Overall Machine Weight | 2,950 lbs. | 1,338 kg |
| Floor Loading (with rated load) | 149 lbs/sq in. | 10.5 kg/sq cm |
| Total Platform Lift Capacity (2 Persons) | 650 lbs. | 295 kg |
| Extension Deck Capacity | 250 lbs. | 113 kg |
| Drive Speed - Stowed | 3.4 mph | 5.4 Km/hr |
| Drive Speed - Elevated | .75 mph | 1.2 Km/hr |
| Gradeability | 25% | |
| Lift Time (with rated load) | 22 sec. | |
| Lower Time (with rated load) | 22 sec. | |
Features

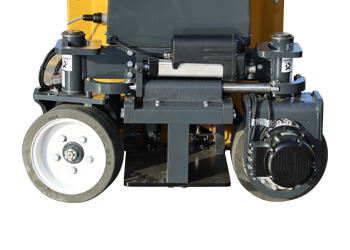

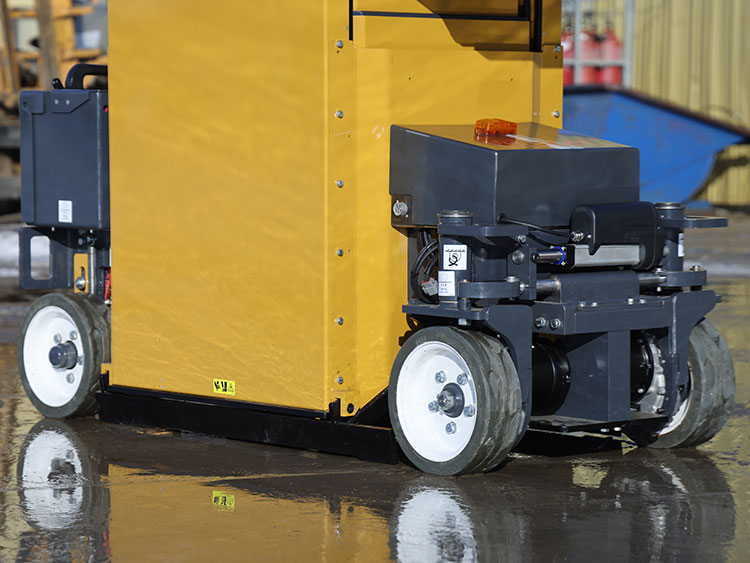

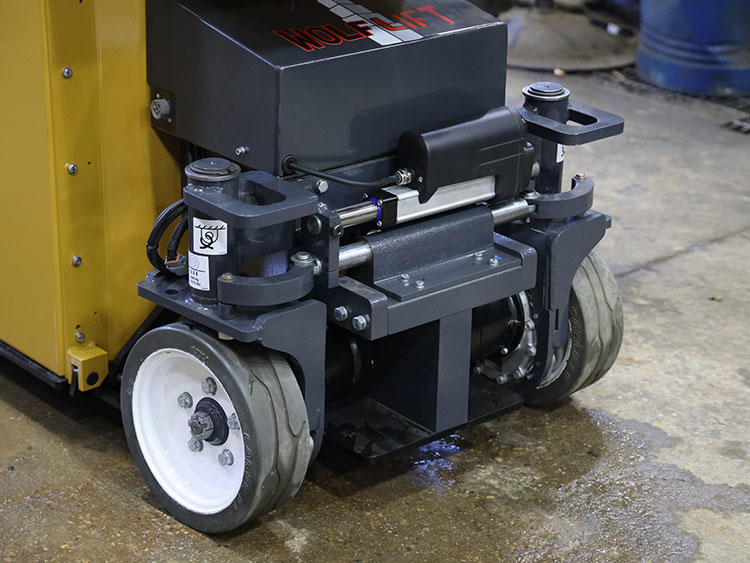

Zero-Turn Front Wheel Drive
Zero-turn-radius front-wheel drive ensures precise maneuverability in confined spaces.
3 Drive Speeds

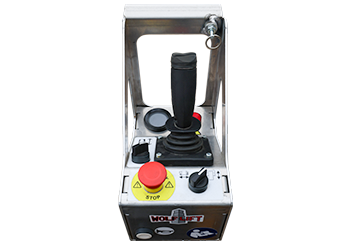

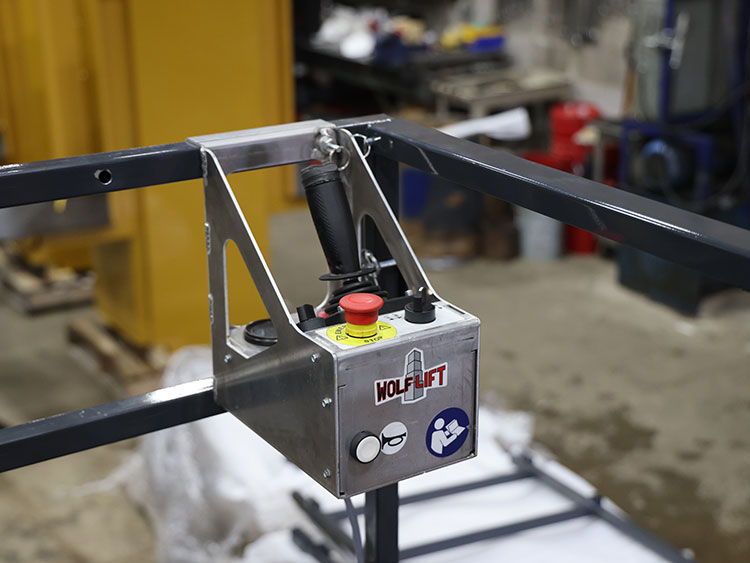

Operators enjoy smooth, responsive handling through three selectable drive speeds and a proportional joystick, maintaining confidence from ground to platform.

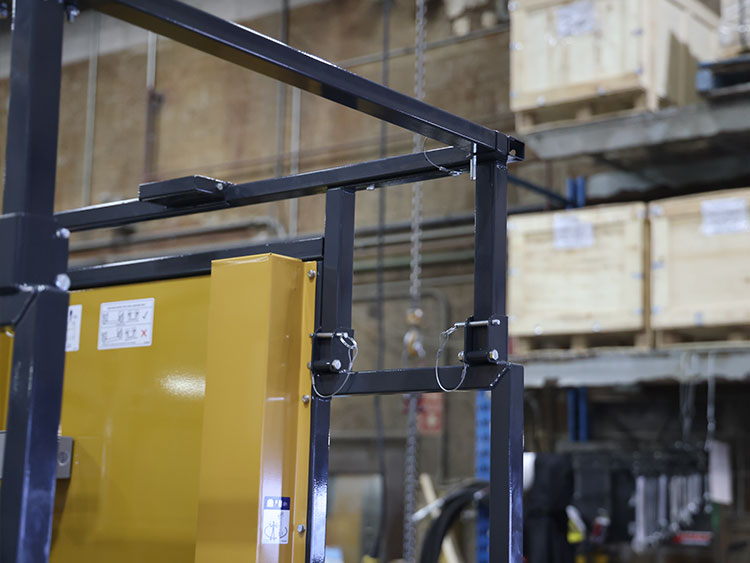

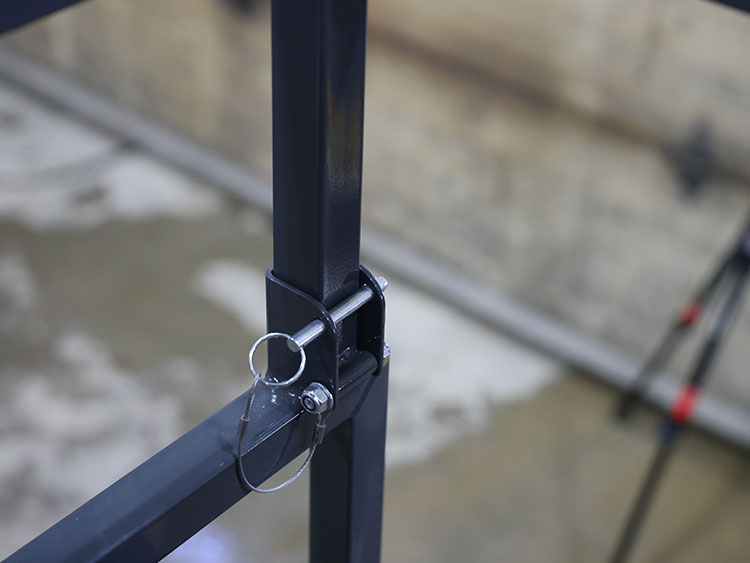

Folding Railings
Allows the unit to drive through a standard door
Diagnostics
The WolfLifT is equipped with Bluetooth connectivity to provide service and system diagnostics.
