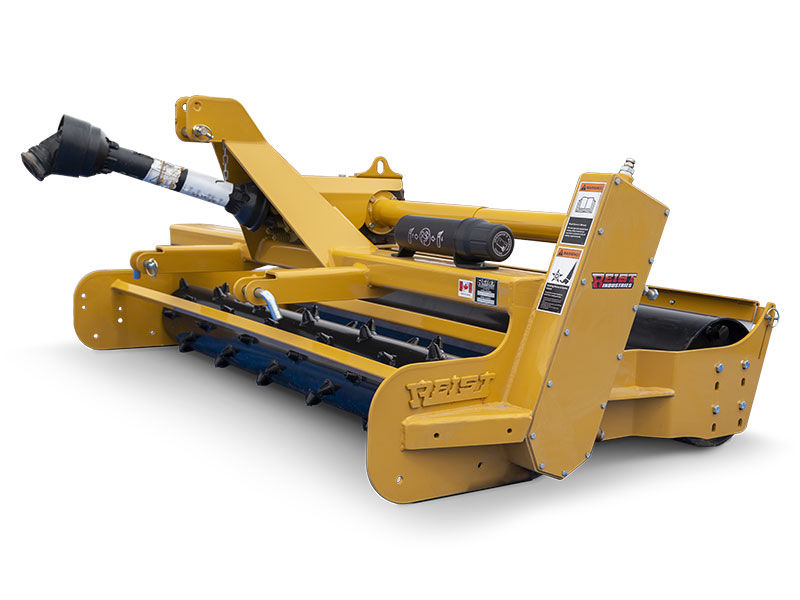

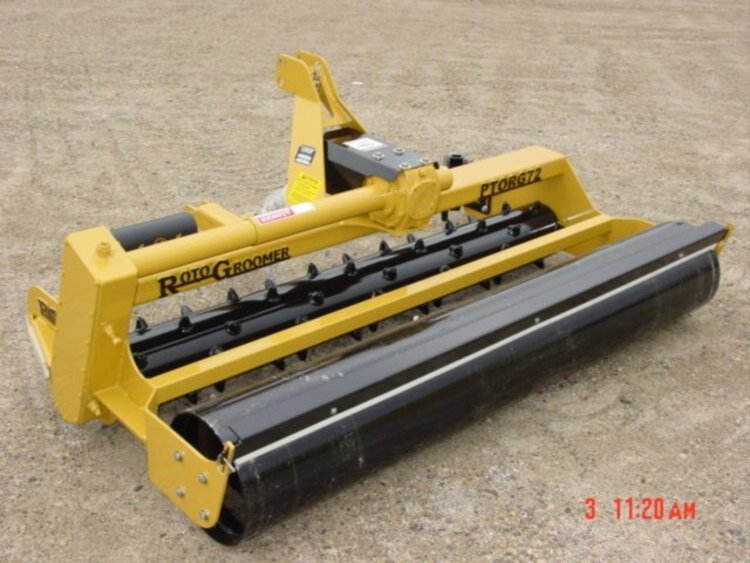

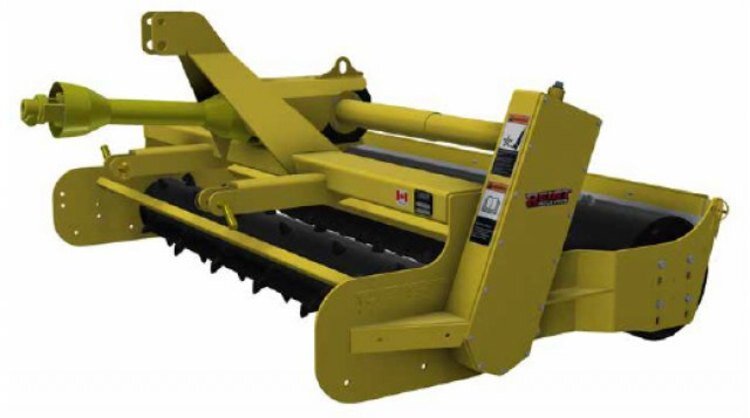

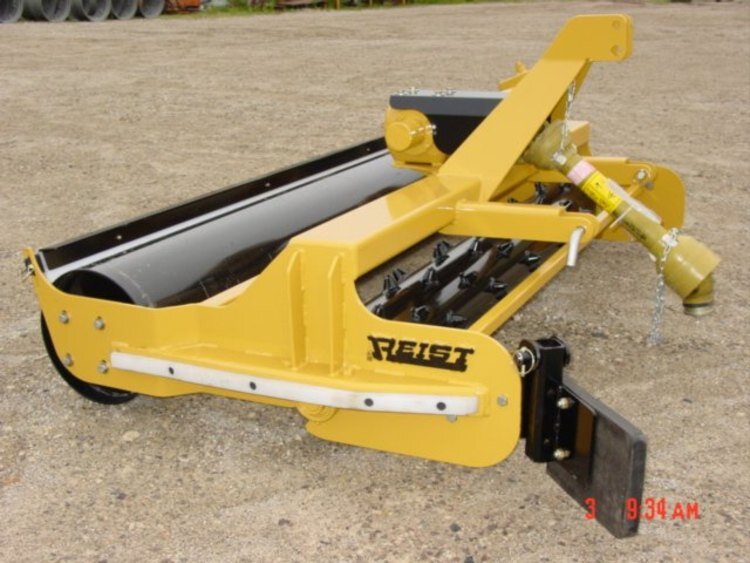

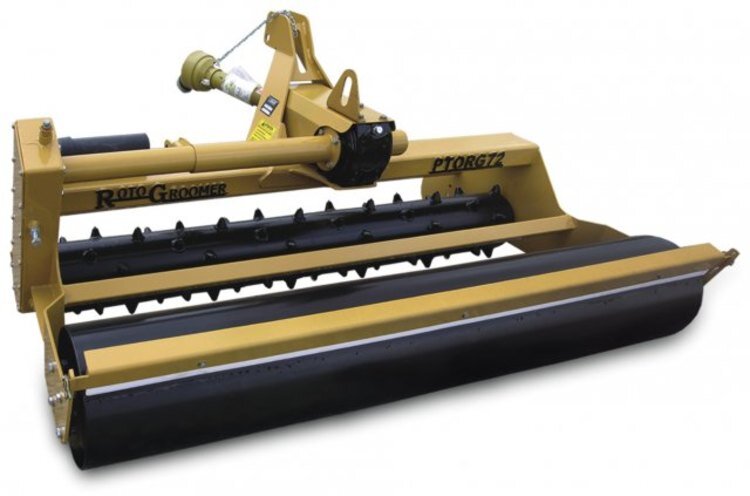

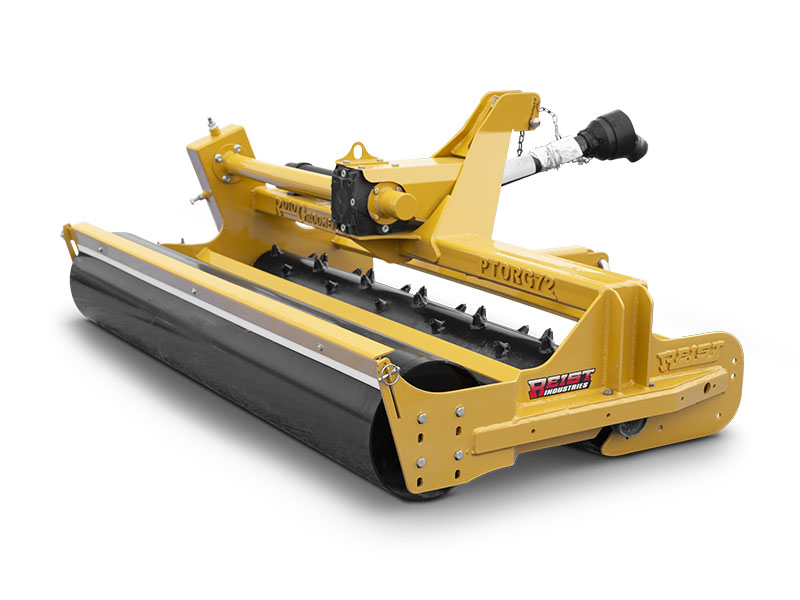

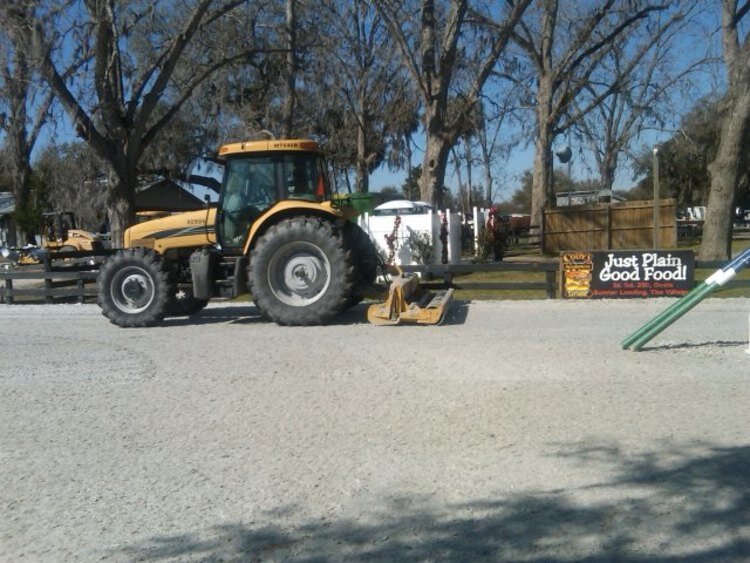

RotoGroomer

The Multi-Groomer Pony is designed to tow behind UTV’s or mount to 3PH on small utility tractors. It renovates and conditions conventional and synthetic footings on horse-riding arenas. The unique design features side rub rails and an aggressive double row of ripper teeth offset with 4" spacing. The rear two rows of spring tines are offset and the pitch and height can be adjusted with a manual ratchet jack or an optional hydraulic cylinder. The spring tines give an ultimate mixing effect of the surface. The rear bar roller pulverizes and packs to the desired density, leaving an attractive patterned finish.

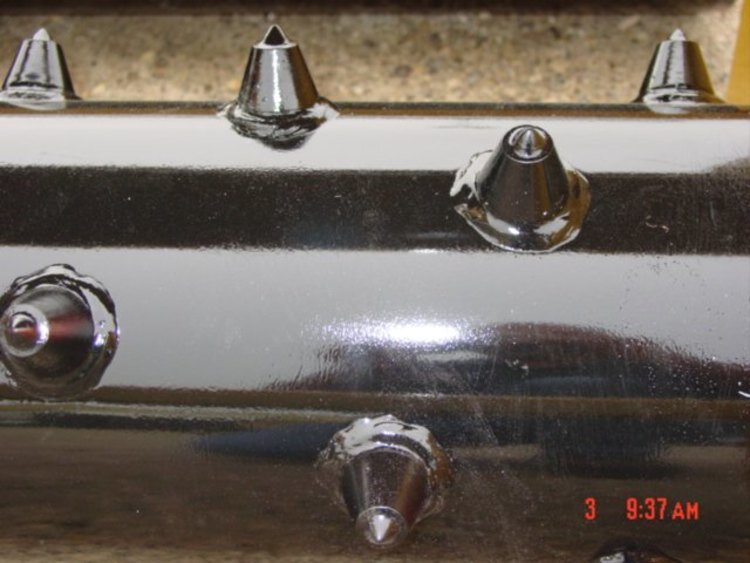

  • Carbide toothed single direction drive rotor
  • P.T.O. Driven 540 RPM with slip clutch protection

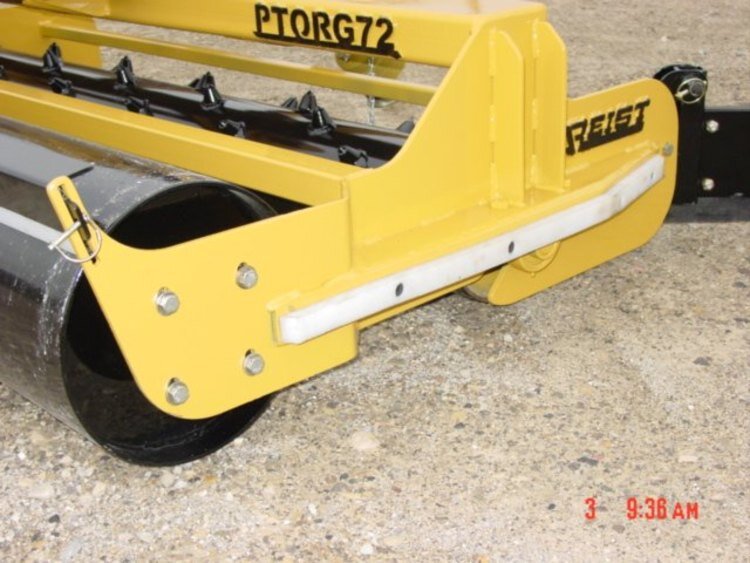

  • 12" rear smooth packing roll with self-adjusting scraper
  • Water can be added to rear packer roll for extra weight

Models PTORG72 PTORG96
HP 20-80 40-80
Working Width 72" 96"
Height 30" 30"
Weight 800 lbs. 1000 lbs.
Hitch CAT I CAT II
Drum Speed 200 RPM. 200 RPM

Options

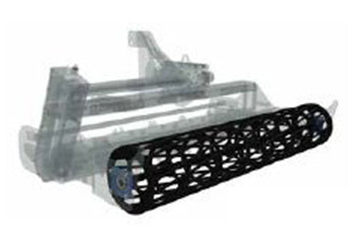

Pulverizer Roller

  • Replaces smooth packer roller for a patterned finish

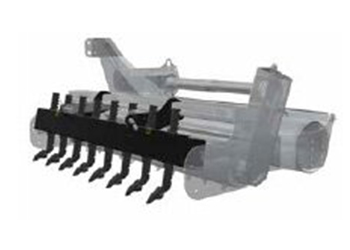

Ripper Bar

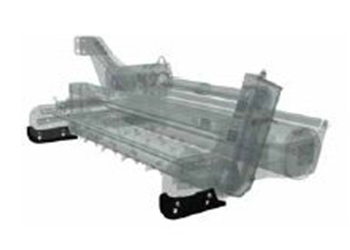

Floating Spill Shield Kit

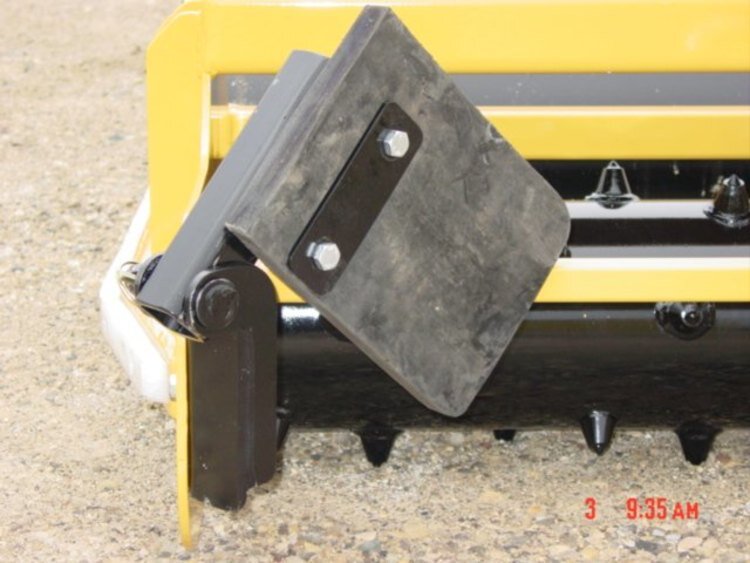

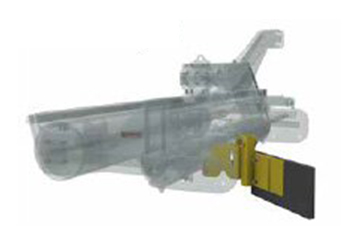

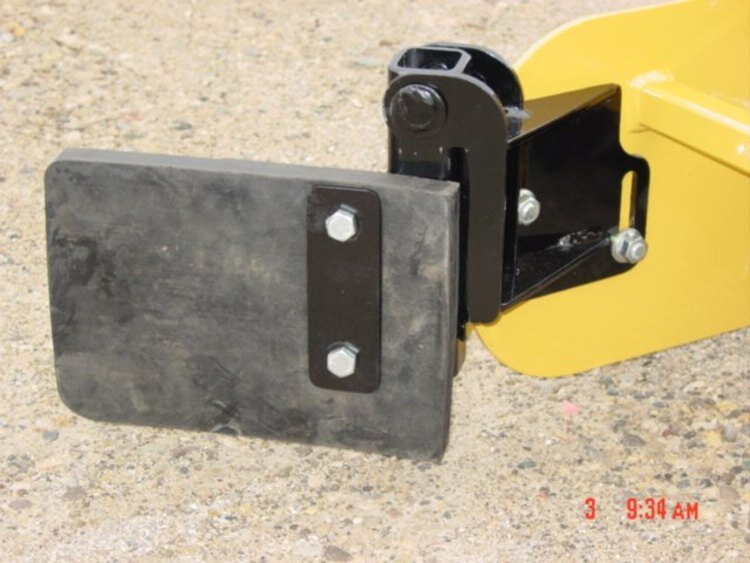

Board Scraper

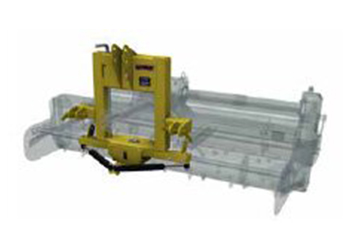

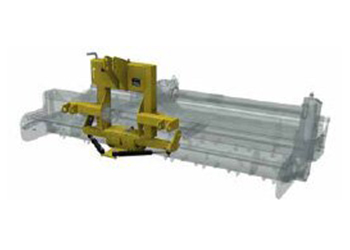

Swivel Hitch (CAT I)

  • Turns 22° each way
  • Unique self-straightening feature when 3PH is raised
  • Lock pin for hard and tough footings

Swivel Hitch (CAT II)

  • Turns 22° each way
  • Unique self-straightening feature when 3PH is raised
  • Lock pin for hard and tough footings
