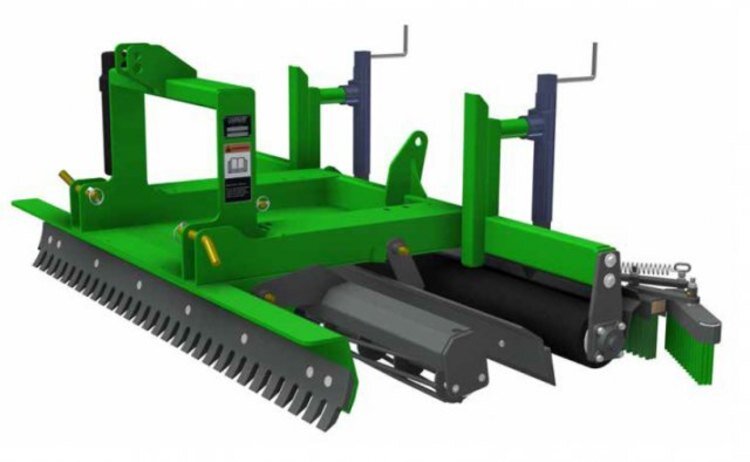

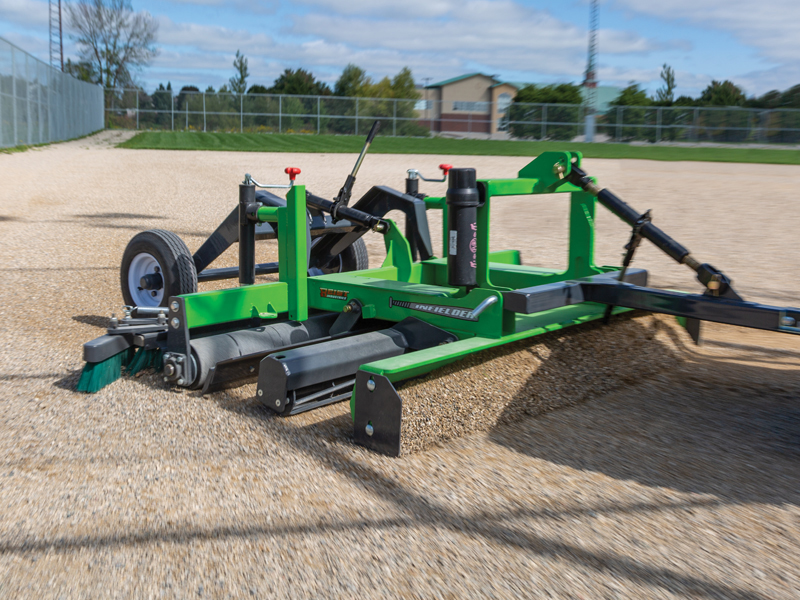

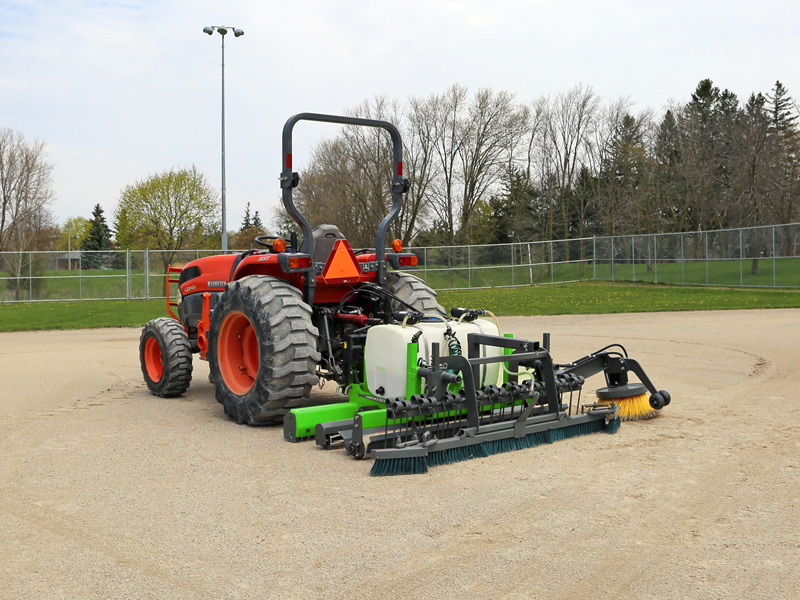

Reist In-Fielder D-72

A Heavy Duty Time Saving Ball Diamond Groomer

Operators without special training can operate the Reist In-Fielder and condition a hard, uneven baseball diamond into a smooth and level playing surface. The In-Fielder is extremely simple to operate because it has only two adjustments: the cutting depth of the grader blade and the brush height adjustment.

  • Heavy duty bolt-on serrated grader blade
  • Floating clod-breaking pulverizer roller
  • Heavy duty floating leveling bar
  • Floating rear brush with side bumpers
  • Broom and rake holders
  • Adjustable rear brush
  • Lubed pivots

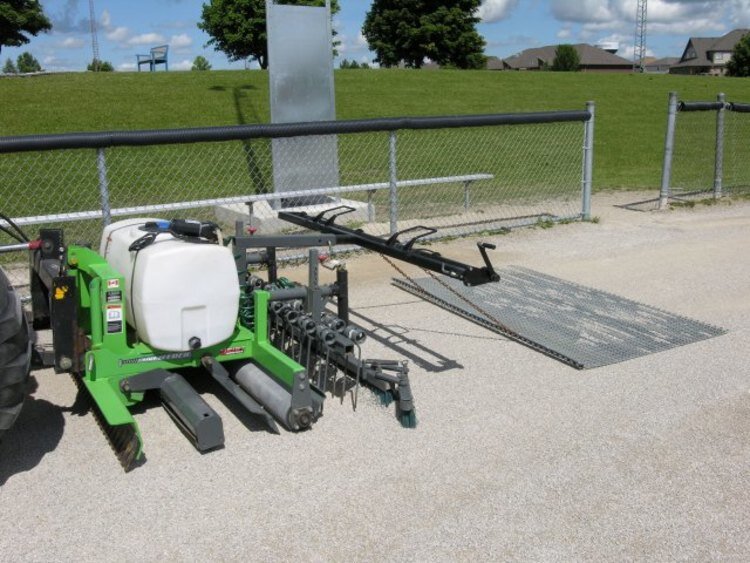

In-Fielder D72
Dimensions (WLH) 80 x 48 x 32”
Width 72”
Hitch CAT I
Weight (Ibs) 835
Pulverizer Roller 5”
Packer Roller 6” x 12” UHMW Rolls

Options

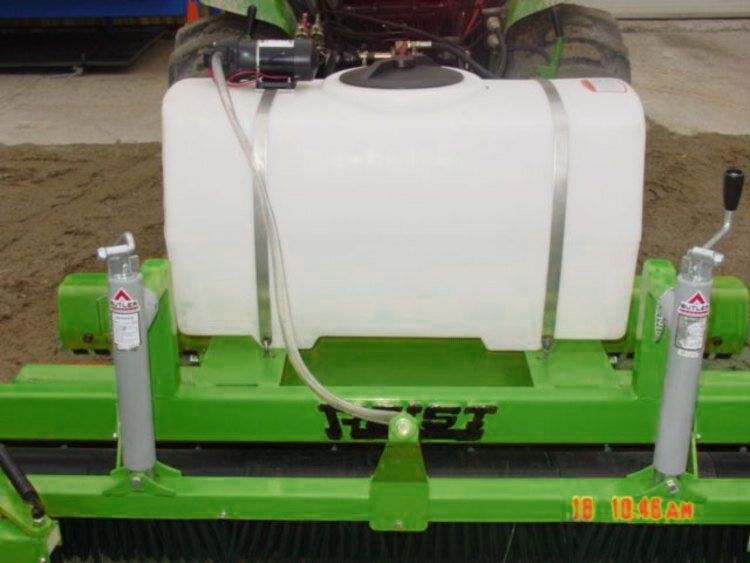

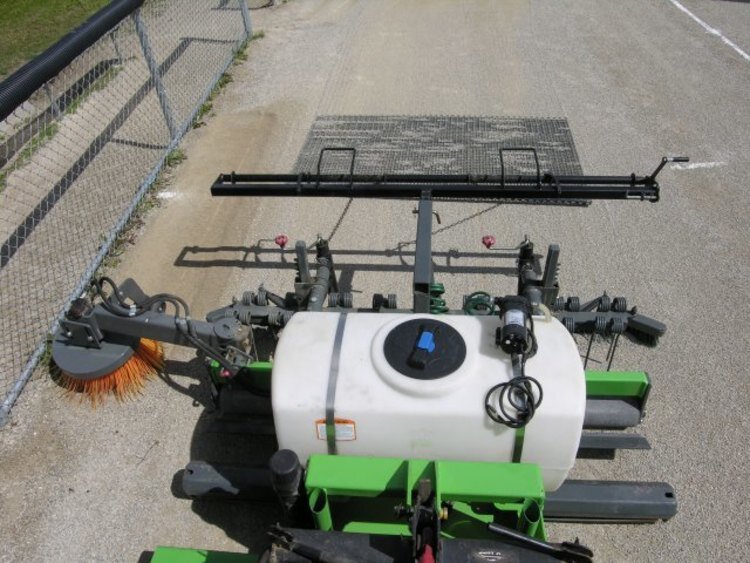

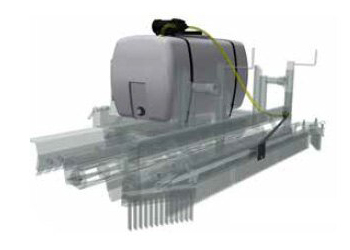

Water Tank

  • 50 gallon capacity
  • 12V pump and nozzle

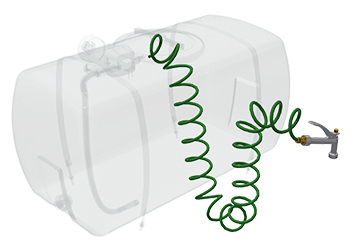

Hand Wand Kit

  • Hand wand kit for easy spraying

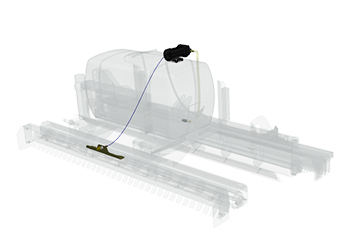

Front Nozzle Kit

  • For dust suppression
  • Front nozzle, switch and pump

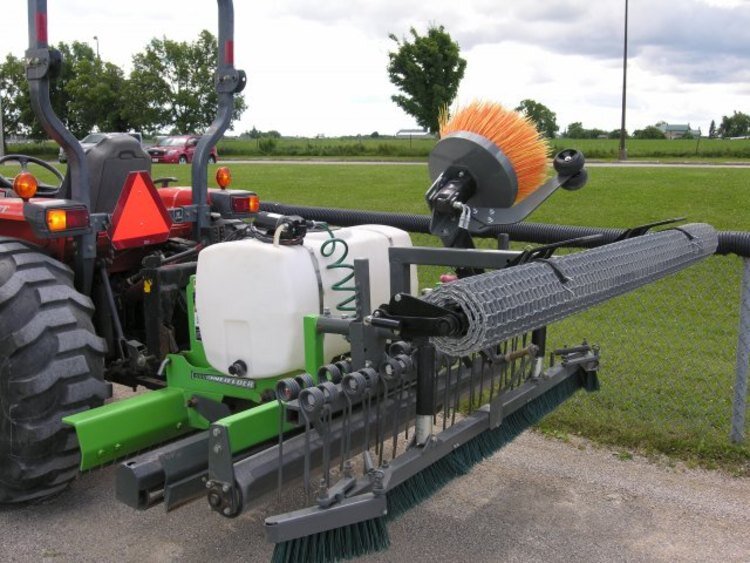

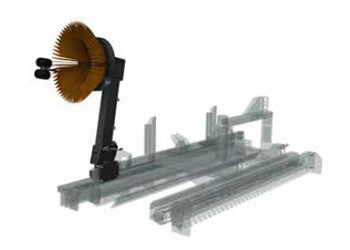

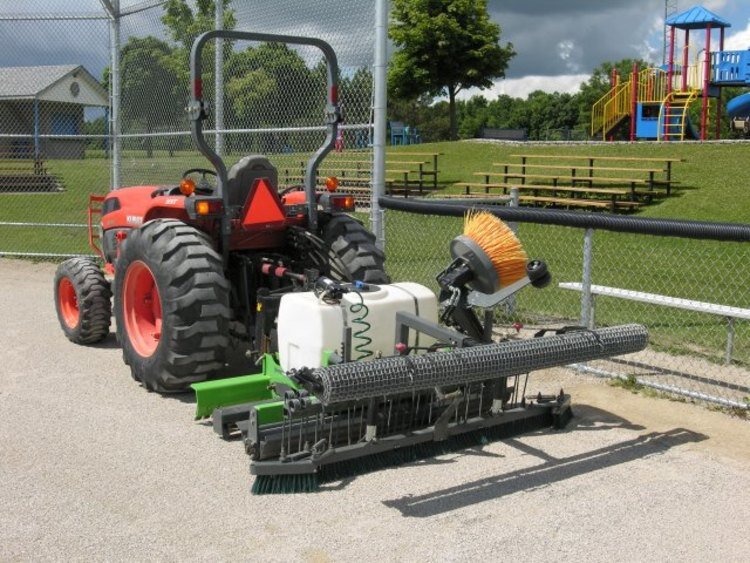

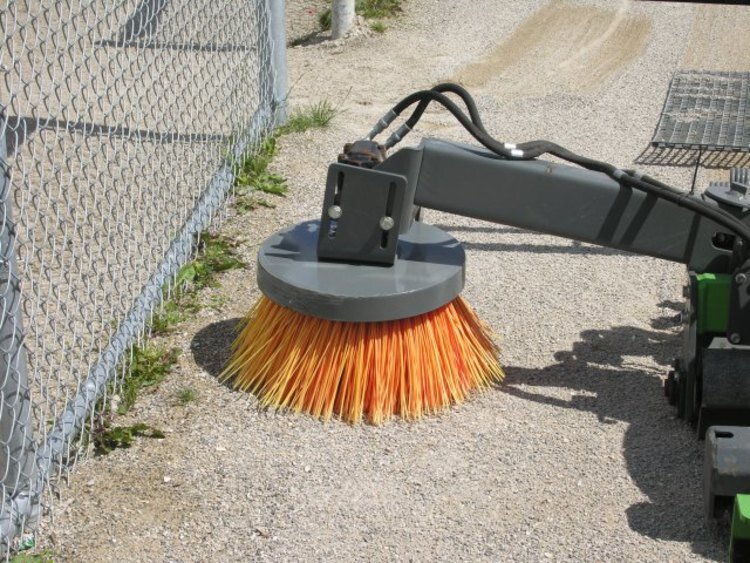

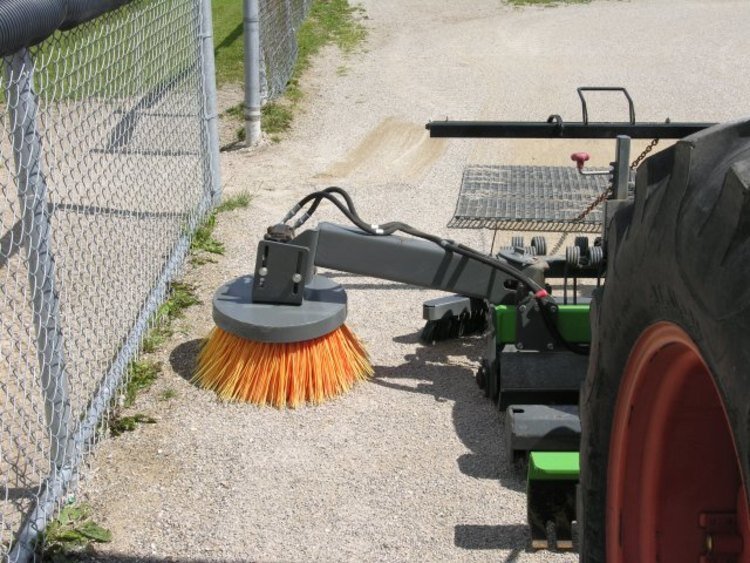

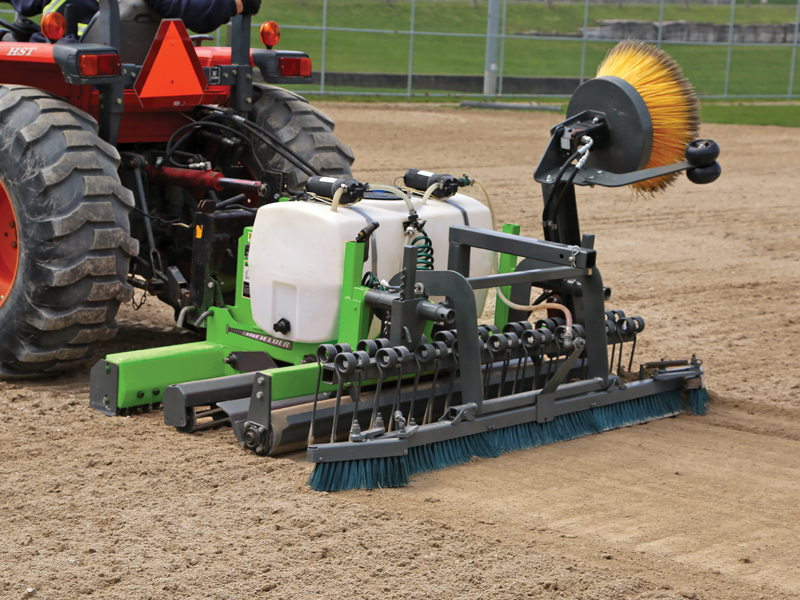

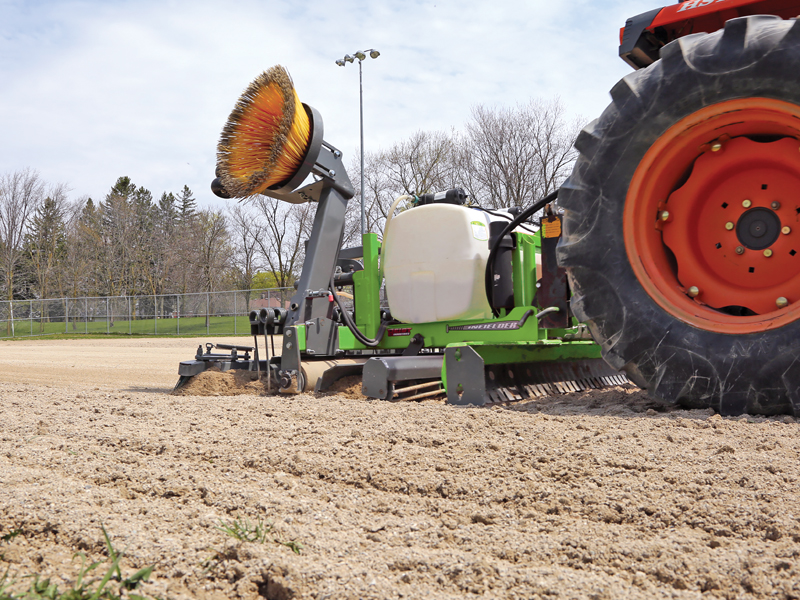

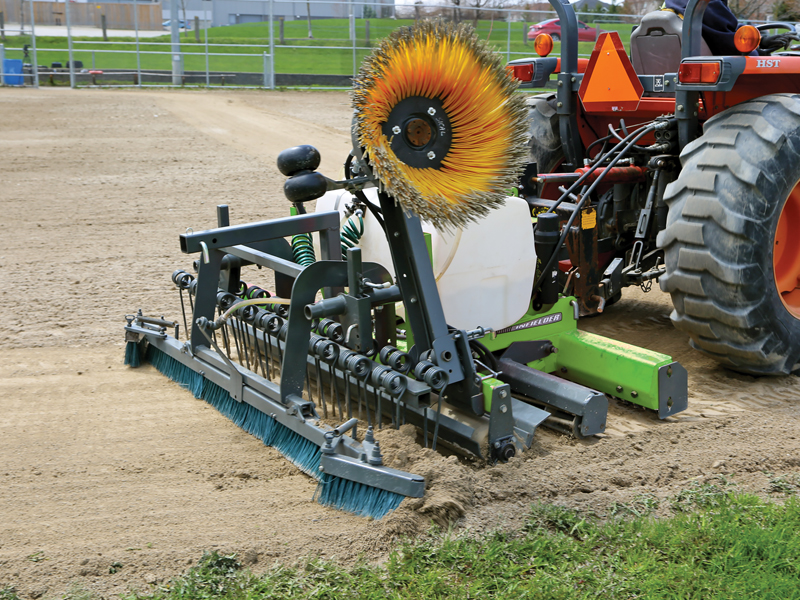

Rotary Sweeper

  • 20” diameter nylon bristle brush with spring loaded break-away arm
  • Hydraulic-driven
  • Adjustable gauge wheel
  • Sweep material off grass and away from fence
  • Prevent out field ridge

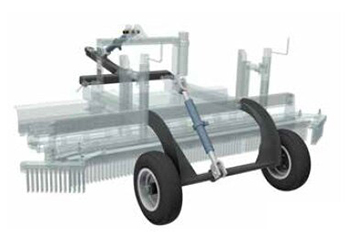

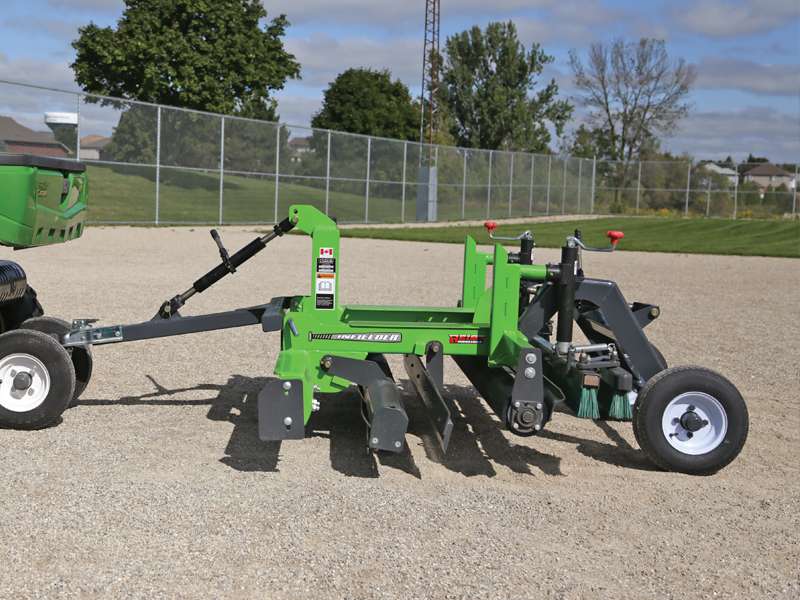

Tow Kit with Wheels

  • Tow kit to tow In-Fielder

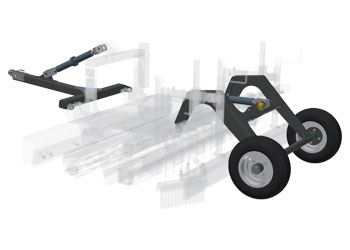

Tow Kit Extended

  • Tow kit to tow D72 In-Fielder with long tine harrow option

Electric Actuator

  • 100mm Stroke

Hydraulic Top Link

  • Available for CAT I & CAT II
  • Available in 8”, 10” and 14” stroke lengths

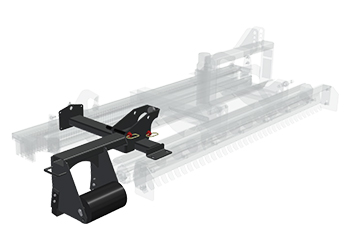

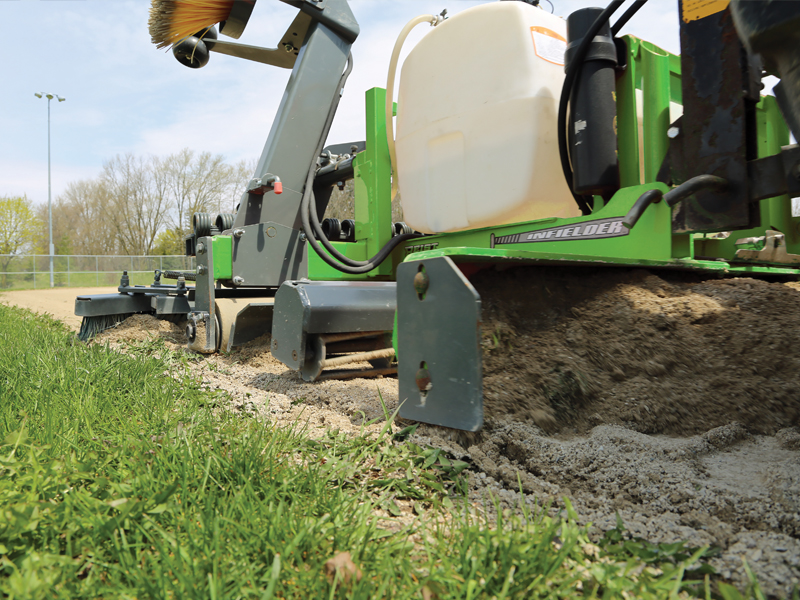

Edger

  • Get the perfect edge

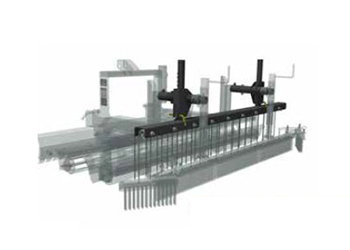

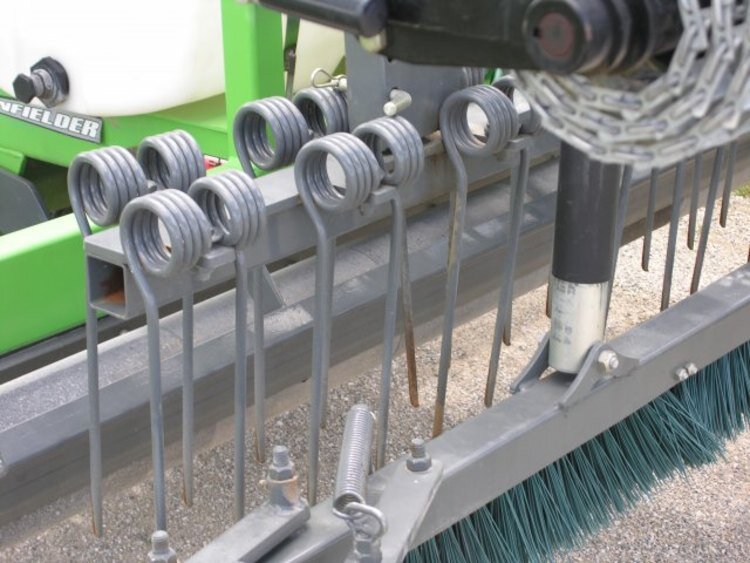

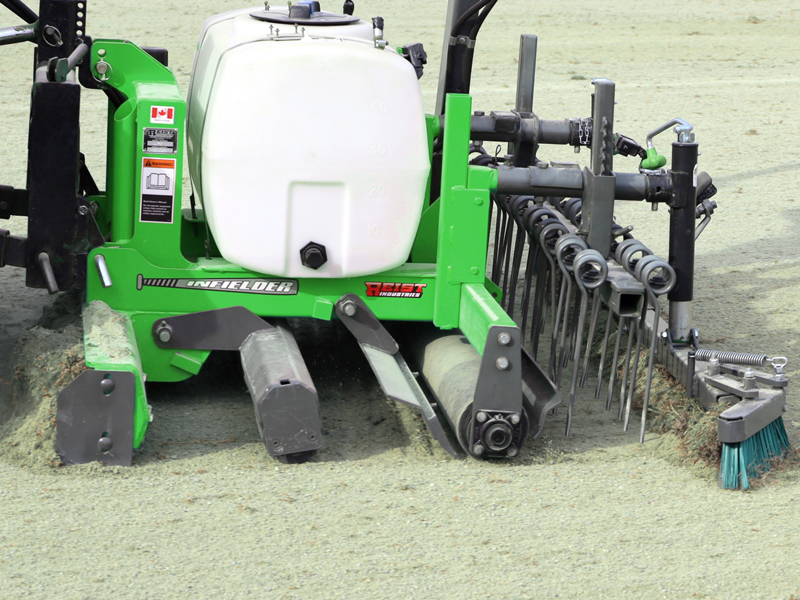

Rear Long Tine Harrow

  • 14" long x 3/8" spring tines
  • Loosen up hard-packed surfaces, which helps to dry the soil quicker

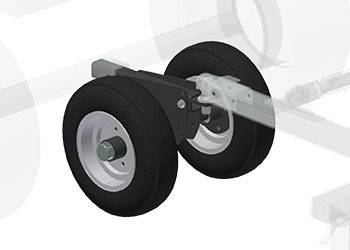

Sulky

  • Sulky fits between the UTV or ATV and the Infielder
  • Required for UTVs or ATVs where the hitch moves with the suspension
  • Keeps the Infielder level
  • Sulky fits into a 2” receiver
  • 21” wide x 20” long x 16” high
  • 45 lbs. weight
